Product details

RI70 KV95

Motion control and actuation

Nanchang Kude Intelligent Technology Co., Ltd.

RI70 KV95

About this product

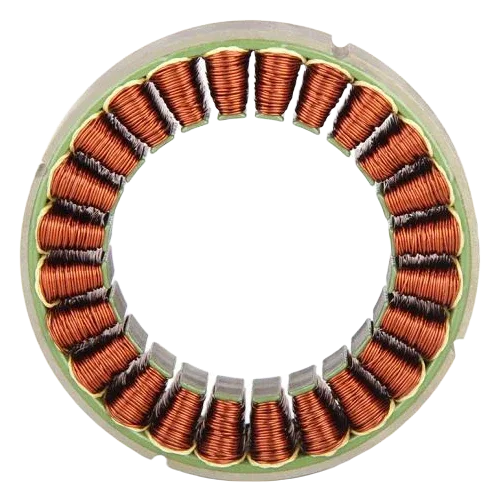

RI70 KV95 is a frameless inrunner torque motor in the CubeMars RI portfolio. The manufacturer lists rated voltage 24/36/48 V, no load speed 1956/2934/3912 rpm, rated torque 0.94 Nm, mass 270.4 g.

Model
RI70 KV95
Category
Motion control and actuation, Motors & Drives, Components

Product family: CubeMars RI

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Electrical time constant

1.49 ms

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Peak Current(ADC) 21 Electrical Time Constant(ms) 1.49

Electric parameters

Electric Parameters

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Electric Parameters

Inertia

92.15 gc㎡

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Rated Speed(rpm) 1270/1990/2710 Inertia(gc㎡) 92.15

Ke

11.69 V/krpm

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Rated Voltage(V) 24/36/48 Ke(V/krpm) 11.69

Km

0.2011 Nm/√W

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Rated Current(ADC) 7.1 Km(Nm/√W) 0.2011

Kt

0.13 Nm/A

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Kt(Nm/A) 0.130 Maximum Torque Weight Ratio(Nm/Kg) 9.91

Kv

95 rpm/V

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Kv(rpm/V) 95 Weight(g) 270.4

Mass

270.4 g

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Kv(rpm/V) 95 Weight(g) 270.4

Maximum torque weight ratio

9.91 Nm/Kg

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Kt(Nm/A) 0.130 Maximum Torque Weight Ratio(Nm/Kg) 9.91

Mechanical time constant

0.23 ms

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Peak Torque(Nm) 2.68 Mechanical Time Constant(ms) 0.23

No load speed

1956/2934/3912 rpm

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
No-Load Speed(rpm) 1956/2934/3912 Phase To Phase Resistance(mΩ) 418

Peak current

21 ADC

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Peak Current(ADC) 21 Electrical Time Constant(ms) 1.49

Peak torque

2.68 Nm

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Peak Torque(Nm) 2.68 Mechanical Time Constant(ms) 0.23

Phase to phase inductace

622.7 μH

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Rated Torque(Nm) 0.94 Phase To Phase Inductace(μH) 622.7

Phase to phase resistance

418 mΩ

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
No-Load Speed(rpm) 1956/2934/3912 Phase To Phase Resistance(mΩ) 418

Rated current

7.1 ADC

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Rated Current(ADC) 7.1 Km(Nm/√W) 0.2011

Rated speed

1270/1990/2710 rpm

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Rated Speed(rpm) 1270/1990/2710 Inertia(gc㎡) 92.15

Rated torque

0.94 Nm

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Rated Torque(Nm) 0.94 Phase To Phase Inductace(μH) 622.7

Rated voltage

24/36/48 V

Manufacturer specification

Manufacturer core-data table for RI70 KV95; slash-separated values preserve the listed voltage/configuration order.

RI70 KV95 Frameless Inrunner Torque Motor - Flexible Integration
Rated Voltage(V) 24/36/48 Ke(V/krpm) 11.69
