Product details

DaBai Pro

Sensors and machine vision

Orbbec Inc.

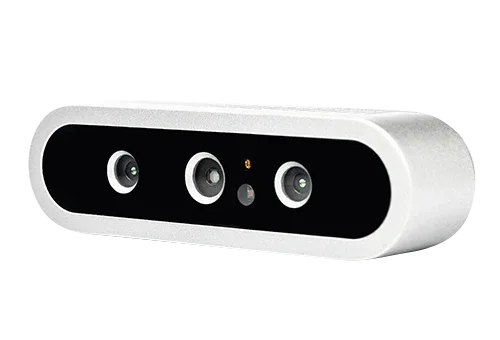

DaBai Pro

About this product

DaBai Pro is an active-stereo structured-light camera for service-robot perception, obstacle avoidance and navigation. Its Orbbec ASIC supplies depth and point-cloud data over USB. The manufacturer documents mass-production deployment and integration with the Horizon X3 robot development platform.

Model
DaBai Pro
Category
Sensors and machine vision, Components
Product stage
Discontinued

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data interface

USB

Manufacturer specification

Configuration: Manufacturer exact-model specification

奥比中光与地平线强强联手,引领机器人3D视觉感知核心应用开发
Dabai Pro深度图像输出分辨率为640*400@30fps,具备毫米级检测精度,工作距离为0.3m-3m,有效深度视场角为H 67.9°、V 45.3°,能够提供完整的深度和点云信息。Dabai Pro平均功耗低于1.5W,配备标准USB数据接口,不同环境下的深度质量稳定,安全可靠,已在不同类型的服务机器人上实现规模量产落地。

Depth fov

H67.9° V45.3°

Manufacturer specification

Configuration: Manufacturer exact-model specification

奥比中光与地平线强强联手,引领机器人3D视觉感知核心应用开发
Dabai Pro深度图像输出分辨率为640*400@30fps,具备毫米级检测精度,工作距离为0.3m-3m,有效深度视场角为H 67.9°、V 45.3°,能够提供完整的深度和点云信息。Dabai Pro平均功耗低于1.5W,配备标准USB数据接口,不同环境下的深度质量稳定,安全可靠,已在不同类型的服务机器人上实现规模量产落地。

Depth range

0.3–3 m

Manufacturer specification

Configuration: Manufacturer exact-model specification

奥比中光与地平线强强联手,引领机器人3D视觉感知核心应用开发
Dabai Pro深度图像输出分辨率为640*400@30fps,具备毫米级检测精度,工作距离为0.3m-3m,有效深度视场角为H 67.9°、V 45.3°,能够提供完整的深度和点云信息。Dabai Pro平均功耗低于1.5W,配备标准USB数据接口,不同环境下的深度质量稳定,安全可靠,已在不同类型的服务机器人上实现规模量产落地。

Depth resolution fps

640×400 at 30 fps

Manufacturer specification

Configuration: Manufacturer exact-model specification

奥比中光与地平线强强联手,引领机器人3D视觉感知核心应用开发
Dabai Pro深度图像输出分辨率为640*400@30fps,具备毫米级检测精度,工作距离为0.3m-3m,有效深度视场角为H 67.9°、V 45.3°,能够提供完整的深度和点云信息。Dabai Pro平均功耗低于1.5W,配备标准USB数据接口,不同环境下的深度质量稳定,安全可靠,已在不同类型的服务机器人上实现规模量产落地。

Power consumption

Average <1.5 W

Manufacturer specification

Configuration: Manufacturer exact-model specification

奥比中光与地平线强强联手,引领机器人3D视觉感知核心应用开发
Dabai Pro深度图像输出分辨率为640*400@30fps,具备毫米级检测精度,工作距离为0.3m-3m,有效深度视场角为H 67.9°、V 45.3°,能够提供完整的深度和点云信息。Dabai Pro平均功耗低于1.5W,配备标准USB数据接口,不同环境下的深度质量稳定,安全可靠,已在不同类型的服务机器人上实现规模量产落地。
