Product details

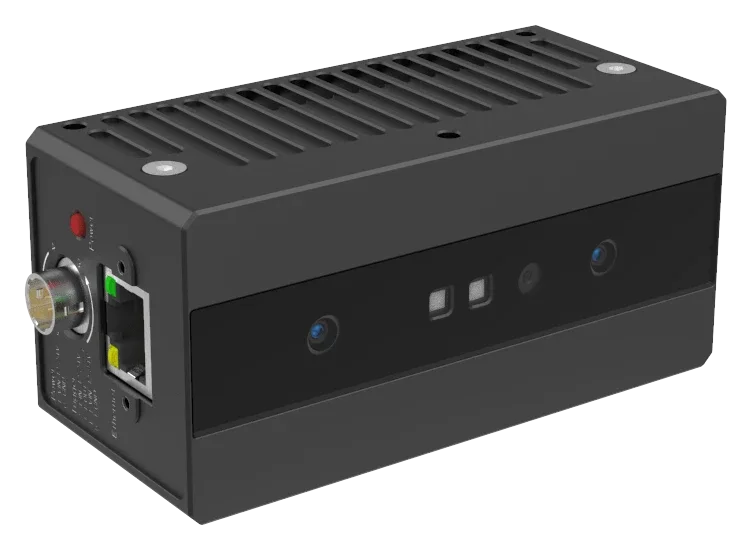

FS820-E1

Sensors and machine vision

Percipio

FS820-E1

About this product

Discontinued compact active-stereo RGB-D camera designed for cobot hand-eye applications, including recognition, positioning and grabbing. It combines close-range depth acquisition, Gigabit Ethernet and hardware triggering.

Model
FS820-E1
Category
Sensors and machine vision, Components
Product stage
Discontinued

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connector

RJ45 Gigabit Ethernet

Manufacturer specification

FS820-E1 manufacturer specifications
Data connector RJ45 Gigabit Ethernet

Depth frame rate and resolution

7 fps @ 1280 x 800 7 fps @ 640 x 400 7 fps @ 320 x 200

Manufacturer specification

Configuration: Manufacturer listed resolution/depth-quality combinations; operating-mode conditions in datasheet

FS820-E1 manufacturer specifications
Frame rate2 @ resolution (Depth) 7 fps @ 1280 x 800 7 fps @ 640 x 400 7 fps @ 320 x 200

Dimensions

95.0 mm x 45.0 mm x 43.0 mm

Manufacturer specification

Configuration: Dimension (excluding interfaces)

FS820-E1 manufacturer specifications
Dimension (excluding interfaces) 95.0 mm x 45.0 mm x 43.0 mm

Hardware trigger

1 trigger input/output; falling-edge trigger

Manufacturer specification

FS820-E1 manufacturer specifications
Hardware trigger 1 trigger input/output; falling-edge trigger

Housing material

Aluminum alloy

Manufacturer specification

FS820-E1 manufacturer specifications
Housing material Aluminum alloy

Illumination

2 x infrared laser

Manufacturer specification

FS820-E1 manufacturer specifications
Illumination 2 x infrared laser

Ingress protection

IP41

Manufacturer specification

FS820-E1 manufacturer specifications
Ingress protection IP41

Output data

Depth, RGB, IR, point cloud images

Manufacturer specification

FS820-E1 manufacturer specifications
Output data Depth, RGB, IR, point cloud images

Power consumption

Idle mode: 2.8 W Trigger mode: 3.3 W Continuous mode: 3.9 W

Manufacturer specification

FS820-E1 manufacturer specifications
Power consumption Idle mode: 2.8 W Trigger mode: 3.3 W Continuous mode: 3.9 W

Power supply

DC 12V~24V

Manufacturer specification

FS820-E1 manufacturer specifications
Power supply DC 12V~24V

Power trigger connector

6-pin push-pull self-locking aviation plug (male)

Manufacturer specification

FS820-E1 manufacturer specifications
Power & trigger connector 6-pin push-pull self-locking aviation plug (male)

Rgb d alignment

√

Manufacturer specification

FS820-E1 manufacturer specifications
RGB-D alignment √

Sdk

Percipio Camport SDK; Supported programming language: C, C++, C#, Python

Manufacturer specification

FS820-E1 manufacturer specifications
SDK Percipio Camport SDK; Supported programming language: C, C++, C#, Python

Supported platforms

Linux/Windows/ROS

Manufacturer specification

FS820-E1 manufacturer specifications
OS Linux/Windows/ROS

Technology

Active stereo

Manufacturer specification

FS820-E1 manufacturer specifications
Technical principle Active stereo

Temperature

Operating: 0 ℃ ~ 45 ℃ Storage:-10 ℃ ~ 55 ℃

Manufacturer specification

FS820-E1 manufacturer specifications
Temperature Operating: 0 ℃ ~ 45 ℃ Storage:-10 ℃ ~ 55 ℃

Thermal dissipation

Passive

Manufacturer specification

FS820-E1 manufacturer specifications
Thermal dissipation Passive

Weight

228 g

Manufacturer specification

Configuration: Weight

FS820-E1 manufacturer specifications
Weight 228 g

Working distance

300 mm ~ 1300 mm

Manufacturer specification

Configuration: Measurement range

FS820-E1 manufacturer specifications
Measurement range 300 mm ~ 1300 mm
