Product details

MC0408

Components

ZHAOWEI

MC0408

About this product

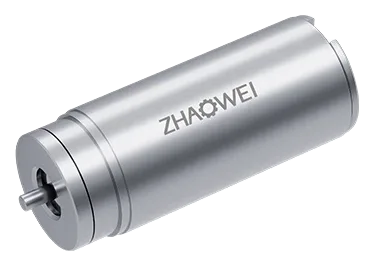

Brushless coreless motor with a 4 mm diameter for miniature drive assemblies. ZHAOWEI provides model-specific electrical data and mechanical drawings for integration.

Model
MC0408
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Ambient temperature

-20~+100 °C

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer thermal table.

Φ4mm无刷空心杯电机
环境温度(℃) -20~+100

Connector model options

AFJ AWG40

Manufacturer specification

Configuration: MC0408

Φ4mm无刷空心杯电机
端子型号 AFJ AWG40

Maximum axial dynamic load

0.1 N

Manufacturer specification

Configuration: MC0408; Ball-bearing mechanical specification.

Φ4mm无刷空心杯电机
最大轴向动态载荷(N) 0.1

Maximum axial play

0 at axial force < 0.15 N mm

Manufacturer specification

Configuration: MC0408; Ball-bearing mechanical specification. Applied axial-force threshold is preserved in the value.

Φ4mm无刷空心杯电机
最大轴向间隙(mm) < 0.15 N   0

Maximum axial play 2

0.3 at axial force > 0.15 N (maximum) mm

Manufacturer specification

Configuration: MC0408; Ball-bearing mechanical specification. Applied axial-force threshold is preserved in the value.

Φ4mm无刷空心杯电机
> 0.15 N   0.3(max)

Maximum efficiency

20 %

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
最大效率(%) 20

Maximum permissible speed

100 000 rpm

Manufacturer specification

Configuration: MC0408; Ball-bearing mechanical specification.

Φ4mm无刷空心杯电机
最大允许转速(rpm) 100 000

Maximum permissible static installation force

10 N

Manufacturer specification

Configuration: MC0408; Ball-bearing mechanical specification.

Φ4mm无刷空心杯电机
最大允许安静态装力(N) 10

Maximum radial load

2 N

Manufacturer specification

Configuration: MC0408; Ball-bearing mechanical specification. Load applied 2 mm from flange, as specified.

Φ4mm无刷空心杯电机
最大径向载荷,距离法兰处2mm处(N) 2

Maximum winding temperature

125 °C

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer thermal table.

Φ4mm无刷空心杯电机
最高绕组温度(℃) +125

Mechanical time constant

4.2 ms

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
机械时间常数(ms) 4.2

Motor diameter

4 mm

Manufacturer specification

Configuration: MC0408

Φ4mm无刷空心杯电机
直径(mm): 4

Motor length

8.5 mm

Manufacturer specification

Configuration: MC0408

Φ4mm无刷空心杯电机
长度(mm): 8.5

No load current

0.045 A

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
空载电流(A) 0.045

No load speed

58,000 rpm

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
空载转速(rpm) 58000

Output shaft diameter

0.5 mm

Manufacturer specification

Configuration: MC0408

Φ4mm无刷空心杯电机
输出轴直径(mm): 0.5

Phase to phase inductance

0.07 mH

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
相间电感(mH) 0.07

Phase to phase resistance

26.4 Ω

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
相间电阻(Ω) 26.4

Radial play

preloaded

Manufacturer specification

Configuration: MC0408; Ball-bearing mechanical specification.

Φ4mm无刷空心杯电机
径向间隙 preloaded

Rated current

0.095 A

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
额定电流(A) 0.095

Rated speed

41,900 rpm

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
额定转速 (rpm) 41900

Rated torque

0.02 mN·m

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
额定转矩(mNm) 0.02

Rated voltage

5 V

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
额定电压(V) 5

Rotor inertia

0.0006 g·cm²

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
转子惯量(gcm2) 0.0006

Speed constant

16,667 rpm/V

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
速度常数(rpm/V) 16667

Speed torque gradient

789,337 rpm/mN·m

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
转速/转矩斜度(rpm/mNm) 789337

Stall current

0.19 A

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
堵转电流(A) 0.19

Stall torque

0.07 mN·m

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
堵转转矩(mNm) 0.07

Torque constant

0.6 mN·m/A

Manufacturer specification

Configuration: MC0408, 5 V winding; Manufacturer rated-data table.

Φ4mm无刷空心杯电机
转矩常数(mNm/A) 0.6
