Product details

HexSkin

Sensors and machine vision

Ensuring Technology

HexSkin

About this product

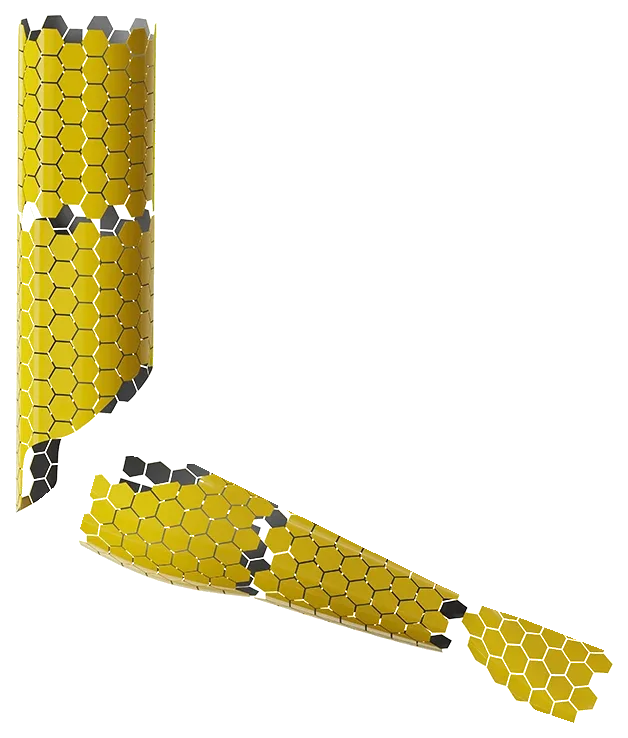

Flexible modular electronic skin for curved robot arms, torsos and other surfaces. Its distributed pressure array uses edge computation and CAN FD output for surface contact, collision and interaction sensing.

Model
HexSkin
Category
Sensors and machine vision, Components, Sensors & Perception

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Compute architecture

Edge-computing skin architecture

Manufacturer specification

产品中心|猿声科技
计算架构 边缘计算皮肤架构

Maximum coverage area per cluster

1.23 m²

Manufacturer specification

产品中心|猿声科技
单集群最大面积 1.23 m²

Measurement accuracy

<1% FS

Manufacturer specification

产品中心|猿声科技
测量精度 < 1% FS

Normal force range per point

0–50 N

Manufacturer specification

产品中心|猿声科技
单点法向量程 0–50 N

Output protocol

CAN FD

Manufacturer specification

产品中心|猿声科技
输出协议 CAN FD

Sampling frequency

60 Hz

Manufacturer specification

产品中心|猿声科技
采样频率 60 Hz

Scan throughput

2,000,000 points/s

Manufacturer specification

产品中心|猿声科技
点位扫描速度 200 万点位/秒

Sensing points per cluster

34,300 points

Manufacturer specification

产品中心|猿声科技
单集群感知点位 34,300 个

Sensor thickness

1.75 mm

Manufacturer specification

产品中心|猿声科技
传感器厚度 1.75 mm

Stretch capability

Bidirectional stretch

Manufacturer specification

产品中心|猿声科技
拉伸特性 双向拉伸

Surface conformity

Double-curved surfaces including robot arms and torsos

Manufacturer specification

产品中心|猿声科技
曲面适配 适应双曲面,贴合手臂、躯干等复杂表面
