Product details

LF-MEGF23-06-015-SR-DD

Motion control and actuation

LENFOR

LF-MEGF23-06-015-SR-DD

About this product

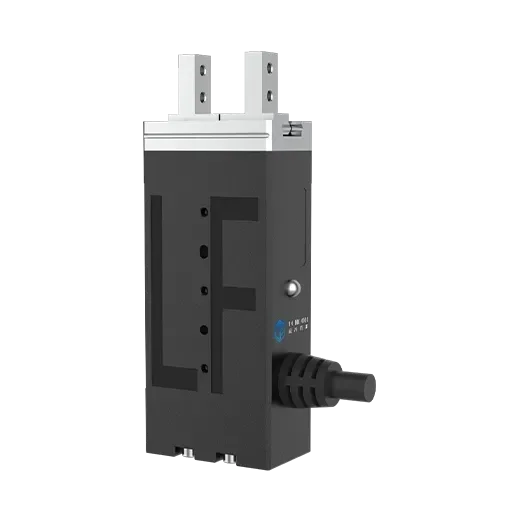

LF-MEGF23-06-015-SR-DD is a LENFOR parallel electric gripper for integration into robotic and automated equipment. The current manufacturer product record provides the configuration-specific dimensions, motion and electrical parameters captured below. Interface choices remain configuration options unless the manufacturer assigns a separate model code.

Model
LF-MEGF23-06-015-SR-DD
Category
Motion control and actuation, Components, Grippers & End Effectors

Product family: LF-MEGF

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Absolute position presets

2mm/4mm/6mm(Three selectable presets, I/O Combined triggering)

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 665, "product_id": 1, "parameter_id": 34, "parameter": { "id": 34, "name": "绝对定位位置", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "2mm/4mm/6mm(三档可选,I/O 组合触发)",

Communication interfaces

I/O, Modbus RTU(RS485)

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1. Standard/optional qualifiers retained where given; no separate protocol SKU inferred.

LENFOR public public-products
"id": 669, "product_id": 1, "parameter_id": 37, "parameter": { "id": 37, "name": "通讯方式", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "I/O方式、Modbus RTU(RS485)",

Controller

Integrated onboard controller

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 668, "product_id": 1, "parameter_id": 36, "parameter": { "id": 36, "name": "控制器", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "内置一体化控制器",

Dimensions

23.5mm*38mm*88.7mm

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 677, "product_id": 1, "parameter_id": 20, "parameter": { "id": 20, "name": "尺寸", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "23.5mm*38mm*88.7mm",

Drop detection

Supported

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 678, "product_id": 1, "parameter_id": 45, "parameter": { "id": 45, "name": "掉落检测", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "支持",

Fastest open close time

0.3s/0.3s

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 667, "product_id": 1, "parameter_id": 35, "parameter": { "id": 35, "name": "最快开/合时间", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "0.3s/0.3s",

Ingress protection

IP40

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 676, "product_id": 1, "parameter_id": 9, "parameter": { "id": 9, "name": "防护等级", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "IP40",

Mass

0.26 kg

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 673, "product_id": 1, "parameter_id": 4, "parameter": { "id": 4, "name": "重量", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "0.26kg",

Maximum gripping force

15N(I/OFour adjustable levels)

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 663, "product_id": 1, "parameter_id": 32, "parameter": { "id": 32, "name": "最大夹持力", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "15N(I/O四档可调)",

Maximum recommended payload

0.3 kg

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 664, "product_id": 1, "parameter_id": 67, "parameter": { "id": 67, "name": "最大推荐负载", "created_at": "2025-11-18T10:15:59.196Z", "updated_at": "2025-11-18T10:15:59.196Z" }, "value": "0.3kg",

Mounting

All faces except cable-exit face

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 679, "product_id": 1, "parameter_id": 12, "parameter": { "id": 12, "name": "安装方式", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "除出线面之外的其他面都可安装",

Noise

≤50dB

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 675, "product_id": 1, "parameter_id": 43, "parameter": { "id": 43, "name": "运行噪音", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "≤50dB",

No load current

0.1 A

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 671, "product_id": 1, "parameter_id": 39, "parameter": { "id": 39, "name": "空载电流", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "0.1A",

Peak current

0.3 A

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1. Peak duration and duty cycle are not stated.

LENFOR public public-products
"id": 672, "product_id": 1, "parameter_id": 40, "parameter": { "id": 40, "name": "峰值电流", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "0.3A",

Position repeatability

± 0.02mm

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 666, "product_id": 1, "parameter_id": 68, "parameter": { "id": 68, "name": "位置重复精度", "created_at": "2025-11-18T10:18:12.285Z", "updated_at": "2025-11-18T10:18:12.285Z" }, "value": "± 0.02mm",

Rated voltage

DC24V±10%

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 670, "product_id": 1, "parameter_id": 38, "parameter": { "id": 38, "name": "额定电压", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "DC24V±10%",

Recommended environment

0~55°C, 85%RHor lower

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 674, "product_id": 1, "parameter_id": 81, "parameter": { "id": 81, "name": "推荐使用环境", "created_at": "2025-11-18T15:06:12.76Z", "updated_at": "2025-11-18T15:06:12.76Z" }, "value": "0~55℃,85%RH以下",

Stroke

6 mm

Manufacturer specification

Configuration: LF-MEGF23-06-015-SR-DD; Manufacturer claim for exact product record 1.

LENFOR public public-products
"id": 662, "product_id": 1, "parameter_id": 1, "parameter": { "id": 1, "name": "行程", "created_at": "2025-10-20T06:14:33Z", "updated_at": "2025-10-20T06:14:33Z" }, "value": "6mm",
