MC1020

Components

ZHAOWEI

MC1020

About this product

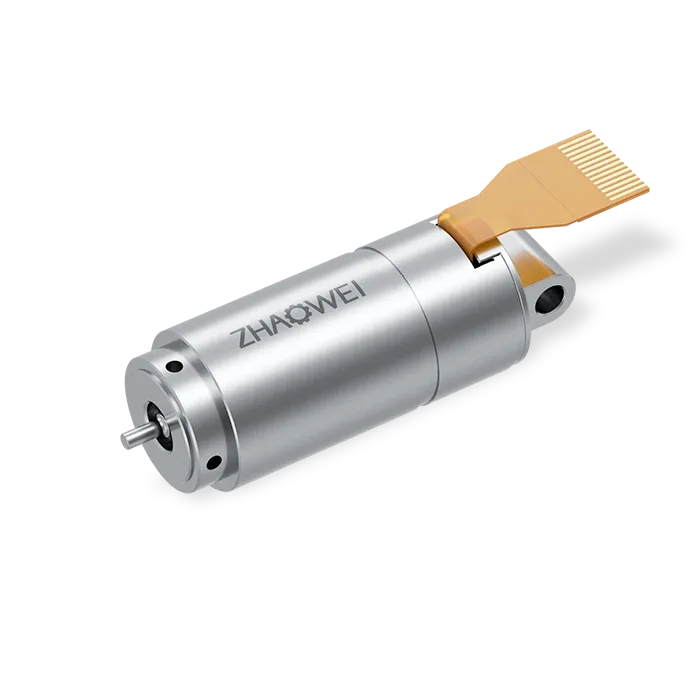

Brushless coreless motor with a 10 mm diameter for miniature drive assemblies. ZHAOWEI provides model-specific electrical data and mechanical drawings for integration.

Model
MC1020
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Ambient temperature

-20~+100 °C

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer thermal table.

Φ10mm 无刷空心杯电机
环境温度(℃) -20…+100

Connector model options

FPC0.5-12P

Manufacturer specification

Configuration: MC1020

Φ10mm 无刷空心杯电机
端子型号 FPC0.5-12P

Maximum axial dynamic load

2 N

Manufacturer specification

Configuration: MC1020; Ball-bearing mechanical specification.

Φ10mm 无刷空心杯电机
最大轴向动态载荷(N) 2

Maximum axial play

0 at axial force < 0.15 N mm

Manufacturer specification

Configuration: MC1020; Ball-bearing mechanical specification. Applied axial-force threshold is preserved in the value.

Φ10mm 无刷空心杯电机
最大轴向间隙(mm) < 0.15N 0

Maximum axial play 2

0.06 at axial force > 0.15 N (maximum) mm

Manufacturer specification

Configuration: MC1020; Ball-bearing mechanical specification. Applied axial-force threshold is preserved in the value.

Φ10mm 无刷空心杯电机
> 0.15 N 0.06(max)

Maximum efficiency

56.2 %

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
最大效率(%) 56.2

Maximum permissible speed

40,000 rpm

Manufacturer specification

Configuration: MC1020; Ball-bearing mechanical specification.

Φ10mm 无刷空心杯电机
最大允许转速(rpm) 40000

Maximum permissible static installation force

10 N

Manufacturer specification

Configuration: MC1020; Ball-bearing mechanical specification.

Φ10mm 无刷空心杯电机
最大允许安静态装力(N) 10

Maximum radial load

5 N

Manufacturer specification

Configuration: MC1020; Ball-bearing mechanical specification. Load applied 2 mm from flange, as specified.

Φ10mm 无刷空心杯电机
最大径向载荷,距离法兰处2mm处(N) 5

Maximum winding temperature

125 °C

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer thermal table.

Φ10mm 无刷空心杯电机
最高绕组温度(℃) 125

Mechanical time constant

2.7 ms

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
机械时间常数(ms) 2.7

Motor diameter

10 mm

Manufacturer specification

Configuration: MC1020

Φ10mm 无刷空心杯电机
直径(mm): 10

Motor length

20 mm

Manufacturer specification

Configuration: MC1020

Φ10mm 无刷空心杯电机
长度(mm): 20

No load current

0.15 A

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
空载电流(A) 0.15

No load speed

51,000 rpm

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
空载转速(rpm) 51000

Phase to phase inductance

0.053 mH

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
相间电感(mH) 0.053

Phase to phase resistance

4.48 Ω

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
相间电阻(Ω) 4.48

Radial play

preloaded

Manufacturer specification

Configuration: MC1020; Ball-bearing mechanical specification.

Φ10mm 无刷空心杯电机
径向间隙 preloaded

Rated current

0.86 A

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
额定电流(A) 0.86

Rated speed

37,000 rpm

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
额定转速 (rpm) 37000

Rated torque

1.45 mN·m

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
额定转矩(mNm) 1.45

Rated voltage

12 V

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
额定电压(V) 12

Rotor inertia

56.2 g·cm²

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
转子惯量(gcm2) 56.2

Speed constant

4,545 rpm/V

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
速度常数(rpm/V) 4545

Speed torque gradient

9,597 rpm/mN·m

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
转速/转矩斜度( rpm/mNm) 9597

Stall current

2.7 A

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
堵转电流(A) 2.7

Stall torque

5.3 mN·m

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
堵转转矩(mNm) 5.3

Torque constant

2.1 mN·m/A

Manufacturer specification

Configuration: MC1020, 12 V winding; Manufacturer rated-data table.

Φ10mm 无刷空心杯电机
转矩常数(mNm/A) 2.1
