Product details

Astra

Sensors and machine vision

Orbbec Inc.

Astra

About this product

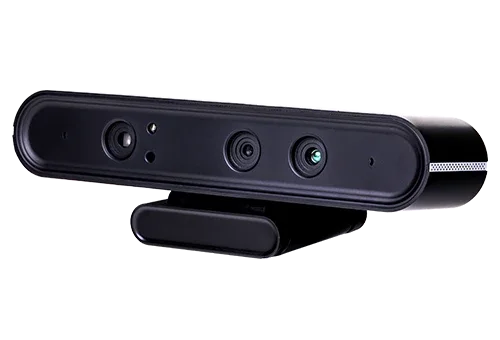

Astra is a legacy structured-light RGB-D camera in the Orbbec Astra family. It supplies depth, infrared and color data over USB 2.0 with onboard depth processing. Orbbec provides OpenNI wrappers for ROS and ROS 2 for this family. Marketing ended in September 2025.

Model
Astra
Category
Sensors and machine vision, Components
Product stage
Discontinued

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

USB 2.0 Type-A

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Data Connection USB 2.0 Type-A

Data output

Point Cloud, Depth Map, IR or RGB

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Data Output Point Cloud, Depth Map, IR or RGB

Depth fov

H58.4° V45.5°

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Depth FOV H58.4° V45.5°

Depth range

0.6–8 m

Manufacturer specification

Configuration: Standard range; S suffix range excluded.

Astra Series: Structured Light Cameras | Orbbec
Depth Range *0.6-8m, 0.4-2m (S)

Depth resolution fps

Up to 640X480@30fps

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Depth Resolution/FPS Up to 640X480@30fps

Depth technology

Structured Light

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Depth Technology Structured Light

Dimensions w h d

165mm x 48mm x 40mm

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Dimensions (W*H*D) 165mm x 48mm x 40mm

End of marketing

2025-09-30

Manufacturer specification

Configuration: Manufacturer lifecycle notice

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2025-02-25100058-Astra-Series-EOL-Announcement.pdf
EOL No.:EOL_20250220002 EOL Announcement for Astra Series Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Astra Series. We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. February 20, 2025 Milestone Date Remark EOL announcement 2025-02-20 EOL publicity date EOM 2025-09-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2027-09-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product. Including software and hardware problem support and update. Replacement product End of Life product Replacement product Astra Astra Pro 2/Astra 2 Astra S Astra Mini S Pro Astra Pro Plus Astra Pro 2/Astra 2

End of support

2027-09-30

Manufacturer specification

Configuration: Manufacturer lifecycle notice

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2025-02-25100058-Astra-Series-EOL-Announcement.pdf
EOL No.:EOL_20250220002 EOL Announcement for Astra Series Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Astra Series. We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. February 20, 2025 Milestone Date Remark EOL announcement 2025-02-20 EOL publicity date EOM 2025-09-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2027-09-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product. Including software and hardware problem support and update. Replacement product End of Life product Replacement product Astra Astra Pro 2/Astra 2 Astra S Astra Mini S Pro Astra Pro Plus Astra Pro 2/Astra 2

Imu

N/A

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
IMU N/A

Operating environment

10℃ - 40℃; Indoor; 10%-85%RH

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Operating Environment 10℃ - 40℃; Indoor; 10%-85%RH

Power consumption

Average <2.4W

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Power Consumption Average <2.4W

Power input

USB 2.0 Type-A

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Power Input USB 2.0 Type-A

Rgb fov

H63.1° V49.4°

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
RGB FOV H66.1° V40.2° (Pro Plus), H63.1° V49.4°

Rgb resolution fps

640×480 at 30 fps

Manufacturer specification

Configuration: Standard Astra/Astra S value; Pro Plus value excluded.

Astra Series: Structured Light Cameras | Orbbec
RGB Resolution/FPS Up to 1920X1080@30fps (Pro Plus), 640X480@30fps

Sdk support

Orbbec OpenNI SDK

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
SDK Support Orbbec OpenNI SDK

Wavelength

850 nm

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Wavelength 850nm

Weight

310 g

Manufacturer specification

Astra Series: Structured Light Cameras | Orbbec
Weight 310g
