Product details

TL430-E1

Sensors and machine vision

Percipio

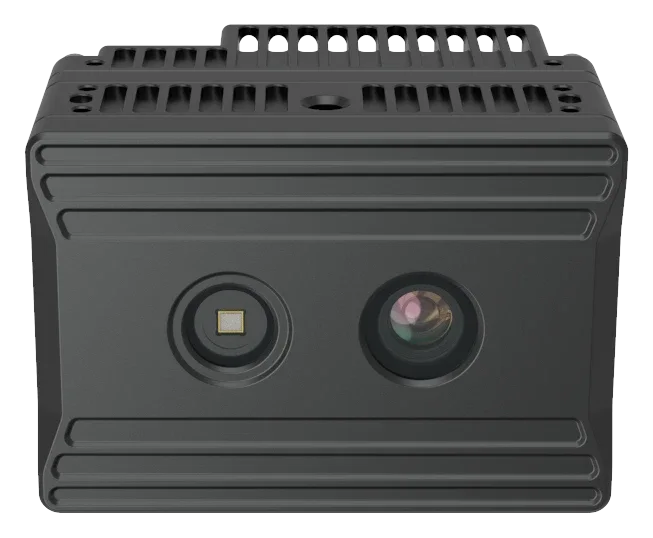

TL430-E1

About this product

Indirect time-of-flight depth camera with infrared and point-cloud output, an IP67 aluminum housing, Gigabit Ethernet and hardware triggering. It supports several depth resolutions and quality modes for industrial sensing.

Model
TL430-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connector

M12 X-Code, 8-pin, female connector; Gigabit Ethernet

Manufacturer specification

TL430-E1 manufacturer specifications
Data connector M12 X-Code, 8-pin, female connector; Gigabit Ethernet

Depth frame rate and resolution

Supported resolution: 640 x 480、320 x 240、160 x 120 Supported depth quality and corresponding frame rate: HIGH (7 fps), MEDIUM (15 fps)

Manufacturer specification

Configuration: Manufacturer listed resolution/depth-quality combinations; operating-mode conditions in datasheet

TL430-E1 manufacturer specifications
Frame rate2 @ resolution (Depth) Supported resolution: 640 x 480、320 x 240、160 x 120 Supported depth quality and corresponding frame rate: HIGH (7 fps), MEDIUM (15 fps)

Dimensions

80 mm x 56 mm x 56 mm

Manufacturer specification

Configuration: Dimension (incl. connectors)

TL430-E1 manufacturer specifications
Dimension (incl. connectors) 80 mm x 56 mm x 56 mm

Hardware trigger

1 trigger input/output, falling-edge trigger

Manufacturer specification

TL430-E1 manufacturer specifications
Hardware trigger 1 trigger input/output, falling-edge trigger

Housing material

Aluminum alloy

Manufacturer specification

TL430-E1 manufacturer specifications
Housing material Aluminum alloy

Illumination

1 x infrared laser (λ = 940 nm)

Manufacturer specification

TL430-E1 manufacturer specifications
Illumination 1 x infrared laser (λ = 940 nm)

Ingress protection

IP67

Manufacturer specification

TL430-E1 manufacturer specifications
Ingress protection IP67

Output data

Depth, IR, point cloud images

Manufacturer specification

TL430-E1 manufacturer specifications
Output data Depth, IR, point cloud images

Power consumption

< 8 W

Manufacturer specification

TL430-E1 manufacturer specifications
Power consumption < 8 W

Power supply

DC 24V ±10%; PoE (IEEE802.3 af/at)

Manufacturer specification

TL430-E1 manufacturer specifications
Power supply3 DC 24V ±10%; PoE (IEEE802.3 af/at)

Power trigger connector

M12 A-Code, 8-pin, male connector;

Manufacturer specification

TL430-E1 manufacturer specifications
Power & trigger connector M12 A-Code, 8-pin, male connector;

Sdk

Percipio Camport SDK; Supported programming language: C/C++, C#, Python;

Manufacturer specification

TL430-E1 manufacturer specifications
SDK Percipio Camport SDK; Supported programming language: C/C++, C#, Python;

Supported platforms

Linux/Windows/ROS

Manufacturer specification

TL430-E1 manufacturer specifications
OS Linux/Windows/ROS

Technology

Indirect Time of Flight (iToF)

Manufacturer specification

TL430-E1 manufacturer specifications
Technical principle Indirect Time of Flight (iToF)

Temperature

Operating: 0 ℃ ~ 45 ℃; Storage:-10 ℃ ~ 55 ℃

Manufacturer specification

TL430-E1 manufacturer specifications
Temperature Operating: 0 ℃ ~ 45 ℃; Storage:-10 ℃ ~ 55 ℃

Thermal dissipation

Passive

Manufacturer specification

TL430-E1 manufacturer specifications
Thermal dissipation Passive4

Weight

349 g

Manufacturer specification

Configuration: Weight

TL430-E1 manufacturer specifications
Weight 349 g

Working distance

150 mm ~ 6000 mm

Manufacturer specification

Configuration: Max working distance

TL430-E1 manufacturer specifications
Max working distance 150 mm ~ 6000 mm
