Product details

GSE-22

Motion control and actuation

Vieta

GSE-22

About this product

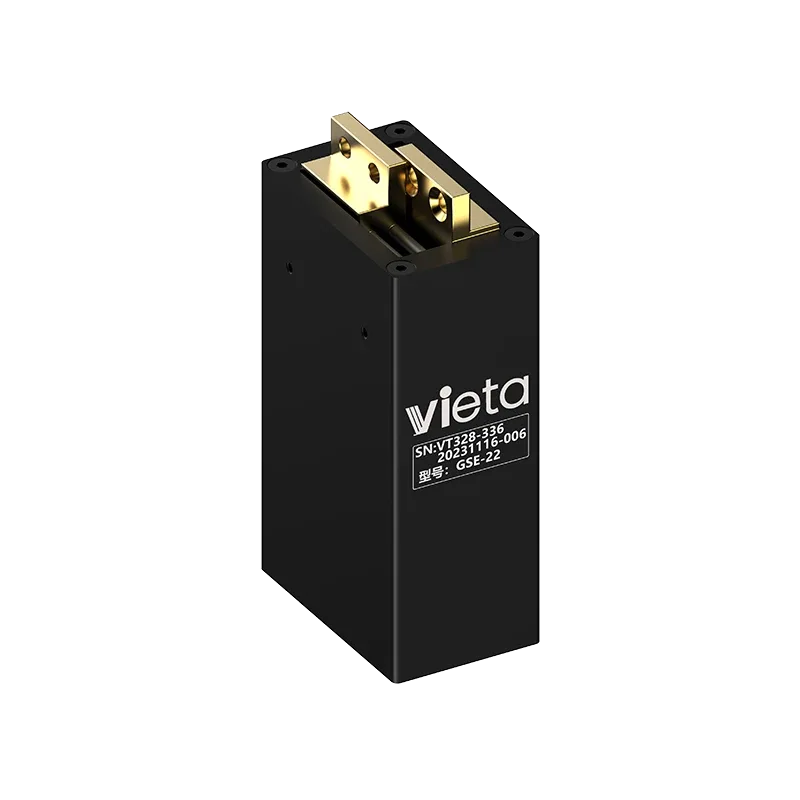

GSE-22 is a Vieta electric gripper for automated handling and machine or robotic end-effector integration. Its manufacturer page specifies the motion, electrical and mechanical limits below. Communication and mechanical customizations remain options of the named base model unless a separate model is explicitly identified.

Model
GSE-22
Category
Motion control and actuation, Components, Grippers & End Effectors

Product family: GSE series

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Communication protocols

Digital l0

Manufacturer specification

Manufacturer table for GSE-22. Standard and optional configurations retained; no separate protocol SKU inferred. Source prints Digital l0; likely I/O typography is not silently normalized.

GSE-22-电动夹爪-广东赛韦达科技有限公司
通讯协议 Digital l0

Dimensions

76.5mmx40mmx25mm

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
尺寸 76.5mmx40mmx25mm

Gripping force

3~50N

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
夹持力 3~50N

Ingress protection

IP40

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
防护等级 IP40

Mass

0.31 kg

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
重量 0.31kg

Maximum recommended payload

0.5 kg

Manufacturer specification

Manufacturer table for GSE-22. Maximum recommended load; page does not define full duty-cycle conditions.

GSE-22-电动夹爪-广东赛韦达科技有限公司
最大推荐负载* 0.5kg

Open close time

0.3s/0.3s

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
打开/闭合时间 0.3s/0.3s

Operating noise

<65dB

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
运行噪音 <65dB

Operating voltage

24VDC±10%

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
工作电压 24VDC士10%

Peak current

1.73 A

Manufacturer specification

Manufacturer table for GSE-22. Peak duration is not specified.

GSE-22-电动夹爪-广东赛韦达科技有限公司
峰值电流 1.73A

Permissible moment mx

3 N·m

Manufacturer specification

Manufacturer table for GSE-22. Static load/moment limit; not payload rating.

GSE-22-电动夹爪-广东赛韦达科技有限公司
Mx 3.0N.m

Permissible moment my

1.8 N·m

Manufacturer specification

Manufacturer table for GSE-22. Static load/moment limit; not payload rating.

GSE-22-电动夹爪-广东赛韦达科技有限公司
My 1.8N.m

Permissible moment mz

3.1 N·m

Manufacturer specification

Manufacturer table for GSE-22. Static load/moment limit; not payload rating.

GSE-22-电动夹爪-广东赛韦达科技有限公司
Mz 3.1N·m

Permissible static vertical load

160 N

Manufacturer specification

Manufacturer table for GSE-22. Static load/moment limit; not payload rating.

GSE-22-电动夹爪-广东赛韦达科技有限公司
Fz 160N

Position repeatability

±0.1mm

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
位置重复精度 士0.1mm

Rated current

0.2 A

Manufacturer specification

Manufacturer table for GSE-22.

GSE-22-电动夹爪-广东赛韦达科技有限公司
额定电流 0.2A
