Product details

ULTRA M-GL

Sensors and machine vision

Mech-Mind Robotics

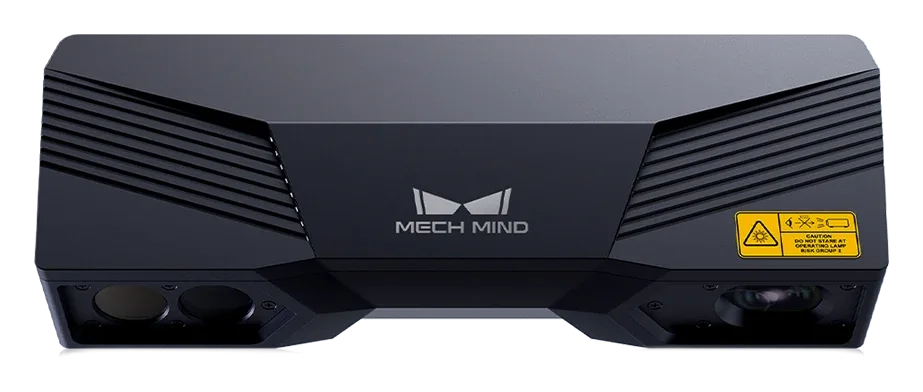

ULTRA M-GL

About this product

Mech-Eye industrial 3D camera for detailed medium-range industrial perception. It supplies depth data over Gigabit Ethernet and is supported by the Mech-Mind vision software ecosystem for robotic perception.

Model
ULTRA M-GL
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Baseline

270 mm

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Baseline (mm) 80 68 86 180 270 270 140 380 800 300

Capture time

0.08–0.36 s

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Typical capture time (s) 0.6–0.9 0.6–1.1 0.5–0.9 0.3–0.6 0.3–0.6 0.08–0.36 0.5–0.9 0.5–0.9 0.6–1.1 0.5–0.9

Certifications

CE/FCC/VCCI/KC/ISED/NRTL

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Safety and EMC CE/FCC/VCCI/KC/ISED/NRTL

Cooling method

Active

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Cooling Passive Active Passive

Dimensions

360 × 66 × 125 mm

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Dimensions (mm) 260 × 65 × 142 145 × 51 × 85 125 × 46 × 76 265 × 57 × 100 353 × 57 × 100 360 × 66 × 125 228 × 77 × 126 459 × 77 × 86 942 × 88 × 116 366 × 77 × 92

Far field of view

1355 × 1056 @ 2.2 m mm

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Far FOV (mm) 150 × 100 @ 0.32m 440 × 300 @ 0.6 m 770 × 550 @ 0.8 m 800 × 450 @ 1.0 m 1500 × 890 @ 2.0 m 1355 × 1056 @ 2.2 m 1500 × 1200 @ 1.5 m 3000 × 2400 @ 3.0 m 3000 × 2800 @ 3.5 m 3500 × 2800 @ 3.5 m

Image color

Color

Manufacturer specification

Configuration: ULTRA M-V5D1400A

Camera Selection Guide
ULTRA M-GL Color ULTRA M-V5D1400A 1300 1000–1400 ±1.5

Image color

Color

Manufacturer specification

Configuration: ULTRA M-V5D2000A

Camera Selection Guide
ULTRA M-V5D2000A 1800 1300–2200 ±2

Image sensor

Advanced Sony CMOS for high-end machine vision

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Image sensor Sony CMOS for high-end machine vision High-performance CMOS for high-end machine vision Sony CMOS for high-end machine vision Advanced Sony CMOS for high-end machine vision Sony CMOS for high-end machine vision

Interface

Gigabit Ethernet

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Communication interface Gigabit Ethernet

Ip rating

IP65

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
IP rating IP65 IP67 IP65

Light source

Blue LED (440 nm, RG2)

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Light source Blue LED (459 nm, RG2) Blue LED (459 nm, RG2)/White LED (RG2) Blue LED (440 nm, RG2) Blue LED (459 nm, RG2)/White LED (RG2) Blue LED (440 nm, RG2) Red laser (638 nm, Class 2)

Model configuration

ULTRA M-V5D1400A

Manufacturer specification

Configuration: ULTRA M-V5D1400A

Camera Selection Guide
ULTRA M-GL Color ULTRA M-V5D1400A 1300 1000–1400 ±1.5

Model configuration

ULTRA M-V5D2000A

Manufacturer specification

Configuration: ULTRA M-V5D2000A

Camera Selection Guide
ULTRA M-V5D2000A 1800 1300–2200 ±2

Near field of view

616 × 487 @ 1.0 m mm

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Near FOV (mm) 135 × 90 @ 0.28m 220 × 150 @ 0.3 m 220 × 165 @ 0.25 m 370 × 240 @ 0.5 m 800 × 450 @ 1.0 m 616 × 487 @ 1.0 m 480 × 360 @ 0.5 m 1200 × 1000 @ 1.2 m 1280 × 1280 @ 1.6 m 1200 × 1000 @ 1.2 m

Object focal distance

1,300 mm

Manufacturer specification

Configuration: ULTRA M-V5D1400A

Camera Selection Guide
ULTRA M-GL Color ULTRA M-V5D1400A 1300 1000–1400 ±1.5

Object focal distance

1,800 mm

Manufacturer specification

Configuration: ULTRA M-V5D2000A

Camera Selection Guide
ULTRA M-V5D2000A 1800 1300–2200 ±2

Operating temperature

0–45 ℃

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Operating temperature (℃) 0–45 -10–45

Power input

24 VDC, 5 A

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Input 24 VDC, 3.75 A 24 VDC,1.5 A 24 VDC, 3.75 A 24 VDC, 5 A 24 VDC, 3.75 A

Recommended working distance

1000–1400 mm

Manufacturer specification

Configuration: ULTRA M-V5D1400A

Camera Selection Guide
ULTRA M-GL Color ULTRA M-V5D1400A 1300 1000–1400 ±1.5

Recommended working distance

1300–2200 mm

Manufacturer specification

Configuration: ULTRA M-V5D2000A

Camera Selection Guide
ULTRA M-V5D2000A 1800 1300–2200 ±2

Release date

2026-08-12

Manufacturer specification

Configuration: Official product launch announcement; earlier 2026 demonstrations were previews

The New Mech-Eye ULTRA M-GL Redefines 3D Vision for Sub-1 mm Thin Parts, Transparent Objects, and High-Speed Robotics | Mech-Mind Robotics
08/12/2026 High-quality industrial 3D vision enables robots to accurately perceive, understand, and interact with the physical world. Yet real-world manufacturing and logistics environments continue to present major challenges for robot vision. Sub-1 mm thin parts and transparent materials are difficult to reconstruct reliably with industrial 3D cameras, while increasingly demanding cycle times leave little room for lengthy image acquisition. To address these challenges, Mech-Mind launches Mech-Eye ULTRA M-GL, its flagship industrial 3D camera with high resolution and high speed as well as the latest addition to the company's embodied AI “Eye-Brain-Hand” portfolio.

Resolution

Depth Map: 2448 × 2048 RGB: 4000 x 3000 2000 x 1500

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Resolution 2048 × 1536 1280 × 1024 2400 × 1800 1920 × 1200 1920 × 1200 Depth Map: 2448 × 2048 RGB: 4000 x 3000 2000 x 1500 Depth Map: 2048 × 1536 RGB: 4000 x 3000 2000 x 1500 Depth Map: 2048 × 1536 RGB: 4000 x 3000 2000 x 1500 Depth Map: 2448 × 2040 RGB: 4000 x 3000 2000 x 1500 Depth Map: 2048 × 1536 RGB: 2000 x 1500

Weight

3.2 kg

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
Weight (kg) 1.9 0.7 0.7 1.6 1.9 3.2 1.9 2.9 4.5 2.4

Working distance

1000–2200 mm

Manufacturer specification

Configuration: ULTRA M-GL catalog column

Mech-Mind Robotics — robotics component scope
*Working distance(mm) 300 ± 20 300–600 250 –800 500–1000 1000–2000 1000–2200 500–1500 1200–3000 1600–3500 1200–3500
