Product details

iSWV

Components

Kinco

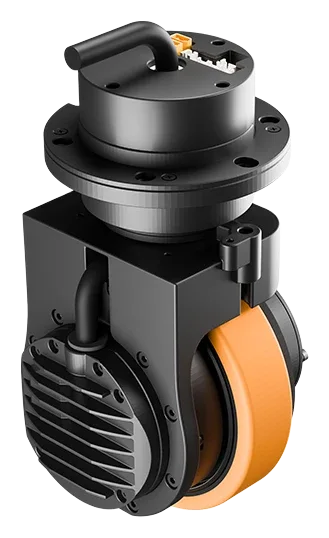

iSWV

About this product

Vertical omnidirectional steering-wheel module integrating traction, steering, servo control, reduction and position sensing. It is intended for AGVs, AMRs and other wheeled mobile equipment.

Model
iSWV
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Complete assembly can fd interface

maximum supports 5Mbps, CAN FD communication with controller

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
CANFD 最大支持5Mbps,可使用CANFD协议与控制器通讯

Complete assembly canopen interface

maximum supports 1Mbps, CANopen communication with controller

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
CANopen 最大支持1Mbps,可使用CANopen协议与控制器通讯

Complete assembly complete assembly mass

iSWV00928-00627-A130-MADT-□A: 4.7; iSWV00928-00627-A150-MBDT-□A: 7.5 kg

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
整机重量(kg) 4.7 7.5

Complete assembly duty cycle

S3-10min-60% (cycle 10min,60%operating time)

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
工作制 S3-10min-60% (周期10min,60%工作时间) S3-10min-60% (周期10min,60%工作时间)

Complete assembly ethercat interface

CoE (CiA402), CSP/CSV/PP/PV/PT/HM modes; communication speed 100M

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
EtherCAT 支持COE(CiA402协议)以及CSP/CSV/PP/PV/PT/HM模式,通讯速度100M

Complete assembly load capacity

iSWV00928-00627-A130-MADT-□A: maximum 100kg; iSWV00928-00627-A150-MBDT-□A: maximum 150kg

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
承载重量(kg) 最大100kg 最大150kg

Complete assembly modbus rs485 interface

maximum supports 115.2Kbps, Modbus RTU communication with controller

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
Modbus/RS485 最大支持115.2Kbps,可使用Modbus RTU协议与控制器通讯

Complete assembly overvoltage alarm threshold

default 68±2V VDC

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
过压报警电压(V) 默认68±2V

Complete assembly regenerative braking

Traction module has an internal braking circuit

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
能耗制动 行走模组内部含制动电路

Complete assembly tire hardness

iSWV00928-00627-A130-MADT-□A: 85A±2; iSWV00928-00627-A150-MBDT-□A: 90A±2

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
轮胎硬度等级 85A±2 90A±2

Complete assembly tire material

Polyurethane

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
轮胎材质 聚氨酯 聚氨酯

Complete assembly undervoltage alarm threshold

default 18±2V VDC

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
欠压报警电压(V) 默认18±2V

Logic power supply

24V,0.5A(optional) VDC

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
逻辑电源(VDC) 24V,0.5A(可选) 24V,0.5A(可选)

Main power supply

48V VDC

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
动力电源(VDC) 48V 48V

Steering geared assembly ingress protection

IP20

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
防护等级 IP20 IP20

Steering geared assembly insulation class

F

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
绝缘等级 F F

Steering geared assembly mass

iSWV00928-00627-A130-MADT-□A: 0.88; iSWV00928-00627-A150-MBDT-□A: 1.4 kg

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
重量(kg) 0.88 1.4

Steering geared assembly maximum speed

330 rpm

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
最大转速(rpm) 330 330

Steering geared assembly maximum torque

13.5 N·m

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label. Peak/maximum value; duration is not stated on this page.

iSWV立式全向舵轮模组
最大转矩(N.m) 13.5 13.5

Steering geared assembly rated power

174 W

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定功率(W) 174 174

Steering geared assembly rated speed

277 rpm

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定转速(rpm) 277 277

Steering geared assembly rated torque

6 N·m

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定转矩(N.m) 6 6

Steering motor assembly maximum current

14.3 Arms

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
最大电流(Arms) 14.3 14.3

Steering motor assembly rated current

6.5 A

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定电流(A) 6.5 6.5

Steering motor assembly rated power

195 W

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定功率(W) 195 195

Steering motor assembly rated speed

2,500 rpm

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定转速(rpm) 2500 2500

Steering motor assembly rated torque

0.75 N·m

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定转矩(N.m) 0.75 0.75

Traction geared assembly ingress protection

IP54

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
防护等级 IP54 IP54

Traction geared assembly insulation class

F

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
绝缘等级 F F

Traction geared assembly mass

iSWV00928-00627-A130-MADT-□A: 3.4; iSWV00928-00627-A150-MBDT-□A: 5.1 kg

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
重量(kg) 3.4 5.1

Traction geared assembly maximum linear speed

iSWV00928-00627-A130-MADT-□A: 2.2; iSWV00928-00627-A150-MBDT-□A: 2.5 m/s

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
最大线速度(m/s) 2.2 2.5

Traction geared assembly maximum torque

27 N·m

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label. Peak/maximum value; duration is not stated on this page.

iSWV立式全向舵轮模组
最大转矩(N.m) 27 27

Traction geared assembly rated linear speed

iSWV00928-00627-A130-MADT-□A: 1.9; iSWV00928-00627-A150-MBDT-□A: 2.2 m/s

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定线速度(m/s) 1.9 2.2

Traction geared assembly rated power

264 W

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定功率(W) 264 264

Traction geared assembly rated speed

280 rpm

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定转速(rpm) 280 280

Traction geared assembly rated torque

9 N·m

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定转矩(N.m) 9 9

Traction geared assembly wheel diameter

iSWV00928-00627-A130-MADT-□A: 130; iSWV00928-00627-A150-MBDT-□A: 150 mm

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
轮径(mm) 130 150

Traction geared assembly wheel width

iSWV00928-00627-A130-MADT-□A: 30; iSWV00928-00627-A150-MBDT-□A: 45 mm

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
轮宽(mm) 30 45

Traction motor assembly brake holding torque

1.32 N·m

Manufacturer specification

Configuration: iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label. Applies to the brake-equipped option only.

iSWV立式全向舵轮模组
抱闸保持扭矩 T(Nm) / 1.32

Traction motor assembly maximum current

iSWV00928-00627-A130-MADT-□A: 25; iSWV00928-00627-A150-MBDT-□A: 26 Arms

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
最大电流(Arms) 25 26

Traction motor assembly rated current

8.5 Arms

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定电流(Arms) 8.5 8.5

Traction motor assembly rated power

294 W

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定功率(W) 294 294

Traction motor assembly rated speed

2,800 rpm

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定转速(rpm) 2800 2800

Traction motor assembly rated torque

1 N·m

Manufacturer specification

Configuration: iSWV00928-00627-A130-MADT-□A; iSWV00928-00627-A150-MBDT-□A; Per exact family configuration. Model-code options are not interchangeable. Complete module uses S3 10-minute/60% duty; component identity remains in the metric label.

iSWV立式全向舵轮模组
额定转矩(N.m) 1 1
