Product details

TL460-S1-E1

Sensors and machine vision

Percipio

TL460-S1-E1

About this product

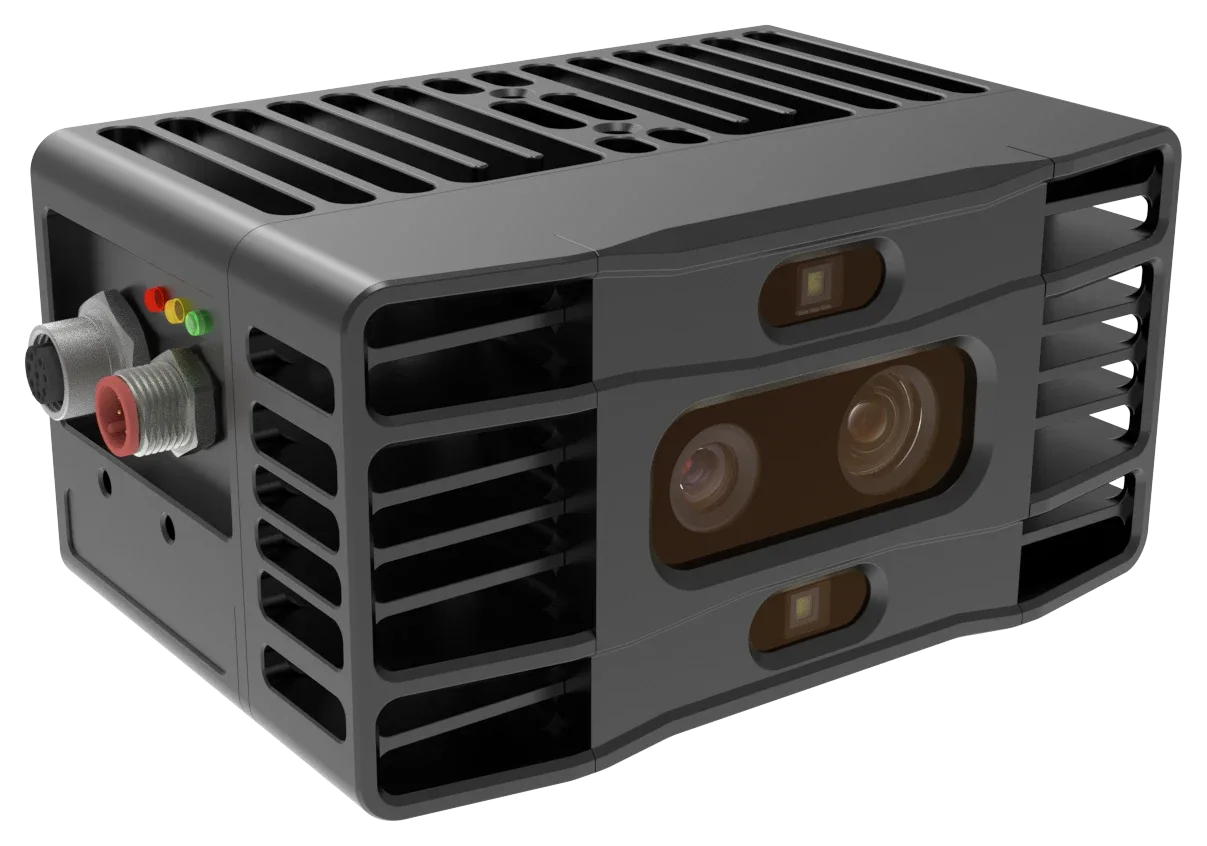

Indirect time-of-flight RGB-D camera with two infrared lasers and an IP67 aluminum housing. Gigabit Ethernet, PoE, hardware triggering and selectable depth-quality modes support industrial depth acquisition.

Model
TL460-S1-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connector

M12 A-Code, 8-pin, female connector Gigabit Ethernet

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Data connector M12 A-Code, 8-pin, female connector Gigabit Ethernet

Depth frame rate and resolution

Supported resolution: 640 x 480、320 x 240、160 x 120 Supported depth quality and corresponding frame rate: HIGH (15 fps), MEDIUM (30 fps)

Manufacturer specification

Configuration: Manufacturer listed resolution/depth-quality combinations; operating-mode conditions in datasheet

TL460-S1-E1 manufacturer specifications
Frame rate2 @ resolution (Depth) Supported resolution: 640 x 480、320 x 240、160 x 120 Supported depth quality and corresponding frame rate: HIGH (15 fps), MEDIUM (30 fps)

Dimensions

140 mm x 94 mm x 70 mm

Manufacturer specification

Configuration: Dimension (incl. connectors)

TL460-S1-E1 manufacturer specifications
Dimension (incl. connectors) 140 mm x 94 mm x 70 mm

Hardware trigger

1 trigger input/output, falling-edge trigger

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Hardware trigger 1 trigger input/output, falling-edge trigger

Housing material

Aluminum alloy

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Housing material Aluminum alloy

Illumination

2 x infrared laser(λ = 940 nm)

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Illumination 2 x infrared laser(λ = 940 nm)

Ingress protection

IP67

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Ingress protection IP67

Output data

Depth, RGB, IR, point cloud images

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Output data Depth, RGB, IR, point cloud images

Power consumption

Average: 13.60 W Max: 29.68 W

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Power consumption Average: 13.60 W Max: 29.68 W

Power supply

DC 24V; PoE (IEEE802.3 at)

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Power supply3 DC 24V; PoE (IEEE802.3 at)

Power trigger connector

M12 A-Code, 8-pin, male connector

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Power & trigger connector M12 A-Code, 8-pin, male connector

Rgb d alignment

√

Manufacturer specification

TL460-S1-E1 manufacturer specifications
RGB-D alignment √

Sdk

Percipio Camport SDK; Supported programming language: C/C++, C#, Python;

Manufacturer specification

TL460-S1-E1 manufacturer specifications
SDK Percipio Camport SDK; Supported programming language: C/C++, C#, Python;

Supported platforms

Linux/Windows/ROS

Manufacturer specification

TL460-S1-E1 manufacturer specifications
OS Linux/Windows/ROS

Technology

Indirect Time of Flight (iToF)

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Technical principle Indirect Time of Flight (iToF)

Temperature

Operating: 0 ℃ ~ 50 ℃ Storage:-20 ℃ ~ 55 ℃

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Temperature Operating: 0 ℃ ~ 50 ℃ Storage:-20 ℃ ~ 55 ℃

Thermal dissipation

Passive

Manufacturer specification

TL460-S1-E1 manufacturer specifications
Thermal dissipation Passive4

Weight

1,100 g

Manufacturer specification

Configuration: Weight

TL460-S1-E1 manufacturer specifications
Weight 1100 g

Working distance

300 mm ~ 9500 mm

Manufacturer specification

Configuration: Max working distance

TL460-S1-E1 manufacturer specifications
Max working distance 300 mm ~ 9500 mm
