Product details

TM265-E1

Sensors and machine vision

Percipio

TM265-E1

About this product

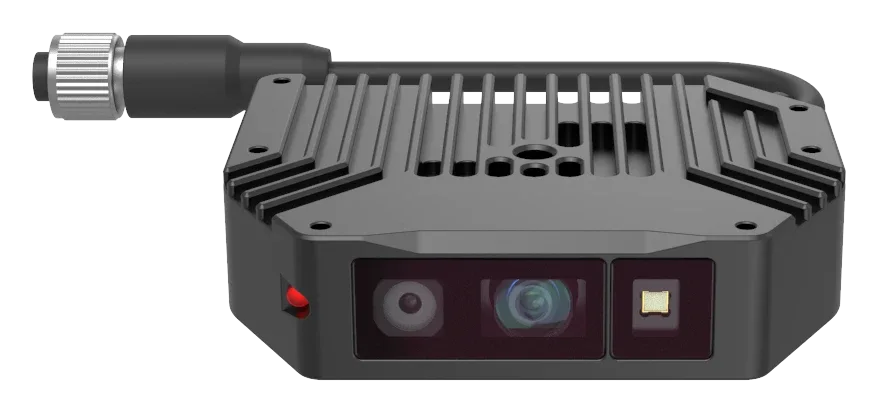

Compact direct time-of-flight depth camera for mobile-robot navigation and obstacle avoidance. Its wide field of view and ambient-light resistance support industrial and logistics sensing.

Model
TM265-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cooling method

Passive cooling

Manufacturer specification

TM265-E1-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

25fps@240*96(MAX)

Manufacturer specification

TM265-E1-Percipio.XYZ
Depth Resolution 25fps@240*96(MAX)

Depth technology

dToF

Manufacturer specification

TM265-E1-Percipio.XYZ
Technical Principles dToF

Dimensions

85 mm x 68 mm x 20 mm

Manufacturer specification

TM265-E1-Percipio.XYZ
Size 85 mm x 68 mm x 20 mm

Field of view

120°/50°

Manufacturer specification

TM265-E1-Percipio.XYZ
FOV(H/V) 120°/50°

Housing material

aluminium alloy

Manufacturer specification

TM265-E1-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

940nm

Manufacturer specification

TM265-E1-Percipio.XYZ
Laser wavelength 940nm

Ip rating

IP65

Manufacturer specification

TM265-E1-Percipio.XYZ
Ingress Protection IP65

Light source

1 x infrared laser

Manufacturer specification

TM265-E1-Percipio.XYZ
Light source 1 x infrared laser

Mounting

Mechanical fastening (M3 thread)

Manufacturer specification

TM265-E1-Percipio.XYZ
Installation Method Mechanical fastening (M3 thread)

Operating temperature

0 ℃ ~ 45 ℃

Manufacturer specification

TM265-E1-Percipio.XYZ
Temperature 0 ℃ ~ 45 ℃

Output formats

Depth map, colour image, infrared image, point cloud

Manufacturer specification

TM265-E1-Percipio.XYZ
Output image Depth map, colour image, infrared image, point cloud

Power consumption

< 5 W

Manufacturer specification

TM265-E1-Percipio.XYZ
Power Consumption < 5 W

Sdk

Vcamera SDK, supporting C++, C# and Python; Camport4 SDK, supporting C++

Manufacturer specification

TM265-E1-Percipio.XYZ
Software Development Kit Vcamera SDK, supporting C++, C# and Python; Camport4 SDK, supporting C++

Shutter type

ROlling

Manufacturer specification

TM265-E1-Percipio.XYZ
Shutter Type ROlling

Storage temperature

-30 ℃ ~ 60 ℃

Manufacturer specification

TM265-E1-Percipio.XYZ
Storage temperature -30 ℃ ~ 60 ℃

Supply voltage

DC 24V ±20%

Manufacturer specification

TM265-E1-Percipio.XYZ
Supply voltage DC 24V ±20%

Supported platforms

Linux/Windows/ROS

Manufacturer specification

TM265-E1-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

174 g

Manufacturer specification

TM265-E1-Percipio.XYZ
Weight 174 g
