Product details

Persee N1

Sensors and machine vision

Orbbec Inc.

Persee N1

About this product

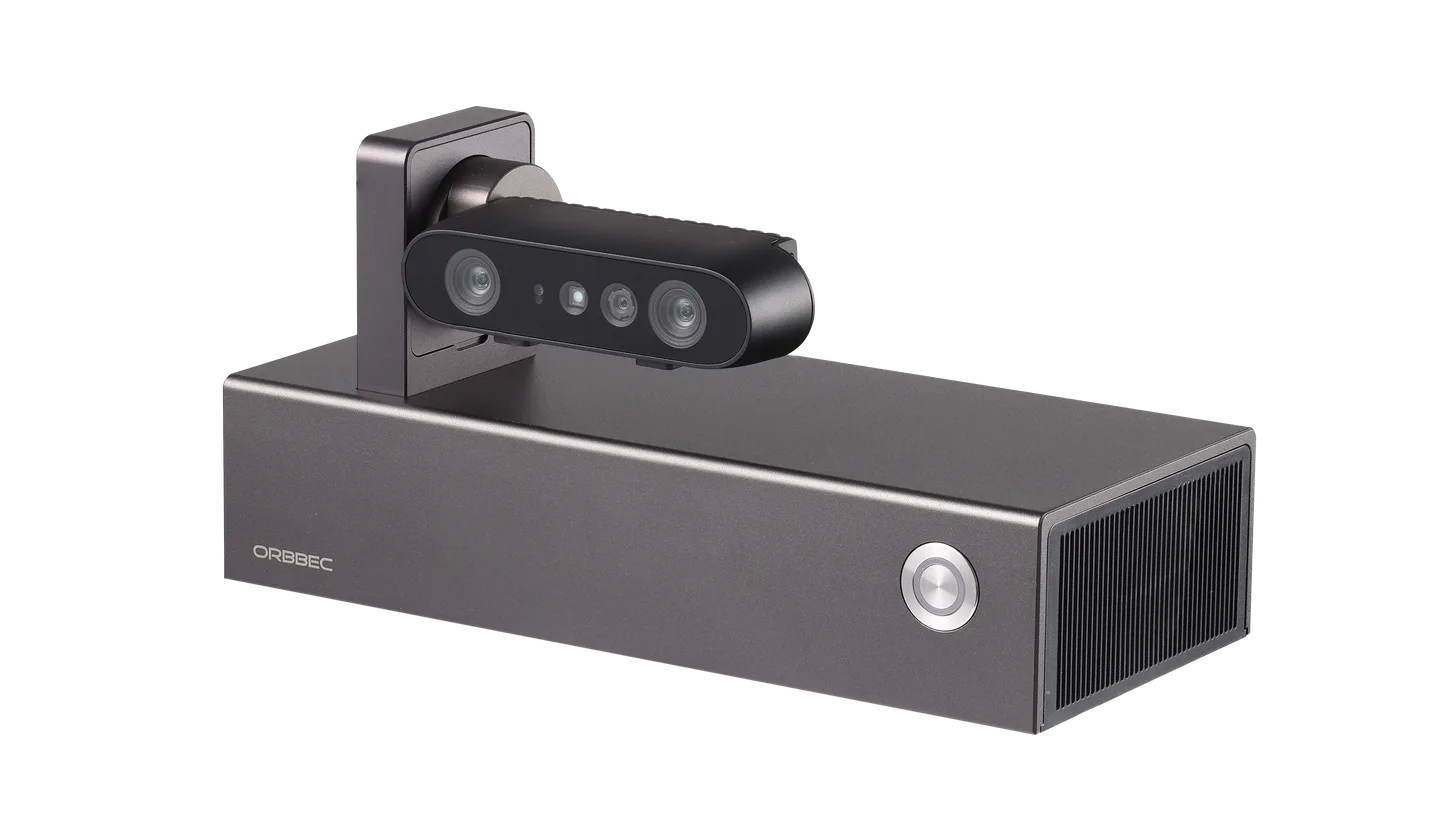

Persee N1 combines an Orbbec Gemini 2 stereo depth camera with a Jetson Nano computer for edge AI and robotics development. It provides depth and RGB sensing, Ubuntu and common peripheral interfaces in one camera-computer platform. Orbbec has announced end of marketing on December 30, 2026, with support scheduled through December 30, 2028.

Model
Persee N1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Depth fov

H91° V66°

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Depth FOV H91° V66°

Depth range

*0.15-10m

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Depth Range *0.15-10m

Depth resolution fps

Up to 1280X800@30fps

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Depth Resolution/FPS Up to 1280X800@30fps

Depth technology

Active Stereo IR

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Depth Technology Active Stereo IR

Dimensions w h d

200mm x 100mm x 90mm

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Dimensions (W*H*D) 200mm x 100mm x 90mm

End of marketing

2026-12-30

Manufacturer specification

Configuration: Manufacturer EOL schedule

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2026-06-17110308-ENPersee-N1-EOL-Announcement.pdf
EOL Announcement for Persee N1 Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Persee N1 . We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. June 10,2026 Milestone Date Remark EOL announcement 2026-06-10 EOL publicity date EOM 2026-12-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2028-12-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product. Including software and hardware problem support and update. Replacement product End of Life product Replacement product Persee N1 Gemini 2/335/336 +NVIDIA Jetson Nano

End of support

2028-12-30

Manufacturer specification

Configuration: Manufacturer EOL schedule

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2026-06-17110308-ENPersee-N1-EOL-Announcement.pdf
EOL Announcement for Persee N1 Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Persee N1 . We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. June 10,2026 Milestone Date Remark EOL announcement 2026-06-10 EOL publicity date EOM 2026-12-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2028-12-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product. Including software and hardware problem support and update. Replacement product End of Life product Replacement product Persee N1 Gemini 2/335/336 +NVIDIA Jetson Nano

Operating environment

Indoor/Semi-Outdoor; 5%-95%RH

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Operating Environment Indoor/Semi-Outdoor; 5%-95%RH

Ports

USB 3.0 Type-A x 2, USB 2.0 Type-A x 2, USB Type-C (Device Mode Only), Gigabit Ethernet with PoE, HDMI, DisplayPort, MicroSD, M.2 Expansion Slot

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Ports USB 3.0 Type-A x 2, USB 2.0 Type-A x 2, USB Type-C (Device Mode Only), Gigabit Ethernet with PoE, HDMI, DisplayPort, MicroSD, M.2 Expansion Slot

Power input

DC 12V/3A or PoE

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Power Input DC 12V/3A or PoE

Processor

NVIDIA Jetson Nano Quad Core ARM A57 @ 1.43 GHz Orbbec ASIC for Depth Processing

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Processor NVIDIA Jetson Nano Quad Core ARM A57 @ 1.43 GHz Orbbec ASIC for Depth Processing

Ram storage

4GB/16GB with expansion slot

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
RAM/Storage 4GB/16GB with expansion slot

Release date

2023-12-13

Manufacturer specification

Configuration: Manufacturer announcement body dateline; page header shows December 12, 2023. Body explicitly announces newly launched product.

Persee N1: 3D Vision Kit with NVIDIA Jetson
Troy, Mich, 13 December 2023 — Orbbec , an industry leader dedicated to 3D vision systems, has developed the Persee N1, an all-in-one combination of a popular stereo-vision 3D camera and a purpose-built computer based on the NVIDIA Jetson platform, and equipped with industry-standard interfaces for the most useful accessories and data connections. Developers using the newly launched camera-computer will also enjoy the benefits of the Ubuntu OS and OpenCV libraries. Orbbec recently became an NVIDIA Partner Network (NPN) Preferred Partne r .

Rgb fov

H86° V55°

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
RGB FOV H86° V55°

Rgb resolution fps

Up to 1920X1080@30fps

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
RGB Resolution/FPS Up to 1920X1080@30fps

Sdk support os

Orbbec SDK; Built-In Ubuntu 18.04

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
SDK Support/OS Orbbec SDK; Built-In Ubuntu 18.04

Wavelength

850nm

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Wavelength 850nm

Weight

986g

Manufacturer specification

Persee N1: 3D Camera Computer with Jetson | Orbbec
Weight 986g
