Product details

USD01-2550

Sensors and machine vision

Percipio

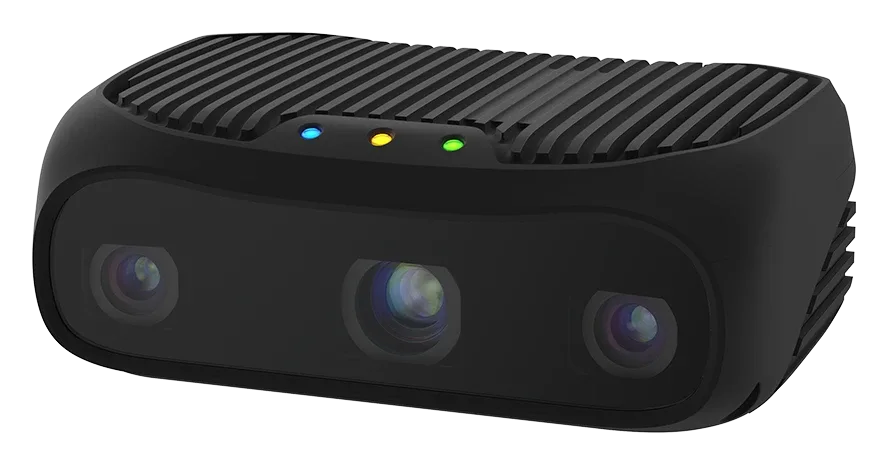

USD01-2550

About this product

Compact structured-light 3D camera for close-range identification, positioning and assembly guidance. HDR support and detailed point-cloud imaging suit eye-in-hand industrial vision.

Model
USD01-2550
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cooling method

Passive cooling

Manufacturer specification

USD01-2550-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

2064 x 1552 (MAX )

Manufacturer specification

USD01-2550-Percipio.XYZ
Depth Resolution 2064 x 1552 (MAX )

Depth technology

Stereo Fringe/Phase Structured Light

Manufacturer specification

USD01-2550-Percipio.XYZ
Technical Principles Stereo Fringe/Phase Structured Light

Dimensions

125 x 46 x 90 mm

Manufacturer specification

USD01-2550-Percipio.XYZ
Size 125 x 46 x 90 mm

Field of view

MAX 51°/39° ±3°

Manufacturer specification

USD01-2550-Percipio.XYZ
FOV(H/V) MAX 51°/39° ±3°

Housing material

aluminium alloy

Manufacturer specification

USD01-2550-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

Blue light (450 nm)

Manufacturer specification

USD01-2550-Percipio.XYZ
Laser wavelength Blue light (450 nm)

Ip rating

IP65

Manufacturer specification

USD01-2550-Percipio.XYZ
Ingress Protection IP65

Light source

LED

Manufacturer specification

USD01-2550-Percipio.XYZ
Light source LED

Mounting

Mechanical fastening

Manufacturer specification

USD01-2550-Percipio.XYZ
Installation Method Mechanical fastening

Operating temperature

0-40℃

Manufacturer specification

USD01-2550-Percipio.XYZ
Temperature 0-40℃

Output formats

Depth map, greyscale image, point cloud

Manufacturer specification

USD01-2550-Percipio.XYZ
Output image Depth map, greyscale image, point cloud

Power consumption

≤24W

Manufacturer specification

USD01-2550-Percipio.XYZ
Power Consumption ≤24W

Sdk

Vcamera + Camport4

Manufacturer specification

USD01-2550-Percipio.XYZ
Software Development Kit Vcamera + Camport4

Shutter type

Global

Manufacturer specification

USD01-2550-Percipio.XYZ
Shutter Type Global

Storage temperature

-10 ℃ ~ 55 ℃

Manufacturer specification

USD01-2550-Percipio.XYZ
Storage temperature -10 ℃ ~ 55 ℃

Supply voltage

DC 24 V

Manufacturer specification

USD01-2550-Percipio.XYZ
Supply voltage DC 24 V

Supported platforms

Linux/Windows/ROS

Manufacturer specification

USD01-2550-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

690 g

Manufacturer specification

USD01-2550-Percipio.XYZ
Weight 690g
