Product details

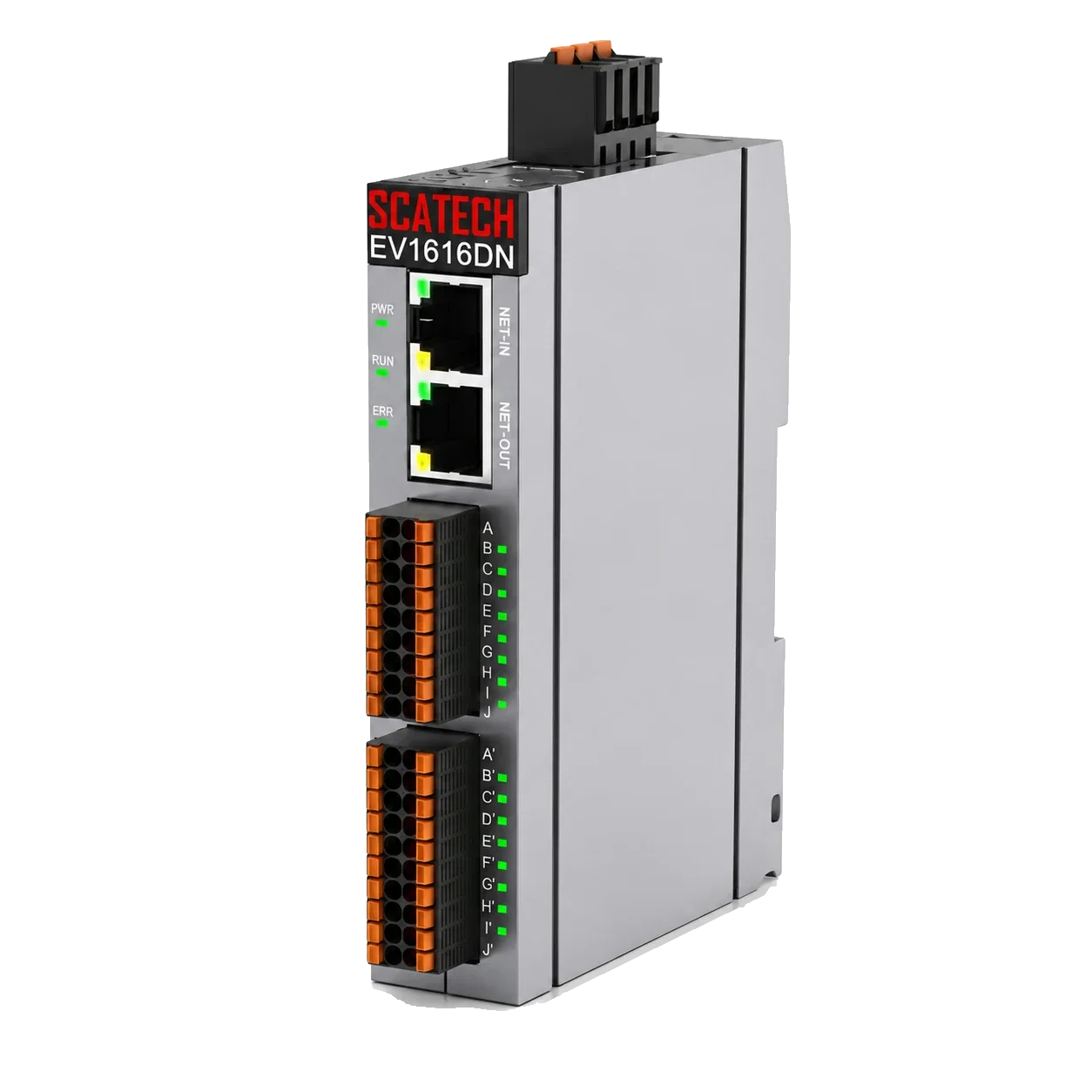

EV1616DN

Robot Control Boards and Computing Components

SCATECH

EV1616DN

About this product

EV1616DN is a EtherCAT digital I/O module with 16 input channels and 16 output channels for industrial control systems.

Model
EV1616DN
Category
Robot Control Boards and Computing Components, Components
Product stage
Commercial

Product family: EV digital I/O

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Communication cycle

250 us

Manufacturer specification

Configuration: EV1616DN; manufacturer-listed configuration; Dedicated exact-model web specification table.

EV1616DN | 立式独立型 EtherCAT 数字量 IO 产品参数与资料下载 | 软控(深圳)电气
通讯周期 250μs

Communication protocol

EtherCAT

Manufacturer specification

Configuration: EV1616DN; manufacturer-listed configuration; Dedicated exact-model web specification table.

EV1616DN | 立式独立型 EtherCAT 数字量 IO 产品参数与资料下载 | 软控(深圳)电气
通讯协议 EtherCAT

Input channels

16 channels

Manufacturer specification

Configuration: EV1616DN; manufacturer-listed configuration; Dedicated exact-model web specification table. Digital channels/ports.

EV1616DN | 立式独立型 EtherCAT 数字量 IO 产品参数与资料下载 | 软控(深圳)电气
输入通道 16 路数字量

Operating temperature

-20 to +60 °C

Manufacturer specification

Configuration: EV1616DN; manufacturer-listed configuration; Dedicated exact-model web specification table.

EV1616DN | 立式独立型 EtherCAT 数字量 IO 产品参数与资料下载 | 软控(深圳)电气
工作温度 -20°C~+60°C

Output channels

16 channels

Manufacturer specification

Configuration: EV1616DN; manufacturer-listed configuration; Dedicated exact-model web specification table. Digital channels/ports.

EV1616DN | 立式独立型 EtherCAT 数字量 IO 产品参数与资料下载 | 软控(深圳)电气
输出通道 16 路数字量

Output polarity

NPN

Manufacturer specification

Configuration: EV1616DN; Manufacturer-listed exact-model specification.

EV1616DN | 立式独立型 EtherCAT 数字量 IO 产品参数与资料下载 | 软控(深圳)电气
EtherCAT 立式数字量模块,16 路输入、16 路 NPN 输出,适合高密度控制柜 I/O 扩展。

Supply voltage

24 V

Manufacturer specification

Configuration: EV1616DN; manufacturer-listed configuration; Dedicated exact-model web specification table.

EV1616DN | 立式独立型 EtherCAT 数字量 IO 产品参数与资料下载 | 软控(深圳)电气
电源规格 24VDC
