Product details

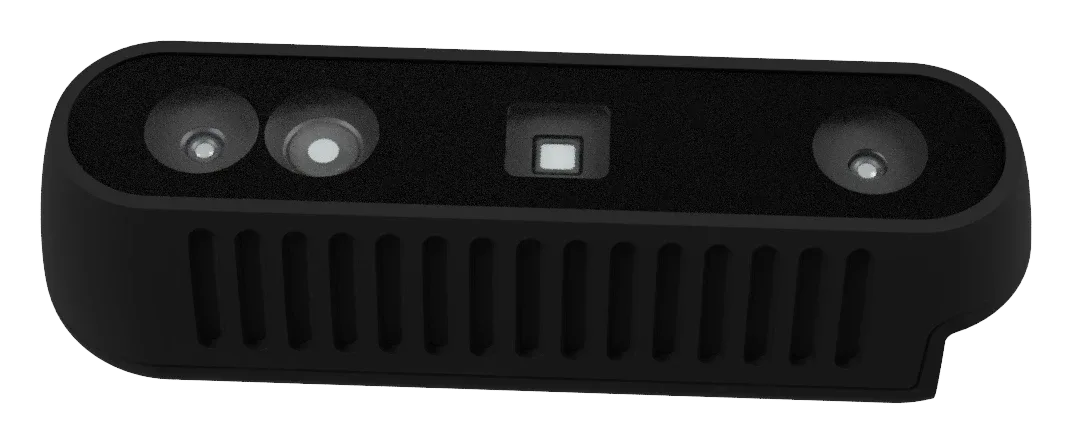

GM461-U2

Sensors and machine vision

Percipio

GM461-U2

About this product

USB Type-C active-stereo 3D camera for industrial, logistics, robotics and education applications. It supplies depth and color data in a compact enclosure.

Model
GM461-U2
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Baseline

58mm

Manufacturer specification

GM461-U2-Percipio.XYZ
Baseline 58mm

Cooling method

Passive cooling

Manufacturer specification

GM461-U2-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

30fps@640*400(MAX)

Manufacturer specification

GM461-U2-Percipio.XYZ
Depth Resolution 30fps@640*400(MAX)

Depth technology

Stereo Dot-Pattern Structured Light

Manufacturer specification

GM461-U2-Percipio.XYZ
Technical Principles Stereo Dot-Pattern Structured Light

Dimensions

90 mm x 25 mm x 25 mm

Manufacturer specification

GM461-U2-Percipio.XYZ
Size 90 mm x 25 mm x 25 mm

Field of view

72°/49°

Manufacturer specification

GM461-U2-Percipio.XYZ
FOV(H/V) 72°/49°

Housing material

aluminium alloy

Manufacturer specification

GM461-U2-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

940nm

Manufacturer specification

GM461-U2-Percipio.XYZ
Laser wavelength 940nm

Ip rating

IP5X

Manufacturer specification

GM461-U2-Percipio.XYZ
Ingress Protection IP5X

Light source

1 x infrared laser

Manufacturer specification

GM461-U2-Percipio.XYZ
Light source 1 x infrared laser

Mounting

Mechanical fastening (M3 thread)

Manufacturer specification

GM461-U2-Percipio.XYZ
Installation Method Mechanical fastening (M3 thread)

Operating temperature

-10 ℃ ~ 50℃

Manufacturer specification

GM461-U2-Percipio.XYZ
Temperature -10 ℃ ~ 50℃

Output formats

Depth map, colour image, infrared image, point cloud

Manufacturer specification

GM461-U2-Percipio.XYZ
Output image Depth map, colour image, infrared image, point cloud

Power consumption

< 3.5 W

Manufacturer specification

GM461-U2-Percipio.XYZ
Power Consumption < 3.5 W

Sdk

Percipio Camport SDK; supports programming languages such as C, C++, C# and Python

Manufacturer specification

GM461-U2-Percipio.XYZ
Software Development Kit Percipio Camport SDK; supports programming languages such as C, C++, C# and Python

Shutter type

Global

Manufacturer specification

GM461-U2-Percipio.XYZ
Shutter Type Global

Storage temperature

-20 ℃ ~ 55℃

Manufacturer specification

GM461-U2-Percipio.XYZ
Storage temperature -20 ℃ ~ 55℃

Supply voltage

Powered via a USB 2.0 Type-C cable

Manufacturer specification

GM461-U2-Percipio.XYZ
Supply voltage Powered via a USB 2.0 Type-C cable

Supported platforms

Linux/Windows/ROS

Manufacturer specification

GM461-U2-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

78g

Manufacturer specification

GM461-U2-Percipio.XYZ
Weight 78g
