Product details

42ZWWC80

Motion control and actuation

Jiangsu DINGS' Intelligent Control Technology Co., Ltd.

42ZWWC80

About this product

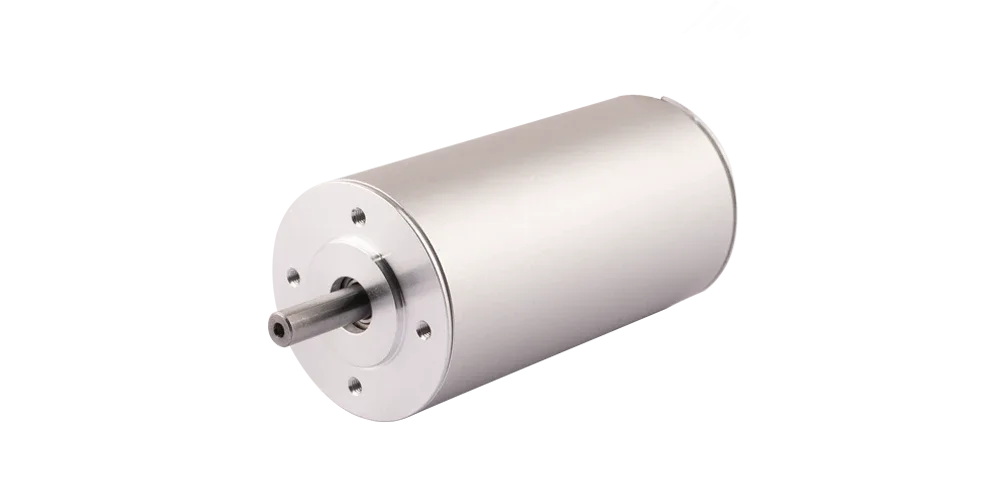

42ZWWC80 is a brushless coreless motor in the DINGS Brushless coreless motors portfolio. The manufacturer lists mass 500 g, rated voltage 18 V, rated power 66 W, rated torque 90 mN·m.

Model
42ZWWC80
Category
Motion control and actuation

Product family: DINGS Brushless coreless motors

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Mass

500 g

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
重量 g 500 500 500 500 500

No load speed

9,000 rpm

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
空载转速 RPM 9000 11000 13000 13800 6800

Peak current

45 A

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
峰值电流 A 45 53 60 51 109

Peak torque

828.41 mN·m

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
峰值转矩 mN·m 828.41 1152 1555.2 1455.16 3444.98

Phase inductance

0.085 mH

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
相电感 mH 0.085 0.14 0.14 0.23 0.035

Phase resistance

0.4 Ω

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
相电阻 Ω 0.4 0.45 0.6 0.95 0.22

Rated current

4.89 A

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
额定电流 A 4.89 4.17 3.47 4.17 5.7

Rated power

66 W

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
额定功率 W 66 80 100 160 102

Rated speed

6,678 rpm

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
额定速度 RPM 6678 8346 11619 12200 5400

Rated torque

90 mN·m

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
额定转矩 mN·m 90 90 90 120 180

Rated voltage

18 V

Manufacturer specification

Configuration: First listed winding; phase resistance 0.4 ohm; First winding column in the manufacturer table. The same base model has other windings; these values do not describe every winding.

鼎智智能控制科技官网_42系列无刷空心杯
额定电压 V 18 24 36 48 24
