Product details

XHAND 1

XHAND 1 灵巧手

Dexterous Hand

RobotEra

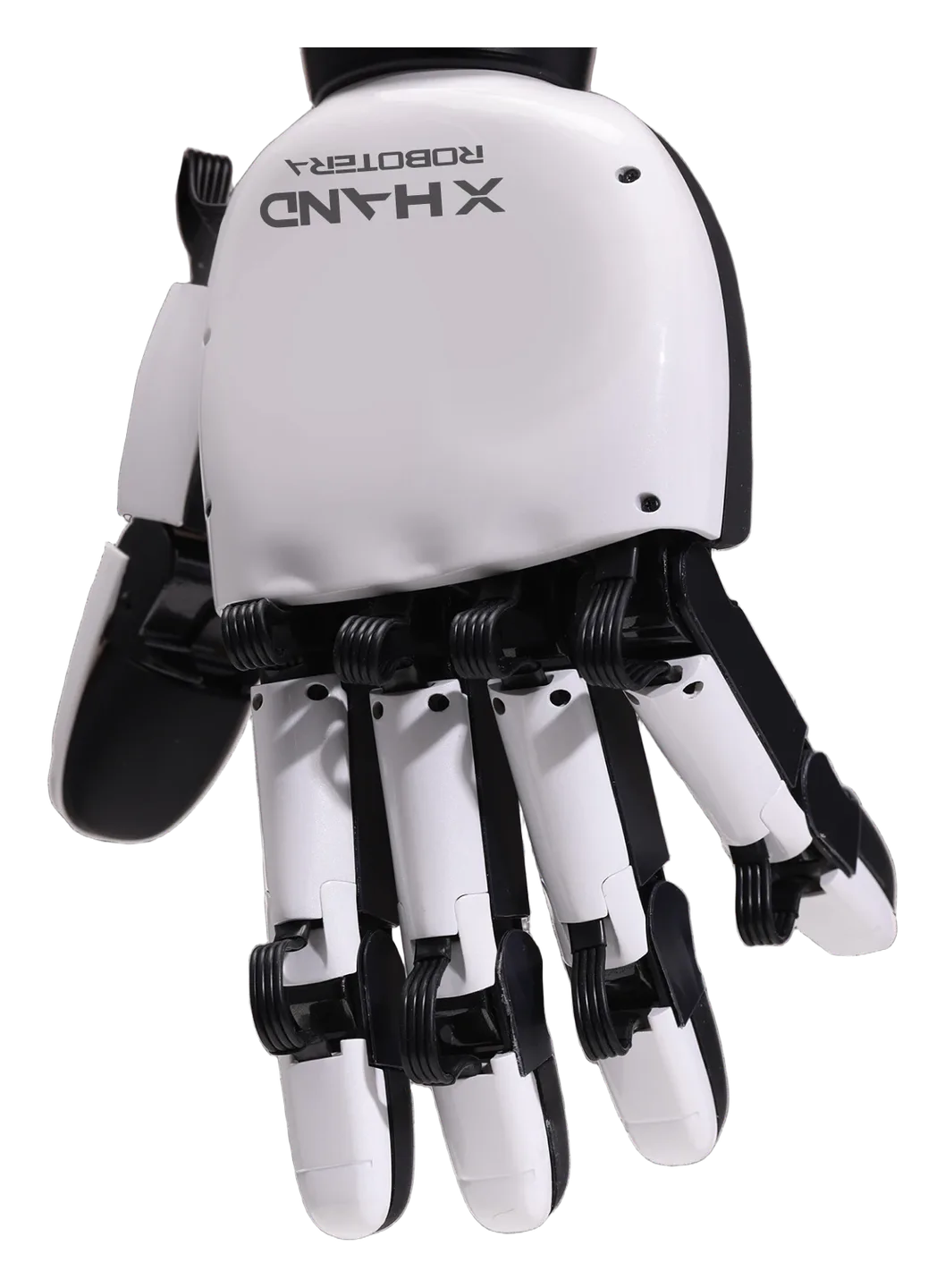

XHAND 1

About this product

XHAND 1 is Robotera's five-finger hand designed for AI research and robotic manipulation. Its 12 active degrees of freedom are distributed as three each in the thumb and index finger and two in each remaining finger. Motors and gears provide independent joint control, including index-finger lateral movement. Optional high-resolution tactile sensors provide three-dimensional contact-force and temperature information. The official brochure lists a 1.1 kg mass, Linux SDK and ROS-compatible applications, together with glove and visual-mapping teleoperation support for testing and training-data collection.

Model
XHAND 1
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

12

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Active DoF (Total)","value":"12"}

Backdrive damping

≤0.1 N·s/m

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Backdrive Damping","value":"≤0.1 N·s/m"}

Communication interface

RS485 (USB), EtherCAT

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Comm Interface","value":"RS485 (USB), EtherCAT"}

Communication rate

EtherCAT: 100 MHz; RS485: 2 MHz

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Comm Rate","value":["EtherCAT: 100 MHz","RS485: 2 MHz"]}

Control frequency

83 Hz

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Whole-hand Control Freq","value":"83 Hz"}

Control modes

Position (low/high damping), current-loop force control, force-position control

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Control Modes","value":"Position (low/high damping), current-loop force control, force-position control"}

Control parameters

Joint position, joint torque, joint stiffness, joint damping

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Control Params","value":"Joint position, joint torque, joint stiffness, joint damping"}

Degrees of freedom distribution

Thumb x 3; Index Finger x 3 ; Middle Finger x 2; Ring Finger x 2; Little Finger x 2

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"DoF Allocation","value":["Thumb x 3","Index Finger x 3 ","Middle Finger x 2","Ring Finger x 2","Little Finger x 2"]}

Dimensions

191 mm x 94 mm x 47 mm(The size of an adult’s hand)

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Dimensions (L x W x T)","value":"191 mm x 94 mm x 47 mm(The size of an adult’s hand)"}

Feedback

Fingertip: 5×120 (per finger) ×5 tactile 3D arrays; Joint: position, velocity, temperature, current (torque)

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Perception Params","value":["Fingertip: 5×120 (per finger) ×5 tactile 3D arrays","Joint: position, velocity, temperature, current (torque)"]}

Fingertip repeatability

±0.20 mm

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Fingertip Repeatability","value":"±0.20 mm"}

Fingertip shape

Rounded

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Fingertip Shape","value":"Rounded"}

Lateral range

-5~17°

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Side-sway Range","value":"-5~17°"}

Mass

1,100 g

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Weight","value":"1100g"}

Maximum current

2.5 A @ 48 V, 120 W

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Max Current","value":"2.5 A @ 48 V, 120 W"}

No load service life

1,000,000

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"No-load Grasp Cycles","value":"1,000,000"}

Open close frequency

>2 Hz

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Repeat Open/Close Speed","value":">2 Hz"}

Operating temperature

-20 °C ~ 60 °C

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Working Temp Range","value":"-20 °C ~ 60 °C"}

Operating voltage

24 V ~ 72 V

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Working Voltage","value":"24 V ~ 72 V"}

Passive degrees of freedom

0

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Passive DOF (Total)","value":"0"}

Quiescent current

0.15 A @ 48 V, 7 W

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Static Current","value":"0.15 A @ 48 V, 7 W"}

Tactile coverage

270° fingertip wrap (all five fingers)

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Sensor Coverage","value":"270° fingertip wrap (all five fingers)"}

Tactile sensing

5 finger arrays, 120 points each, 270° coverage; each point senses 3D force (tangential XY, normal Z), temperature, contact area, vibration, slip trend

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Tactile Spec","value":"5 finger arrays, 120 points each, 270° coverage; each point senses 3D force (tangential XY, normal Z), temperature, contact area, vibration, slip trend"}

Tactile sensor count

5 (270° 3D tactile arrays on all fingertips)

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Tactile Sensors","value":"5 (270° 3D tactile arrays on all fingertips)"}

Thumb opposition

Little finger

Reported claim

Source section: Official English model specifications embedded in the website application

ROBOTERA official English XHAND product data embedded in website application
{"name":"Max Thumb Opposition","value":"Little finger"}
