Product details

LG-603

Dexterous Hand

MINDSYNC TECH

LG-603

About this product

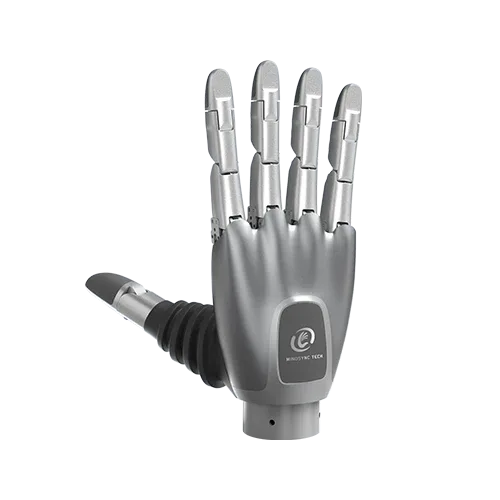

An industrial five-finger robotic hand positioned for compact integration and precise grasping.

Model
LG-603
Category
Dexterous Hand
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

6

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
主动自由度 6

Communication interfaces

CAN

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
通讯接口 CAN

Dimensions

203 × 82 × 40 mm

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
尺寸 203×82×40mm

Fingertip speed

360 °/s

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
指尖速度 360°/s

Mass

≤510 g

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
重量 ≤510g

Maximum current

5 A

Manufacturer specification

Supply voltage: 12 V

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
最大电流 5A@12V

Maximum finger grip force

15 N

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
最大单指握持力 15N

Maximum fingertip force

10 N

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
最大单指指尖力 10N

Maximum grip force

85 N

Manufacturer specification

Object diameter: 5 cm

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
握持力提升至85N(5cm直径时)

Minimum grasp diameter

1–2 mm

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
最小抓取直径下探至1-2mm

Operating voltage

12 ±10% V

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
工作电压 DC12V±10%

Passive degrees of freedom

10

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
被动自由度 10

Repeatability

±1 mm

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
重复定位精度 ±1mm

Static current

0.25 A

Manufacturer specification

Supply voltage: 12 V

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
静态电流 0.25A @12V

Static load capacity

25 kg

Manufacturer specification

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
静态负载 25kg

Tactile force resolution

0.1 N

Manufacturer specification

Configuration: Optional/custom tactile sensor and wrist configuration; Availability: Optional or custom; not standard equipment.

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
传感器分辨率 0.1N

Tactile sensor count

6

Manufacturer specification

Configuration: Optional/custom tactile sensor and wrist configuration; Availability: Optional or custom; not standard equipment.

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
力触觉传感器 6

Unloaded average current

0.15 A

Manufacturer specification

Supply voltage: 12 V

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
空载运动平均电流 0.15A@12V

Wrist degrees of freedom

2

Manufacturer specification

Configuration: Optional/custom tactile sensor and wrist configuration; Availability: Optional or custom; not standard equipment.

工业明星款·LG-603-灵巧手,五指灵巧手,轮式人形机器人-安徽中科灵犀科技有限公司
手腕自由度 2
