Product details

LTC-3000A

Motion control and actuation

LH-TC

LTC-3000A

About this product

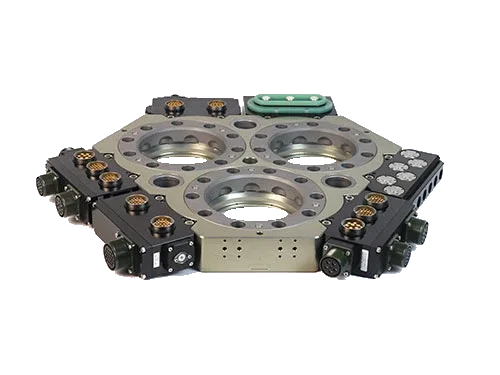

LTC-3000A is an automatic robot tool changer from LH-TC. The master plate mounts to the robot and the tool plate to the end effector. The published load, locking force and static moment limits apply to this model; optional transfer modules are acquired separately.

Model
LTC-3000A
Category
Motion control and actuation, Components, Grippers & End Effectors

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Allowable bending moment

18,000 N·m

Manufacturer specification

Exact model parameter table. Static limit.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
静态容许弯矩 Allowable static moment 18000N·m

Allowable torque

18,000 N·m

Manufacturer specification

Exact model parameter table. Static limit.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
静态容许扭矩 Allowable static torque 18000N·m

Ambient humidity

0-95 % RH

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
环境湿度 Humidity 0-95%

Body material

Aluminum alloy

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
本体 Main body 铝合金 Aluminum alloy

Combined thickness

126 mm

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
连接时厚度 Combined thickness 126mm

Envelope dimension

Triangular 411 mm

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
外形尺寸 Dimension 三角411mm

Locking force

130,200 N

Manufacturer specification

Exact model parameter table. At 0.49 MPa air pressure.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
锁紧力(当气压0.49Mpa时)Locking force 130200N

Locking material

Alloy steel

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
锁紧机构 Locking mechanism 合金钢 Alloy steel

Locking mechanism

Steel-ball locking

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
锁紧机构 Locking mechanism 钢珠锁紧 Locking steel ball

Master mass

39 kg

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
主盘侧 Master side 39kg

Master order code

F01160001

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
主盘 Master plate F01160001

Operating air pressure

0.4 to 0.8 MPa

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
工作驱动压力 Air pressure for working 0.4~0.8Mpa

Operating temperature

0-60 °C

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
环境温度 Temperature 0-60℃

Payload

3,000 kg

Manufacturer specification

Exact model parameter table. Recommended payload; does not by itself establish a dynamic acceleration profile.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
负载 Payload capacity 3000kg

Position repeatability

0.03 mm

Manufacturer specification

Exact model parameter table. Stated as ± value; measurement protocol not specified.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
位置重置精度 Position repeatability ±0.03mm

Tool mass

19 kg

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
工具侧 Tool side 19kg

Tool order code

F01160002

Manufacturer specification

Exact model parameter table.

LTC-3000A 机器人工具快换装置-郑州领航机器人有限公司
工具盘 Tool plate F01160002
