About this product

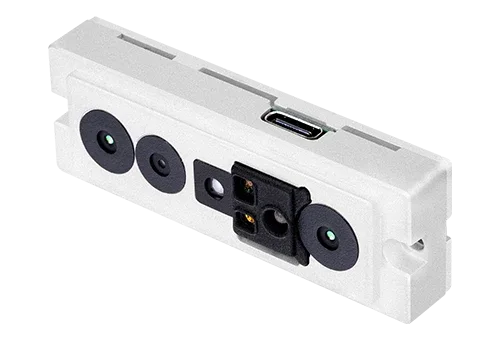

The original Gemini is an embedded active-stereo depth and color module for compact machine-vision integration. Its USB 3.0 interface and short working range support smart drones, autonomous navigation and obstacle avoidance. This legacy module is distinct from the later Gemini 2 and Gemini 330 cameras.

Model
Gemini
Category
Sensors and machine vision, Components
Product stage
Discontinued

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Baseline

40 mm

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
Baseline 40mm

Data interface

USB3.0Type-C

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
数据传输 USB3.0Type-C

Depth accuracy

1m:±5mm

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
精度 1m:±5mm

Depth fov

H67.9°V45.3°D78°±3.0°

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
深度视场角FOV H67.9°V45.3°D78°±3.0°

Depth range

0.25-2.5m

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
深度距离 0.25-2.5m

Depth resolution fps

USB2.0模式:1280x800@7fps;640x400@30fps USB3.0模式:1280x800@30fps;640x400@60fps

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
深度图分辨率 USB2.0模式:1280x800@7fps;640x400@30fps USB3.0模式:1280x800@30fps;640x400@60fps

Dimensions

65.3*22.5*12.3mm

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
尺寸 65.3*22.5*12.3mm

Laser safety

Class1

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
安全性 Class1

Power consumption

平均功耗:典型值2.2W;待机功耗:典型值0.9W;峰值功耗:典型值5W

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
功耗 平均功耗:典型值2.2W;待机功耗:典型值0.9W;峰值功耗:典型值5W

Power input

USB3.0Type-C

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
供电方式 USB3.0Type-C

Rgb fov

H71.5°V56.7°D84°

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
彩色视场角FOV H71.5°V56.7°D84°

Rgb resolution fps

USB2.0模式:1280*720@7fps;640x480@30fps USB3.0模式:1920*1080@30fps;1280*720@30fps 640x480@30fps;640*480@60fps

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
彩色图分辨率 USB2.0模式:1280*720@7fps;640x480@30fps USB3.0模式:1920*1080@30fps;1280*720@30fps 640x480@30fps;640*480@60fps

Supported os

Android/Linux/Windows7/8/10

Manufacturer specification

Configuration: Manufacturer Chinese exact-model technical table; units retained.

Gemini_结构光相机_结构光模组-奥比中光官网
支持操作系统 Android/Linux/Windows7/8/10
