Product details

PM805-E1

Sensors and machine vision

Percipio

PM805-E1

About this product

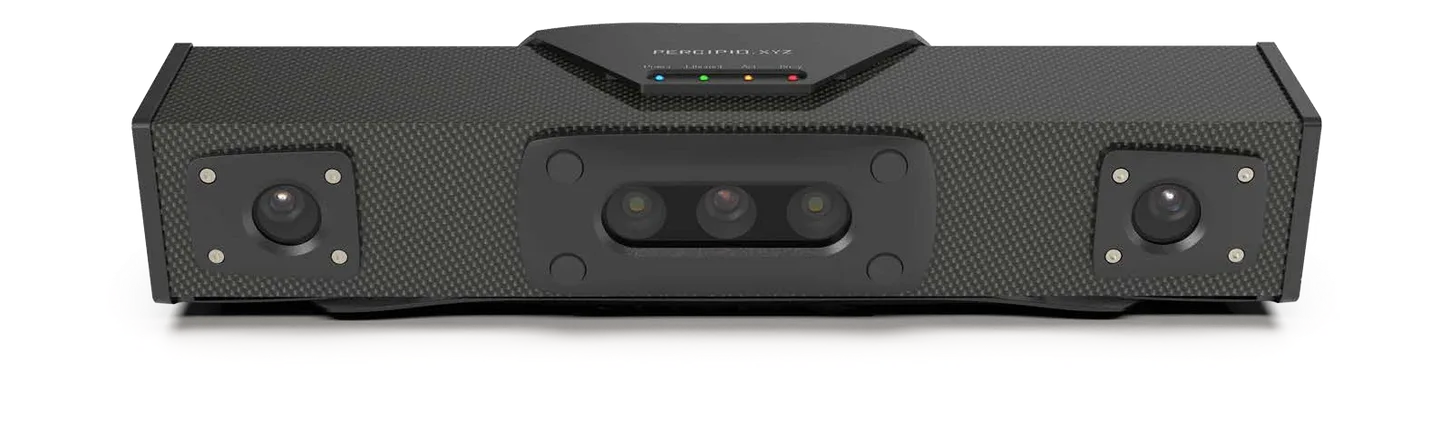

Industrial active-stereo depth camera with dual infrared lasers, RGB and point-cloud output. Gigabit Ethernet, PoE+ or 24 V power, hardware triggering and an IP54 housing support fixed industrial vision integration.

Model
PM805-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connector

M12 X-Code, 8-pin, female connector Gigabit Ethernet

Manufacturer specification

PM805-E1 manufacturer specifications
Data connector M12 X-Code, 8-pin, female connector Gigabit Ethernet

Depth frame rate and resolution

0.87 fps @ 1280 x 960 0.87 fps @ 640 x 480 0.87 fps @ 320 x 240

Manufacturer specification

Configuration: Manufacturer listed resolution/depth-quality combinations; operating-mode conditions in datasheet

PM805-E1 manufacturer specifications
Frame rate2 @ resolution (Depth) 0.87 fps @ 1280 x 960 0.87 fps @ 640 x 480 0.87 fps @ 320 x 240

Dimensions

388.4 mm x 85.5 mm x 89.6 mm

Manufacturer specification

Configuration: Dimensions (incl. connectors)

PM805-E1 manufacturer specifications
Dimensions (incl. connectors) 388.4 mm x 85.5 mm x 89.6 mm

Hardware trigger

Supports 1 trigger input + 1 trigger output

Manufacturer specification

PM805-E1 manufacturer specifications
Hardware trigger Supports 1 trigger input + 1 trigger output

Housing material

CFRP + aluminum alloy

Manufacturer specification

PM805-E1 manufacturer specifications
Housing material CFRP + aluminum alloy

Illumination

2 x infrared laser

Manufacturer specification

PM805-E1 manufacturer specifications
Light source 2 x infrared laser

Ingress protection

IP54

Manufacturer specification

PM805-E1 manufacturer specifications
Ingress protection IP54

Output data

Depth, RGB, IR, point cloud images

Manufacturer specification

PM805-E1 manufacturer specifications
Output data Depth, RGB, IR, point cloud images

Power consumption

Idle mode: 6.0 W Trigger mode: 14.0 W Continuous mode: 16.0 W

Manufacturer specification

PM805-E1 manufacturer specifications
Power consumption Idle mode: 6.0 W Trigger mode: 14.0 W Continuous mode: 16.0 W

Power supply

DC 24V ±10% PoE+ (IEEE 802.3at)

Manufacturer specification

PM805-E1 manufacturer specifications
Power supply DC 24V ±10% PoE+ (IEEE 802.3at)

Power trigger connector

M12 A-Code, 8-pin, male connector

Manufacturer specification

PM805-E1 manufacturer specifications
Power & trigger connector M12 A-Code, 8-pin, male connector

Rgb d alignment

Supported

Manufacturer specification

PM805-E1 manufacturer specifications
RGB-D alignment Supported

Sdk

Vcamera SDK: C++, C#, and Python Camport4 SDK: C++

Manufacturer specification

PM805-E1 manufacturer specifications
SDK Vcamera SDK: C++, C#, and Python Camport4 SDK: C++

Supported platforms

Linux/Windows/ROS

Manufacturer specification

PM805-E1 manufacturer specifications
Host computer Linux/Windows/ROS

Technology

Active stereo

Manufacturer specification

PM805-E1 manufacturer specifications
Technology Active stereo

Temperature

Recommended operating temperature: 22 ℃ ~ 25 ℃ Operating temperature: 0 ℃ ~ 45 ℃ Storage temperature: -10 ℃ ~ 55 ℃

Manufacturer specification

PM805-E1 manufacturer specifications
Temperature Recommended operating temperature: 22 ℃ ~ 25 ℃ Operating temperature: 0 ℃ ~ 45 ℃ Storage temperature: -10 ℃ ~ 55 ℃

Thermal dissipation

Passive

Manufacturer specification

PM805-E1 manufacturer specifications
Thermal dissipation Passive

Weight

1,930 g

Manufacturer specification

Configuration: Weight

PM805-E1 manufacturer specifications
Weight 1930 g

Working distance

Recommended: 900 mm ~ 3500 mm

Manufacturer specification

Configuration: Working distance

PM805-E1 manufacturer specifications
Working distance Recommended: 900 mm ~ 3500 mm
