Product details

PMD03-E1

Sensors and machine vision

Percipio

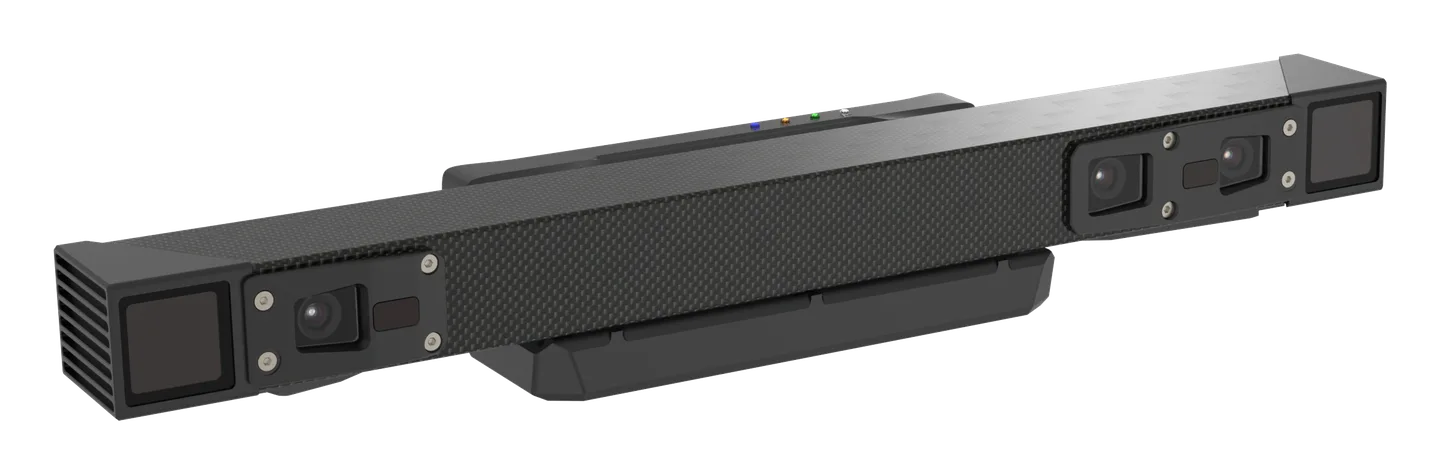

PMD03-E1

About this product

Long-baseline structured-light 3D camera for wide-field, long-range sensing in palletizing, depalletizing and random sorting. It outputs depth and color data over Gigabit Ethernet.

Model
PMD03-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Baseline

350 mm

Manufacturer specification

PMD03-E1-Percipio.XYZ
Baseline 350mm

Cooling method

Passive cooling

Manufacturer specification

PMD03-E1-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

1.54 fps @ 2048 x 1536 1.54 fps @ 1024 x 768 1.54 fps @ 512 x 384

Manufacturer specification

PMD03-E1-Percipio.XYZ
Depth Resolution 1.54 fps @ 2048 x 1536 1.54 fps @ 1024 x 768 1.54 fps @ 512 x 384

Depth technology

Stereo Dot-Pattern Structured Light

Manufacturer specification

PMD03-E1-Percipio.XYZ
Technical Principles Stereo Dot-Pattern Structured Light

Dimensions

480 mm x 84 mm x 65 mm

Manufacturer specification

PMD03-E1-Percipio.XYZ
Size 480 mm x 84 mm x 65 mm

Field of view

51°/41°

Manufacturer specification

PMD03-E1-Percipio.XYZ
FOV(H/V) 51°/41°

Housing material

Carbon fibre and aluminium alloy

Manufacturer specification

PMD03-E1-Percipio.XYZ
Housing Material Carbon fibre and aluminium alloy

Illumination wavelength

940 nm

Manufacturer specification

PMD03-E1-Percipio.XYZ
Laser wavelength 940nm

Ip rating

IP65

Manufacturer specification

PMD03-E1-Percipio.XYZ
Ingress Protection IP65

Light source

2 x infrared lasers (λ = 940 nm) 4 x infrared floodlights

Manufacturer specification

PMD03-E1-Percipio.XYZ
Light source 2 x infrared lasers (λ = 940 nm) 4 x infrared floodlights

Mounting

Mechanical fastening (M5 screw)

Manufacturer specification

PMD03-E1-Percipio.XYZ
Installation Method Mechanical fastening (M5 screw)

Operating temperature

<21.5W

Manufacturer specification

PMD03-E1-Percipio.XYZ
Temperature <21.5W

Output formats

Depth map, colour image, infrared image, point cloud

Manufacturer specification

PMD03-E1-Percipio.XYZ
Output image Depth map, colour image, infrared image, point cloud

Power consumption

<21.5W

Manufacturer specification

PMD03-E1-Percipio.XYZ
Power Consumption <21.5W

Sdk

Camport SDK 4 (C/C++)

Manufacturer specification

PMD03-E1-Percipio.XYZ
Software Development Kit Camport SDK 4 (C/C++)

Shutter type

Global

Manufacturer specification

PMD03-E1-Percipio.XYZ
Shutter Type Global

Storage temperature

-10 ℃~ 55 ℃

Manufacturer specification

PMD03-E1-Percipio.XYZ
Storage temperature -10 ℃~ 55 ℃

Supply voltage

DC 24V ±10%; PoE (IEEE802.3 at)

Manufacturer specification

PMD03-E1-Percipio.XYZ
Supply voltage DC 24V ±10%; PoE (IEEE802.3 at)

Supported platforms

Linux/Windows/ROS

Manufacturer specification

PMD03-E1-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

1,368 g

Manufacturer specification

PMD03-E1-Percipio.XYZ
Weight 1368g
