AK80-8 KV60

Motion control and actuation

Nanchang Kude Intelligent Technology Co., Ltd.

AK80-8 KV60

About this product

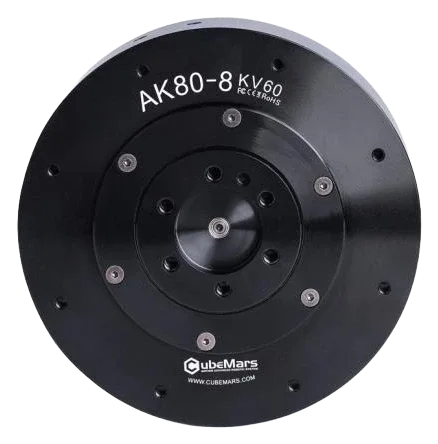

AK80-8 KV60 is a robotic actuator in the CubeMars AK portfolio. The manufacturer lists reduction ratio 8:01, mass 570 g, rated voltage 48 V, rated torque 10 Nm.

Model
AK80-8 KV60
Category
Motion control and actuation, Actuators & Joint Modules, Components

Product family: CubeMars AK

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Application

Legged Robot,Exoskeleton,AGV

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Application Legged Robot,Exoskeleton,AGV Peak torque (Nm) 25

Back drive

0.75 Nm

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Back drive(Nm) 0.75 Electrical time constant (ms) 0.5

Backlash

0.38 °

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Backlash (°) 0.38 Weight (g) 570

Basic load ratings n

2,000 dyn. C

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Basic load ratings (dyn. C ) N 2000 UART connector A1257WR-S-3P

Can connector

A1257WR-S-4P

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Noise dB 65CM away the motor 50 CAN connector A1257WR-S-4P

Driving way

FOC

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Driving way FOC Peak current (ADC) 21

Electrical time constant

0.5 ms

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Back drive(Nm) 0.75 Electrical time constant (ms) 0.5

Inertia

1,232.62 gcm²

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Phase 3 Inertia (gcm²) 1232.6191

Inner loop encoder type

Magnetic encoder

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Rated voltage (V) 48 Inner loop encoder type Magnetic encoder

Inner ring encoder resolution

14bit

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Rated torque (Nm) 10 Inner ring encoder resolution 14bit

Insulation class

C

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Insulation class C Ke (V/krpm) 19.8

Insulation high voltage

1000V 5mA/2s

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Insulation High-voltage 1000V 5mA/2s Phase to Phase resistance (mΩ) 430

Insulation resistance

1000V10MΩ

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Insulation resistance 1000V10MΩ Phase to Phase inductance (μH) 214

Ke

19.8 V/krpm

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Insulation class C Ke (V/krpm) 19.8

Km

0.3 Nm/√W

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Pole pairs 21 Km (Nm/√W) 0.3

Kt

0.199 Nm/A

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Winding type Star Kt (Nm/A) 0.199

Kv

60 rpm/V

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Operation ambient temperature -20℃~50℃ Kv (rpm/V) 60

Mass

570 g

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Backlash (°) 0.38 Weight (g) 570

Maximum torque weight ratio

35 Nm/kg

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Temperature sensor NTC MF51B 103F3950 Maximum torque weight ratio (Nm/kg) 35

Mechanical time constant

0.66 ms

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Reduction ratio 8:01 Mechanical time constant (ms) 0.66

Noise db 65cm away the motor

50

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Noise dB 65CM away the motor 50 CAN connector A1257WR-S-4P

Number of encoder

2

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Number of encoder 2

Operation ambient temperature

-20℃~50℃

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Operation ambient temperature -20℃~50℃ Kv (rpm/V) 60

Outer ring encoder resolution

15bit

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Rated current (ADC) 6.9 Outer ring encoder resolution 15bit

Outer ring encoder type

Magnetic encoder

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Rated speed (rpm) 243 Outer ring encoder type Magnetic encoder

Peak current

21 ADC

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Driving way FOC Peak current (ADC) 21

Peak torque

25 Nm

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Application Legged Robot,Exoskeleton,AGV Peak torque (Nm) 25

Phase

3

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Phase 3 Inertia (gcm²) 1232.6191

Phase to phase inductance

214 μH

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Insulation resistance 1000V10MΩ Phase to Phase inductance (μH) 214

Phase to phase resistance

430 mΩ

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Insulation High-voltage 1000V 5mA/2s Phase to Phase resistance (mΩ) 430

Pole pairs

21

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Pole pairs 21 Km (Nm/√W) 0.3

Power connector

XT30PW-M

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Basic load ratings (stat.C0) N 2520 Power connector XT30PW-M

Rated current

6.9 ADC

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Rated current (ADC) 6.9 Outer ring encoder resolution 15bit

Rated speed

243 rpm

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Rated speed (rpm) 243 Outer ring encoder type Magnetic encoder

Rated torque

10 Nm

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Rated torque (Nm) 10 Inner ring encoder resolution 14bit

Rated voltage

48 V

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Rated voltage (V) 48 Inner loop encoder type Magnetic encoder

Reduction ratio

8:01

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Reduction ratio 8:01 Mechanical time constant (ms) 0.66

Temperature sensor

NTC MF51B 103F3950

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Temperature sensor NTC MF51B 103F3950 Maximum torque weight ratio (Nm/kg) 35

Uart connector

A1257WR-S-3P

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Basic load ratings (dyn. C ) N 2000 UART connector A1257WR-S-3P

Winding type

Star

Manufacturer specification

Manufacturer core-data table for AK80-8 KV60; slash-separated values preserve the listed voltage/configuration order.

AK80-8 KV60 Robotic Actuator - 8:1 Ratio, 25Nm Peak Torque
Winding type Star Kt (Nm/A) 0.199
