Product details

PGE-8-14

Motion control and actuation

DH-Robotics Technology Co., Ltd.

PGE-8-14

About this product

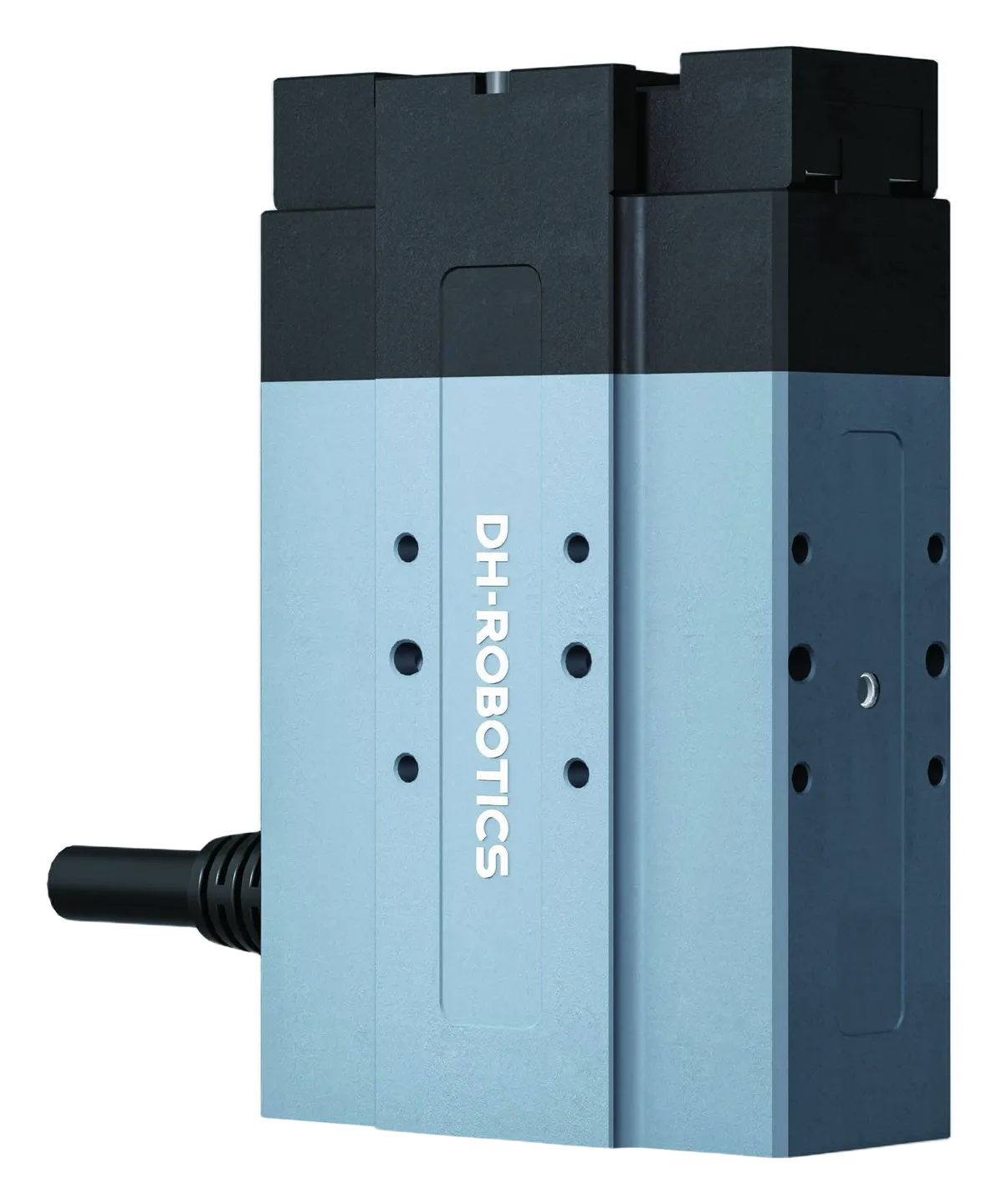

PGE-8-14 is a DH-Robotics slim electric parallel gripper. Its thin housing and adjustable gripping force support small-part handling, positioning and automated assembly.

Model
PGE-8-14
Category
Motion control and actuation, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Certification

CE,FCC,RoHS

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Certification | CE,FCC,RoHS

Communication interface

Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Communication interface | Standard: Modbus RTU (RS485), Digital I/O Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT

Dimensions

97 mm x 62 mm x 31 mm

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Size | 95 mm x 55 mm x 26 mm (without brake) 113.5 mm x 55 mm x 26 mm (with brake) | 97 mm x 62 mm x 31 mm

Driving method

Rack and pinion + Linear guide

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Driving method | Rack and pinion + Cross roller guide | Rack and pinion + Linear guide

Gripping force

2~8 N

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Force/stroke is per jaw, not the combined gripper value. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Gripping force (per jaw) | 0.8~5 N | 2~8 N

Ip class

IP 40

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
IP class | IP 40 | IP 40

Noise

< 50 dB

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Noise emission | < 50 dB

Opening closing time

0.3 s/0.3 s

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Opening/Closing time | 0.3 s/0.3 s | 0.3 s/0.3 s

Operating environment

0~40°C, under 85% RH

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Recommended environment | 0~40°C, under 85% RH

Peak current

0.7 A

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Peak current | 0.7 A | 0.7 A

Position repeatability

± 0.02 mm

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Repeat accuracy (position) | ± 0.02 mm | ± 0.02 mm

Rated current

0.4 A

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Rated current | 0.4 A | 0.4 A

Rated voltage

24 V DC ± 10%

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Rated voltage | 24 V DC ± 10% | 24 V DC ± 10%

Recommended workpiece weight

0.1 kg

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Recommended workpiece load; object geometry, friction, center of gravity and acceleration affect usable load. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Recommended workpiece weight | 0.1 kg | 0.1 kg

Stroke

14 mm

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Stroke | 26 mm | 14 mm

Weight

0.4 kg

Manufacturer specification

Manufacturer-stated specification; exact model column in the source table. Table column subject: PGE-8-14; source model header order: PGE-5-26, PGE-8-14.

Small Electric Gripper | PGE Series Mini Gripper | DH-Robotics (https://en.dh-robotics.com/product/pge)
Weight | 0.4 kg | 0.4 kg
