Product details

LTC-0630F

Motion control and actuation

LH-TC

LTC-0630F

About this product

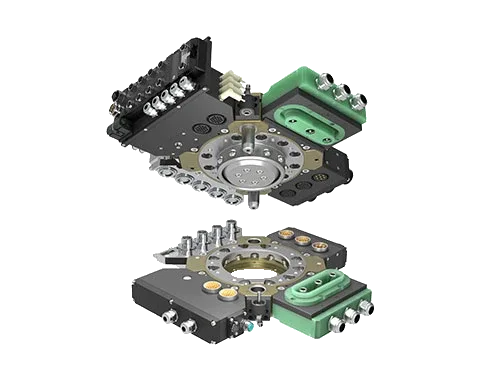

LTC-0630F is an automatic robot tool changer from LH-TC. The master plate mounts to the robot and the tool plate to the end effector. The published load, locking force and static moment limits apply to this model; optional transfer modules are acquired separately.

Model
LTC-0630F
Category
Motion control and actuation, Components, Grippers & End Effectors

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Allowable bending moment

5,000 N·m

Manufacturer specification

Exact model parameter table. Static limit.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
静态容许弯矩 Allowable static moment 5000N·m

Allowable torque

5,000 N·m

Manufacturer specification

Exact model parameter table. Static limit.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
静态容许扭矩 Allowable static torque 5000N·m

Ambient humidity

0-95 % RH

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
环境湿度 Humidity 0-95%

Body material

Aluminum alloy

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
本体 Main body 铝合金 Aluminum alloy

Combined thickness

100 mm

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
连接时厚度 Combined thickness 100mm

Envelope dimension

210 × 210 mm

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
外形尺寸 Dimension 210mm*210mm

Locking force

72,930 N

Manufacturer specification

Exact model parameter table. At 0.49 MPa air pressure.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
锁紧力(当气压0.49Mpa时)Locking force 72930N

Locking material

Alloy steel

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
锁紧机构 Locking mechanism 合金钢 Alloy steel

Locking mechanism

Steel-ball locking

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
锁紧机构 Locking mechanism 钢珠锁紧 Locking steel ball

Master mass

10.6 kg

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
主盘侧 Master side 10.6kg

Master order code

F01130004

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
主盘 Master plate F01130004

Maximum acceleration

50 m/s²

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
最大加速度 Maximum acceleration 50m/S 2

Operating air pressure

0.4 to 0.8 MPa

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
工作驱动压力 Air pressure for working 0.4~0.8Mpa

Operating temperature

0-60 °C

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
环境温度 Temperature 0-60℃

Payload

650 kg

Manufacturer specification

Exact model parameter table. Recommended payload; does not by itself establish a dynamic acceleration profile.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
负载 Payload capacity 650kg

Position repeatability

0.015 mm

Manufacturer specification

Exact model parameter table. Stated as ± value; measurement protocol not specified.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
位置重置精度 Position repeatability ±0.015mm

Tool mass

4.35 kg

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
工具侧 Tool side 4.35kg

Tool order code

F01130005

Manufacturer specification

Exact model parameter table.

LTC-0630F 机器人换枪盘-郑州领航机器人有限公司
工具盘 Tool plate F01130005
