Product details

GTRE-8

Motion control and actuation

Vieta

GTRE-8

About this product

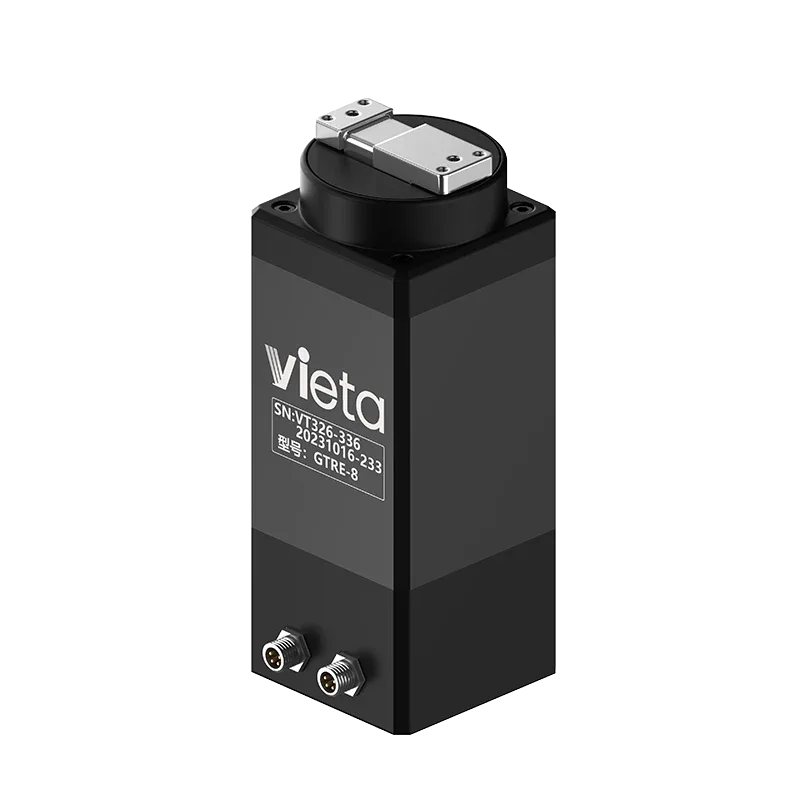

GTRE-8 is a Vieta rotary electric gripper for automated handling and machine or robotic end-effector integration. Its manufacturer page specifies the motion, electrical and mechanical limits below. Communication and mechanical customizations remain options of the named base model unless a separate model is explicitly identified.

Model
GTRE-8
Category
Motion control and actuation, Components, Grippers & End Effectors

Product family: GTRE series

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Communication protocols

Standard:Modbus RTU(RS485)

Manufacturer specification

Manufacturer table for GTRE-8. Standard and optional configurations retained; no separate protocol SKU inferred.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
通讯协议 标配:Modbus RTU(RS485)

Dimensions

151.5mmx58mmx58mm

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
尺寸 151.5mmx58mmx58mm

Gripping force

6~110N

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
夹持力 6~110N

Ingress protection

IP40

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
防护等级 IP40

Mass

1.48 kg

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
重量 1.48kg

Maximum recommended payload

3.3 kg

Manufacturer specification

Manufacturer table for GTRE-8. Maximum recommended load; page does not define full duty-cycle conditions.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
最大推荐负载* 3.3kg

Open close time

0.2s/0.2s

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
打开/闭合时间 0.2s/0.2s

Operating noise

<65dB

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
运行噪音 <65dB

Operating voltage

24VDC±10%

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
工作电压 24VDC士10%

Peak current

11.6 A

Manufacturer specification

Manufacturer table for GTRE-8. Peak duration is not specified.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
峰值电流 11.6A

Permissible moment mx

1.6 N·m

Manufacturer specification

Manufacturer table for GTRE-8. Static load/moment limit; not payload rating.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
Mx 1.6N.m

Permissible moment my

1.3 N·m

Manufacturer specification

Manufacturer table for GTRE-8. Static load/moment limit; not payload rating.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
My 1.3N.m

Permissible moment mz

2.3 N·m

Manufacturer specification

Manufacturer table for GTRE-8. Static load/moment limit; not payload rating.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
Mz 2.3N·m

Permissible static vertical load

120 N

Manufacturer specification

Manufacturer table for GTRE-8. Static load/moment limit; not payload rating.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
Fz 120N

Position repeatability

Rotation ±0.05°; gripper ±0.02mm

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
位置重复精度 旋转士0.05°夹爪士0.02mm

Rated current

3.3 A

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
额定电流 3.3A

Total stroke

8 mm

Manufacturer specification

Manufacturer table for GTRE-8.

GTRE-8-电动夹爪-广东赛韦达科技有限公司
总行程 8mm
