Product details

Gemini 336

Sensors and machine vision

Orbbec Inc.

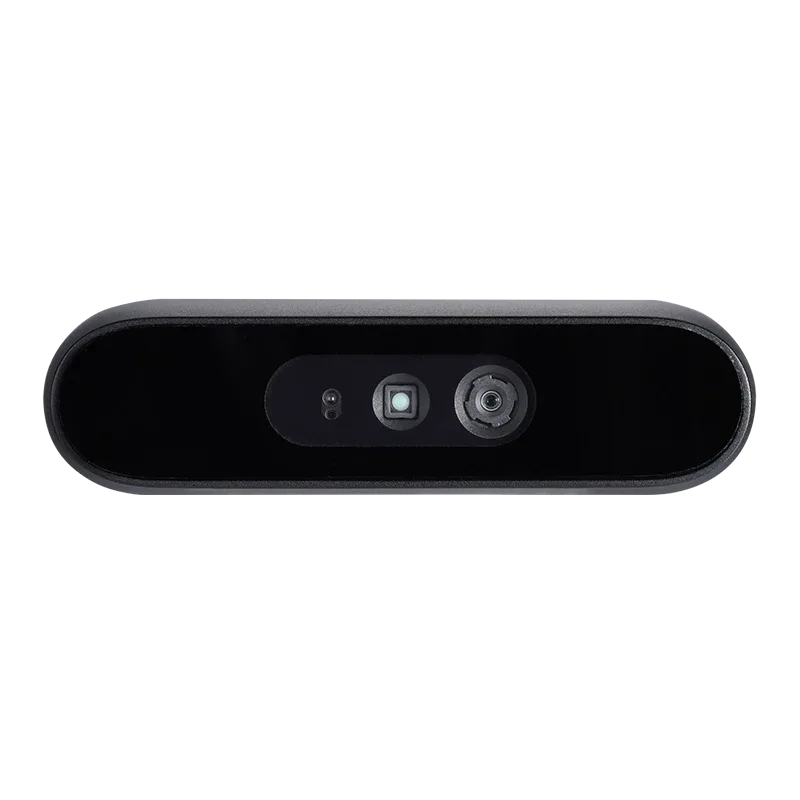

Gemini 336

About this product

Gemini 336 is a compact stereo RGB-D camera with an IR-pass filter that limits visible-light interference. It builds on Gemini 335 depth sensing and targets reflective indoor floors, sunlight and scenes with strong shadows. USB-C connectivity, onboard depth processing, an IMU and synchronization support mobile robots and outdoor delivery robots.

Model
Gemini 336
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

USB 3.0 Type-C

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Data Connection USB 3.0 Type-C

Data output

Point Cloud, Depth Map, IR & RGB

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Data Output Point Cloud, Depth Map, IR & RGB

Depth filter

IR-Pass

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Depth Filter IR-Pass

Depth fov

H90° V65°

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Depth FOV H90° V65°

Depth range

*0.10-20m+ (Optimal Range: 0.26-3m)

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Depth Range *0.10-20m+ (Optimal Range: 0.26-3m)

Depth resolution fps

Up to 1280X800@30fps

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Depth Resolution/FPS Up to 1280X800@30fps

Depth technology

Stereo

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Depth Technology Stereo

Dimensions w h d

90mm x 25mm x 30.7mm

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Dimensions (W*H*D) 90mm x 25mm x 30.7mm

Imu

Supported

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
IMU Supported

Operating environment

-10℃ - 45℃; Indoor/Outdoor; 5%-90%RH(non-condensing)

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Operating Environment -10℃ - 45℃; Indoor/Outdoor; 5%-90%RH(non-condensing)

Power consumption

Average <3.0W

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Power Consumption Average <3.0W

Power input

USB 3.0 Type-C

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Power Input USB 3.0 Type-C

Release date

2024-06-03

Manufacturer specification

Configuration: Manufacturer launch announcement

Gemini 330 Integrated with NVIDIA Isaac Platform
Troy, MI – June 3, 2024 – Orbbec , an industry leader dedicated to 3D vision systems, announced its Gemini 330 series Stereo Vision 3D cameras are now integrated with NVIDIA Isaac Perceptor , a reference workflow for autonomous mobile robots (AMRs) built on GPU-accelerated Isaac ROS .

Rgb fov

H86° V55°

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
RGB FOV H86° V55°

Rgb resolution fps

Up to 1920X1080@30fps

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
RGB Resolution/FPS Up to 1920X1080@30fps

Sdk support

Orbbec SDK

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
SDK Support Orbbec SDK

Wavelength

850 nm

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Wavelength 850nm

Weight

99 g

Manufacturer specification

Gemini 336: Stereo Vision Depth Camera | Orbbec
Weight 99g
