Product details

PG-98-9S-EC

Motion control and actuation

Unisunbot

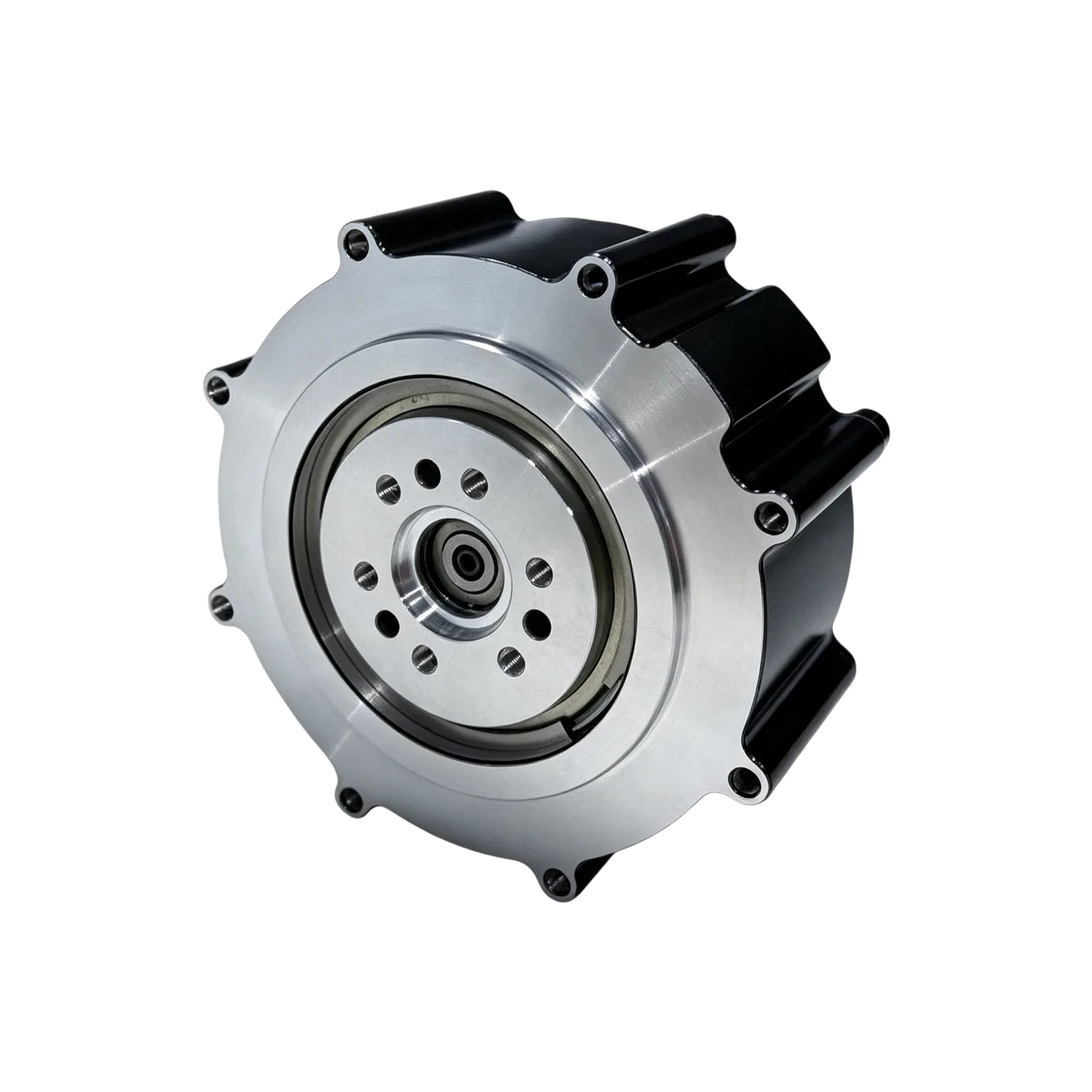

PG-98-9S-EC

About this product

An integrated PG-series robot joint module with 20 N·m rated torque and 60 N·m peak torque. The published rated output power is 380 W and mass is 900 g.

Model
PG-98-9S-EC
Category
Motion control and actuation, Components, Actuators & Joint Modules

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Ambient relative humidity

5–85 %

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Ambient temperature

−20 to 50 °C

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Axial length

54 mm

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Line inductance

0.275 mH

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Line resistance

0.39 Ω

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Mass

900 g

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Outer diameter

98 mm

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Peak speed

195 rpm

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification. Peak duration is not stated.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Peak torque

60 N·m

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification. Peak duration is not stated.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Rated output power

380 W

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Rated speed

180 rpm

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Rated torque

20 N·m

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm

Rated voltage

48 V

Manufacturer specification

Configuration: PG-98-9S-EC; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-98-9S-EC- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-98-9S-EC 额定输出功率 380 W 额定转速 180 rpm 峰值转速 195 rpm 线电阻 0.39Ω 线电感 0.275 mH 额定电压 48V 额定扭矩 20 Nm 峰值扭矩 60 Nm 环境温度 -20~50℃ 湿度 5~85% 重量 900 g 大小 Φ:98 mm H:54 mm
