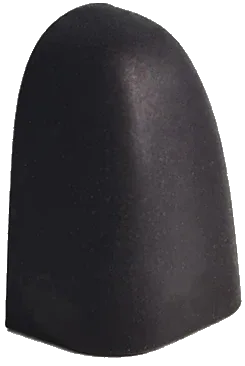

Fingertip Tactile Sensor

Sensors and machine vision

Chengdu Sharp Sensing

Fingertip Tactile Sensor

About this product

A flexible surface-mounted piezoresistive fingertip sensor with a 4 × 4 sensing array, digital output and automatic calibration.

Model
Fingertip Tactile Sensor
Category
Sensors and machine vision, Components, Sensors & Perception

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Automatic calibration

Supported

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Detection range

0–50 N

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Digital output

Supported

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Force resolution

0.01 N

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Operating temperature

0–80 °C

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Operating voltage

5 V

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Output frequency

50 Hz

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Repeat accuracy

<1% FS

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Sensing technology

Piezoresistive

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Spatial resolution

0.5 mm

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Structure

Flexible surface-mounted sensor

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V

Touch-point layout

4 × 4 fingertip array

Manufacturer specification

Configuration: Fingertip sensor; official technical table

Official Ruijue tactile-spec image
触点类型 4*4面阵列(指尖) 结构类型 表面贴附(柔性) 技术路线 压阻式 重复精度 <1%FS 空间分辨率 0.5mm 分辨率 0.01N 检测范围 0–50N 工作温度 0℃–80℃ 输出频率 50Hz 数字输出 具备 自动校准 具备 工作电压 5V
