Product details

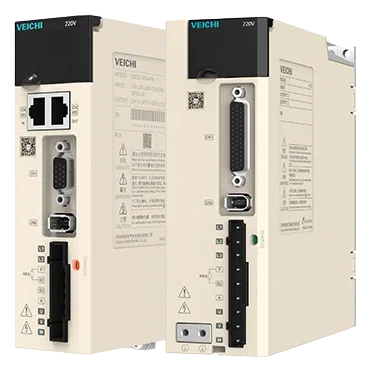

SD710

Components

VEICHI

SD710

About this product

General-purpose servo-drive family with automatic parameter adjustment and absolute-encoder compatibility. The compact structure supports machine integration.

Model
SD710
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

485

Standard

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
485 Standard

Altitude

Less than 1000m (1000m-2000m, need to reduce the rated value before use)

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Altitude Less than 1000m (1000m-2000m, need to reduce the rated value before use)

Can

Optional

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
CAN Optional

Command pulse

Command pulse shape:Including "pulse + direction", "CW + CCW pulse sequence", "A, B phase quadrature pulse" three command forms Input form:Linear drive, open collector Maximum input frequency:Differential Input: High Speed Max 4Mpps; Open Collector: Max 200Kpps

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Command pulse Command pulse shape:Including "pulse + direction", "CW + CCW pulse sequence", "A, B phase quadrature pulse" three command forms Input form:Linear drive, open collector Maximum input frequency:Differential Input: High Speed Max 4Mpps; Open Collector: Max 200Kpps

Display function

CHARGE, 8-segment LED*5 digits

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Display function CHARGE, 8-segment LED*5 digits

Encoder feedback

Serial encoder: absolute value encoder

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Encoder feedback Serial encoder: absolute value encoder

Encoder pulse frequency division output

Phase A, Phase B, Phase C: Linear drive output, frequency-divided pulse number: 35~32767

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Encoder pulse frequency division output Phase A, Phase B, Phase C: Linear drive output, frequency-divided pulse number: 35~32767

Feedforward compensation

0%~100%

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Feedforward compensation 0%~100%

Operating temperature

0°C~55°C (55°C~60°C can be used after derating)

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Operating temperature 0°C~55°C (55°C~60°C can be used after derating)

Panel operator function

Button switch*4

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Panel operator function Button switch*4

Protection class

IP20

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Protection class IP20

Regeneration

Function can be built-in/external

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Regeneration Function can be built-in/external

Soft start time setting

0s~10s (acceleration and deceleration can be set separately)

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Soft start time setting 0s~10s (acceleration and deceleration can be set separately)

Speed control range

1: 5000 (the lower limit in the speed control range is the value under the condition that the rated torque load does not stop)

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Speed control range 1: 5000 (the lower limit in the speed control range is the value under the condition that the rated torque load does not stop)

Speed volatility

Load fluctuation:±0.01% or less of rated speed (load fluctuation: 0%~100%) Voltage fluctuation:0% of rated speed (voltage fluctuation: ±10%) Temperature fluctuation:±0.01% or less of rated speed (temperature fluctuation: 25℃±25℃)

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Speed volatility Load fluctuation:±0.01% or less of rated speed (load fluctuation: 0%~100%) Voltage fluctuation:0% of rated speed (voltage fluctuation: ±10%) Temperature fluctuation:±0.01% or less of rated speed (temperature fluctuation: 25℃±25℃)

Storage temperature

-20℃~ 65℃

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Storage temperature -20℃~ 65℃

Torque control accuracy

±1% (reproducibility)

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
Torque control accuracy ±1% (reproducibility)

Usb

Computer host computer, standard configuration, in line with USB2.0 specification (12Mpps)

Manufacturer specification

Official series specification; qualifiers and component-specific conditions retained in the value.

VEICHI SD710 General Servo Drive
USB Computer host computer, standard configuration, in line with USB2.0 specification (12Mpps)
