Product details

SW7

Motion control and actuation

Nanchang Kude Intelligent Technology Co., Ltd.

SW7

About this product

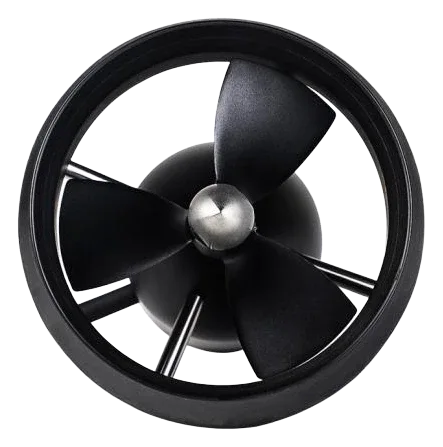

SW7 is a underwater thruster in the CubeMars SW portfolio. The manufacturer lists rated power 360W, rated voltage 36V, mass 700g(in the air) 395g(in the water).

Model
SW7
Category
Motion control and actuation, Motors & Drives, Components

Product family: CubeMars SW

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Applicable water depth

0-30M

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Applicable water depth 0-30M Driver External

Applications

Unmanned surface vehicle, Electric surfboard Handheld thruster,etc.

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Material of the nozzle POM Applications Unmanned surface vehicle, Electric surfboard Handheld thruster,etc.

Cable specifications

TPU(Matte) φ6.5mm- 3*18AWG- 1.5M

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Maximum mooring thrust ≥7kgf Cable specifications TPU(Matte) φ6.5mm- 3*18AWG- 1.5M

Driver

External

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Applicable water depth 0-30M Driver External

Environmental conditions

0-50℃(Storage) 0-40℃(Operating )

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Material of the shell Aluminum alloy Environmental conditions 0-50℃(Storage) 0-40℃(Operating )

Main body structure

Two-stage sealing chamber

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Rated voltage 36V Main body structure Two-stage sealing chamber

Main shaft sealing method

Low-resistance dynamic seal

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Rated power 360W Main shaft sealing method Low-resistance dynamic seal

Mass

700g(in the air) 395g(in the water)

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Material of the propeller Aluminum alloy Weight 700g(in the air) 395g(in the water)

Material of the nozzle

POM

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Material of the nozzle POM Applications Unmanned surface vehicle, Electric surfboard Handheld thruster,etc.

Material of the propeller

Aluminum alloy

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Material of the propeller Aluminum alloy Weight 700g(in the air) 395g(in the water)

Material of the shell

Aluminum alloy

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Material of the shell Aluminum alloy Environmental conditions 0-50℃(Storage) 0-40℃(Operating )

Maximum mooring thrust

≥7kgf

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Maximum mooring thrust ≥7kgf Cable specifications TPU(Matte) φ6.5mm- 3*18AWG- 1.5M

Motor rotor pole number

24P

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Motor rotor pole number 24P Recommended ESC matching TW-40A-12S

Propeller specifications

φ80mm

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Propeller specifications φ80mm Usage tips Rinse with clean water promptly after use.

Rated power

360W

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Rated power 360W Main shaft sealing method Low-resistance dynamic seal

Rated voltage

36V

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Rated voltage 36V Main body structure Two-stage sealing chamber

Recommended esc matching

TW-40A-12S

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Motor rotor pole number 24P Recommended ESC matching TW-40A-12S

Usage tips

Rinse with clean water promptly after use.

Manufacturer specification

Manufacturer core-data table for SW7; slash-separated values preserve the listed voltage/configuration order.

SW7 Underwater Thruster-700g, 30m Diving Depth
Propeller specifications φ80mm Usage tips Rinse with clean water promptly after use.
