Product details

YITA-84P-C

Motion control and actuation

YITA Dynamics

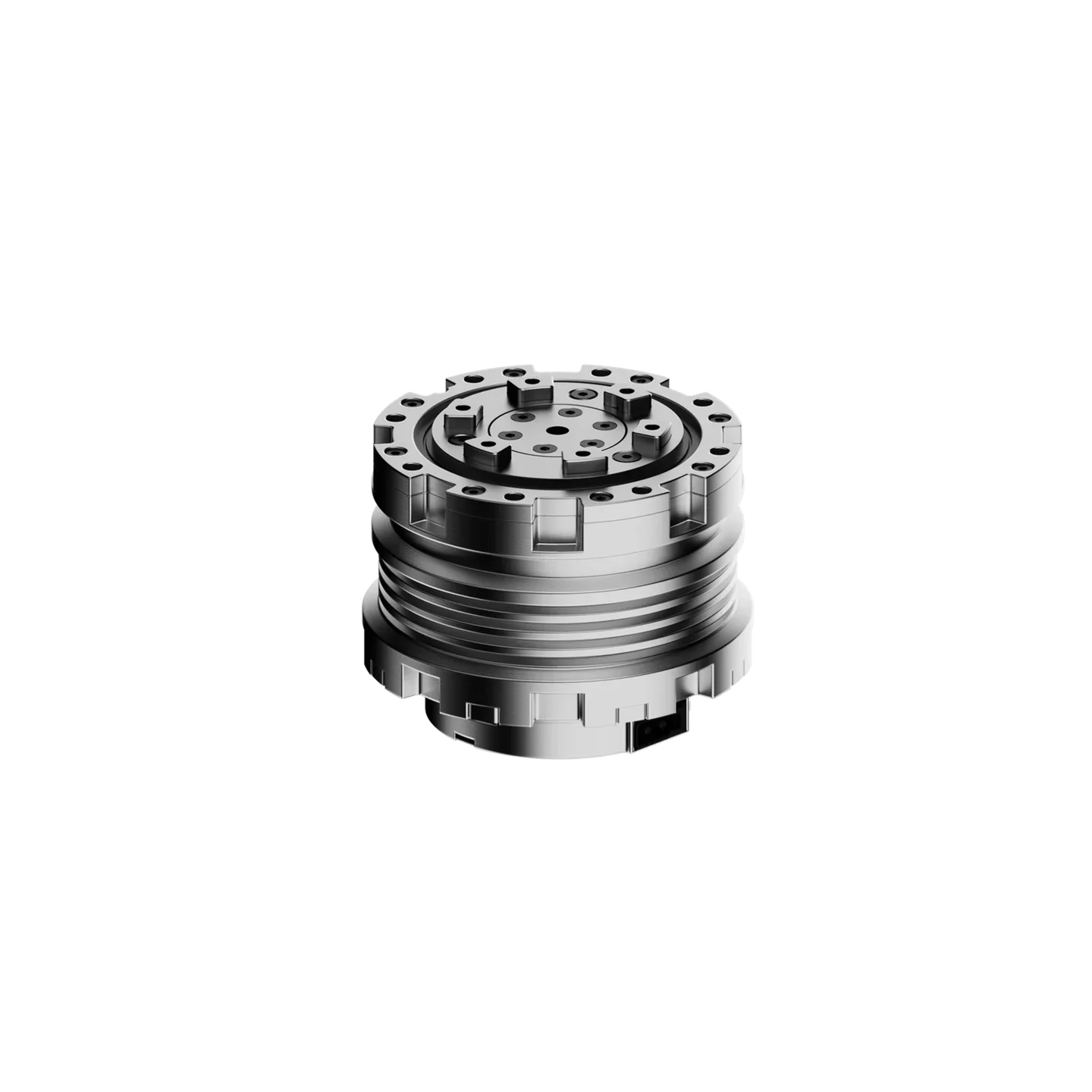

YITA-84P-C

About this product

An integrated robot joint module in YITA Dynamics’ C series, combining precision transmission, drive control and dual absolute-encoder feedback. This model has a 12 N·m rated torque, 60 N·m peak torque and 0.7 kg mass. It supports EtherCAT and CAN FD and includes a through-bore for routing.

Model
YITA-84P-C
Category
Motion control and actuation, Components, Actuators & Joint Modules, Motors & Drives

Product family: YITA P-C joint modules

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Backdrive torque

0.6 N·m

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Communication interfaces

EtherCAT & CAN FD

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Control accuracy

<0.01°

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Dimensions

D84 × 67 mm

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Encoder configuration

Dual encoder, ABS 17-bit input / 19-bit output

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Hollow bore diameter

4.5 mm

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Input voltage

48 V

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Insulation class

F

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Mass

0.7 kg

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

No load speed

254 RPM

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Peak torque

60 N·m

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification; no independent test result. Peak-performance duration and thermal conditions are not supplied.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Peak torque density

86 Nm/kg

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification; no independent test result. Peak-performance duration and thermal conditions are not supplied.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Rated output power

0.28 kW

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Rated speed

231 RPM

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Rated torque

12 N·m

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Rated torque density

17 Nm/kg

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Reduction ratio

21.5686

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp

Rotational inertia

2.809 kg·cm²

Manufacturer specification

Configuration: YITA-84P-C; Manufacturer specification for this exact model; no independent test result.

YITA Dynamics official public product and company data
YITA-84P-C 减速比:21.5686 外形尺寸:D84 × 67 mm 中空大小:4.5 mm 输入电压:48 V 空载转速:254 RPM 额定转速:231 RPM 额定转矩:12 N·m 额定输出功率:0.28 kW 峰值扭矩:60 N·m 反驱力矩:0.6 N·m 转动惯量:2.809 kg·cm² 额定扭矩密度:17 Nm/kg 峰值扭矩密度:86 Nm/kg 编码器类型:Dual encoder, ABS 17-bit input / 19-bit output 控制精度:<0.01° 通讯方式:EtherCAT & CAN FD 重量:0.7 kg 绝缘等级:F Product image: /media/yita-84p-c.webp
