Product details

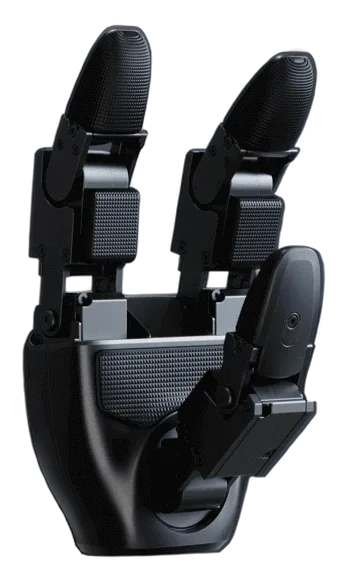

Dex3-1

Dex3-1 灵巧手

Dexterous Hand

Unitree Robotics

Dex3-1

About this product

Dex3-1 is Unitree's three-finger dexterous hand for force-and-position-controlled manipulation and data collection with the G1 humanoid. Seven degrees of freedom are driven by six direct-drive joints and one geared joint. The official specification lists 33 pressure-sensing points, a 710 g mass and USB 2.0 communication at a stated 1 kHz rate. Joint position, velocity, torque and tactile feedback support application development. The manufacturer supplies open-source resources and a user manual, while its load and repeatability figures apply to the documented testing conditions.

Model
Dex3-1
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Communication frequency

1,000 Hz

Reported claim

Parameter label: Communication rate

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Communication rate 1000Hz

Communication interface

USB2.0

Reported claim

Parameter label: Communication Interface

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Communication Interface USB2.0

Communication packet size

Sender:1234 bytes Receiver:1270 bytes

Reported claim

Parameter label: The number of bytes in a full packet

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
The number of bytes in a full packet Sender:1234 bytes Receiver:1270 bytes

Control modes

Joint Mode, Joint Position, Joint Velocity, Joint Torque, Joint Stiffness Coefficient, Joint Damping Coefficient

Reported claim

Parameter label: Control feedback

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Control feedback Joint Mode, Joint Position, Joint Velocity, Joint Torque, Joint Stiffness Coefficient, Joint Damping Coefficient

Degrees of freedom

Thumb x 3 Index Finger x 2 Middle Finger x 2

Reported claim

Parameter label: Degrees of Freedom

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Degrees of Freedom Thumb x 3 Index Finger x 2 Middle Finger x 2

Dimensions

175mm x 88mm x 77mm

Reported claim

Parameter label: Size

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Size 175mm x 88mm x 77mm

Feedback

Joint Mode, Joint Position, Joint Velocity, Joint Torque, Joint Temperature, Voltage and Current, Sensor Pressure Value, Sensor Temperature Value, imu Data

Reported claim

Parameter label: Perceptual feedback

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Perceptual feedback Joint Mode, Joint Position, Joint Velocity, Joint Torque, Joint Temperature, Voltage and Current, Sensor Pressure Value, Sensor Temperature Value, imu Data

Fingertip repeatability

±2mm

Reported claim

Parameter label: Fingertip Repeat Positioning Accuracy

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Fingertip Repeat Positioning Accuracy ±2mm

Joint angle range

Thumb Joint 0: -60°~60° Thumb Joint 1: -35°~60° The Thumb Joint 2: 0 to 100° Index Finger Joint 0: 0 °~90° Index Finger Joint 1: 0 °~100° Middle Finger Joint 0: 0 °~90° Middle Finger Joint 1: 0 °~100°

Reported claim

Parameter label: Angle of Joint

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Angle of Joint Thumb Joint 0: -60°~60° Thumb Joint 1: -35°~60° The Thumb Joint 2: 0 to 100° Index Finger Joint 0: 0 °~90° Index Finger Joint 1: 0 °~100° Middle Finger Joint 0: 0 °~90° Middle Finger Joint 1: 0 °~100°

Mass

710 g

Reported claim

Parameter label: Weight

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Weight 710g

Maximum current

10 A

Reported claim

Parameter label: Maximum Current

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Maximum Current 10A

Operating temperature

-20℃ ~ 60℃

Reported claim

Parameter label: Working Temperature Range

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Working Temperature Range -20℃ ~ 60℃

Operating voltage

12~58V

Reported claim

Parameter label: Working Voltage

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Working Voltage 12~58V

Payload palm down

The Maximum Weight is 500g The Maximum Power Is: 400W@3s

Reported claim

Parameter label: Load Conditions ( Palm Facing Down At Room Temperature, Grasping A 5cm Round Hard Object)

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Load Conditions ( Palm Facing Down At Room Temperature, Grasping A 5cm Round Hard Object) The Maximum Weight is 500g The Maximum Power Is: 400W@3s

Payload palm left

The Maximum Weight is 500g The Maximum Power Is: 400W@3s

Reported claim

Parameter label: Load Condition (Palm Facing Left At Room Temperature, Grasping A 5cm Round Hard Object)

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Load Condition (Palm Facing Left At Room Temperature, Grasping A 5cm Round Hard Object) The Maximum Weight is 500g The Maximum Power Is: 400W@3s

Pressure sensor count

9 (Total of 33 Pressure Sensors)

Reported claim

Parameter label: Number of Pressure Sensors

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Number of Pressure Sensors 9 (Total of 33 Pressure Sensors)

Quiescent current

58V @ 0.2A

Reported claim

Parameter label: Static Current

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Static Current 58V @ 0.2A

Tactile array layout

2 x 2 (Palm) x 3 2 x 2 (Single Finger Pad) x 3 3 x 1 (Single Fingertip) x 3

Reported claim

Parameter label: Array resolution

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Array resolution 2 x 2 (Palm) x 3 2 x 2 (Single Finger Pad) x 3 3 x 1 (Single Fingertip) x 3

Tactile maximum undamaged load

20 kg

Reported claim

Parameter label: Maximum Acceptance (Unamaged)

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Maximum Acceptance (Unamaged) 20kg

Tactile range

10g-2500g

Reported claim

Parameter label: Range of Perception

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Range of Perception 10g-2500g

Transmission mechanism

6 Motors Drive Directly 1 Motor Drive with Gears

Reported claim

Parameter label: Transmission Mechanism

Unitree Dex3-1 Power Control Dexterous Hand, Operate Everything - Unitree Robotics
Transmission Mechanism 6 Motors Drive Directly 1 Motor Drive with Gears
