Product details

RH56E2

RH56E2 灵巧手

Dexterous Hand

INSPIRE ROBOTS

RH56E2

About this product

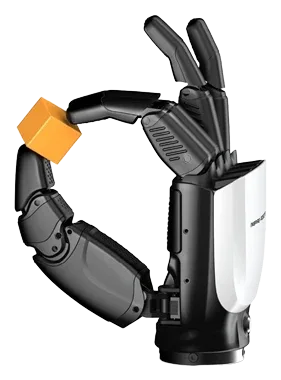

RH56E2 is INSPIRE ROBOTS' five-finger hand combining six actuated degrees of freedom, 12 joints and force feedback for robotic grasping. The official table specifies six force sensors and a configuration-dependent complement of five to 17 tactile sensor modules. The manufacturer describes power-off self-locking and startup without a homing operation. Modbus TCP and CAN are listed interfaces, with RS485 optional. Published figures include a 790 ±10 g mass, ±0.2 mm repeatability and a 30 N maximum fingertip output, which should be interpreted as manufacturer specifications for the stated configuration.

Model
RH56E2
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Closing time

0.8S

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Hand closing time

RH56E2 - INSPIRE ROBOTS
Hand closing time 0.8S 0.8S

Closing time

0.8S

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Hand closing time

RH56E2 - INSPIRE ROBOTS
Hand closing time 0.8S 0.8S

Communication interface

RS485、CAN、ModbusTCP

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Control interface

RH56E2 - INSPIRE ROBOTS
Control interface RS485、CAN、ModbusTCP RS485、CAN、ModbusTCP

Communication interface

RS485、CAN、ModbusTCP

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Control interface

RH56E2 - INSPIRE ROBOTS
Control interface RS485、CAN、ModbusTCP RS485、CAN、ModbusTCP

Degrees of freedom

6

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Degrees of freedom

RH56E2 - INSPIRE ROBOTS
Degrees of freedom 6 6

Degrees of freedom

6

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Degrees of freedom

RH56E2 - INSPIRE ROBOTS
Degrees of freedom 6 6

Finger fingertip force

28 N

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Fingertip Strength

RH56E2 - INSPIRE ROBOTS
Fingertip Strength 28N 28N

Finger fingertip force

28 N

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Fingertip Strength

RH56E2 - INSPIRE ROBOTS
Fingertip Strength 28N 28N

Finger flexion speed

>200°/s

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Flexion speed of four finger

RH56E2 - INSPIRE ROBOTS
Flexion speed of four finger >200°/s >200°/s

Finger flexion speed

>200°/s

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Flexion speed of four finger

RH56E2 - INSPIRE ROBOTS
Flexion speed of four finger >200°/s >200°/s

Force resolution

0.05 N

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Force resolution

RH56E2 - INSPIRE ROBOTS
Force resolution 0.05N 0.05N

Force resolution

0.05 N

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Force resolution

RH56E2 - INSPIRE ROBOTS
Force resolution 0.05N 0.05N

Joint count

12

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Numbers of joints

RH56E2 - INSPIRE ROBOTS
Numbers of joints 12 12

Joint count

12

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Numbers of joints

RH56E2 - INSPIRE ROBOTS
Numbers of joints 12 12

Mass

770g±10g

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Weight

RH56E2 - INSPIRE ROBOTS
Weight 770g±10g 770g±10g

Mass

790g±10g

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Weight

RH56E2 - INSPIRE ROBOTS
Weight 790g±10g 790g±10g

Operating voltage

24V±10%

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Operating voltage

RH56E2 - INSPIRE ROBOTS
Operating voltage 24V±10% 24V±10%

Operating voltage

24V±10%

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Operating voltage

RH56E2 - INSPIRE ROBOTS
Operating voltage 24V±10% 24V±10%

Peak current

4A @24V

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Peak current

RH56E2 - INSPIRE ROBOTS
Peak current 4A @24V 4A @24V

Peak current

4A @24V

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Peak current

RH56E2 - INSPIRE ROBOTS
Peak current 4A @24V 4A @24V

Quiescent current

0.2A @24V

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Quiescent current

RH56E2 - INSPIRE ROBOTS
Quiescent current 0.2A @24V 0.2A @24V

Quiescent current

0.25A @24V

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Quiescent current

RH56E2 - INSPIRE ROBOTS
Quiescent current 0.25A @24V 0.25A @24V

Repeatability

±0.20mm

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Repeatability

RH56E2 - INSPIRE ROBOTS
Repeatability ±0.20mm ±0.20mm

Repeatability

±0.20mm

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Repeatability

RH56E2 - INSPIRE ROBOTS
Repeatability ±0.20mm ±0.20mm

Tactile accuracy

≤5%FS

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Tactile sensor accuracy

RH56E2 - INSPIRE ROBOTS
Tactile sensor accuracy ≤5%FS ≤5%FS

Tactile force range

0‑30N

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model); Parameter label: Range of tactile sensor

RH56E2 - INSPIRE ROBOTS
Range of tactile sensor 0‑30N 0‑20N

Tactile force range

0‑20N

Manufacturer specification

Configuration: RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Range of tactile sensor

RH56E2 - INSPIRE ROBOTS
Range of tactile sensor 0‑30N 0‑20N

Tactile sensor count

17

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model); Parameter label: Number of tactile sensors

RH56E2 - INSPIRE ROBOTS
Number of tactile sensors 17 5

Tactile sensor count

5

Manufacturer specification

Configuration: RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Number of tactile sensors

RH56E2 - INSPIRE ROBOTS
Number of tactile sensors 17 5

Thumb fingertip force

30 N

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Thumb Fingertip Strength

RH56E2 - INSPIRE ROBOTS
Thumb Fingertip Strength 30N 30N

Thumb fingertip force

30 N

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Thumb Fingertip Strength

RH56E2 - INSPIRE ROBOTS
Thumb Fingertip Strength 30N 30N

Thumb flexion speed

>130°/s

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Flexion speed of thumb

RH56E2 - INSPIRE ROBOTS
Flexion speed of thumb >130°/s >130°/s

Thumb flexion speed

>130°/s

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Flexion speed of thumb

RH56E2 - INSPIRE ROBOTS
Flexion speed of thumb >130°/s >130°/s

Thumb lateral range

75°‑170°

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Lateral rotation range of thumb

RH56E2 - INSPIRE ROBOTS
Lateral rotation range of thumb 75°‑170° 75°‑170°

Thumb lateral range

75°‑170°

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Lateral rotation range of thumb

RH56E2 - INSPIRE ROBOTS
Lateral rotation range of thumb 75°‑170° 75°‑170°

Thumb lateral speed

>130°/s

Manufacturer specification

Configuration: RH56E2‑0L (Left hand model) RH56E2‑2L (Left hand model) / RH56E2‑0R (Right hand model) RH56E2‑2R (Right hand model); Parameter label: Lateral rotation speed of thumb

RH56E2 - INSPIRE ROBOTS
Lateral rotation speed of thumb >130°/s >130°/s

Thumb lateral speed

>130°/s

Manufacturer specification

Configuration: RH56E2‑0R‑T1 (Right hand model)RH56E2‑0L‑T1 (Left hand model) RH56E2‑2R‑T1 (Right hand model)RH56E2‑2L‑T1 (Left hand model) / RH56E2‑0R‑T2 (Right hand model)RH56E2‑0L‑T2 (Left hand model) RH56E2‑2R‑T2 (Right hand model)RH56E2‑2L‑T2 (Left hand model); Parameter label: Lateral rotation speed of thumb

RH56E2 - INSPIRE ROBOTS
Lateral rotation speed of thumb >130°/s >130°/s
