Product details

Linker Hand O30

Linker Hand O30 灵巧手

Dexterous Hand

LinkerBot

Linker Hand O30

About this product

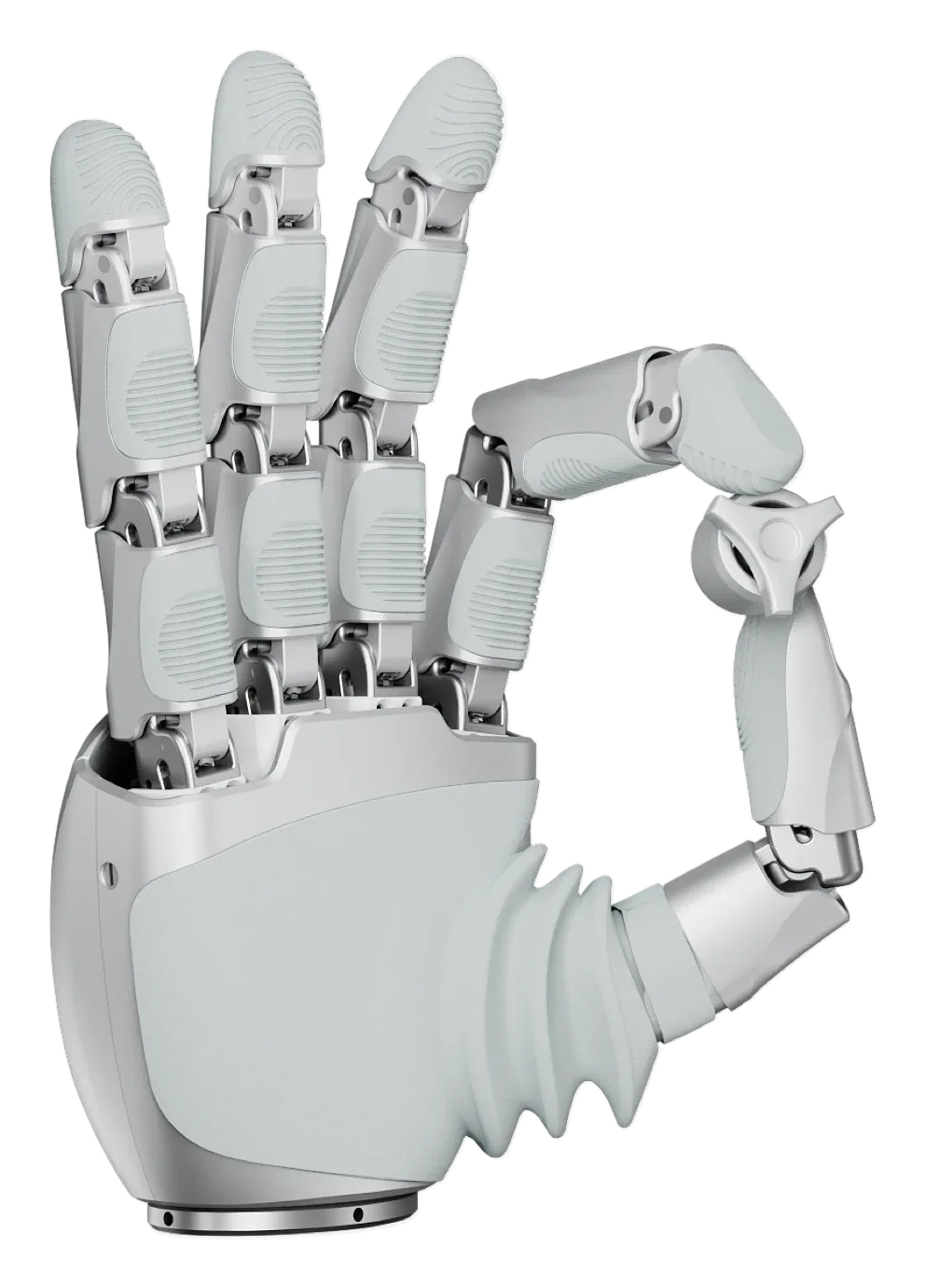

Linker Hand O30 is LinkerBot's research-oriented direct-drive hand with 20 independently moving active joints. The manufacturer positions it as a platform for dexterous-operation model training and complex manipulation, combining brushless motors with a lightweight transmission structure. The official table lists a 730 g mass, CAN and CAN FD communication at 500 Hz, ±0.2 mm repeatability and a 0.8-second opening or closing time. Thumb force, other-finger force and whole-hand grip are reported separately; the model's nominal load figure is a different measure.

Model
Linker Hand O30
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Active degrees of freedom

20

Manufacturer specification

灵心巧手
自由度:20个全主动自由度

Closing time

0.8 s

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
开合时间:0.8s

Communication frequency

500 Hz

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
通信频率:500Hz

Communication interface

CAN/CAN FD

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
控制接口:CAN/CAN FD

Degrees of freedom

20 fully active DOF

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
自由度:20个全主动自由度

Finger fingertip force

30 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指最大指尖力:30N

Finger flexion angle

1.84rad (105.315°)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指弯曲角度:1.84rad (105.315°)

Finger flexion speed

2.3871 rad/s (136.77°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
四指弯曲速度:2.3871 rad/s (136.77°/s)

Grasp force

70 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
五指最大抓握力:70N

Mass

730 g

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
重量:730g

Maximum power

150 W

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
最大功率:150W

No load average current

1.1A@24V

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
空载运动平均电流:1.1A@24V

Operating voltage

DC24V~48V

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
工作电压:DC24V~48V

Payload

30 kg

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
最大负载:30kg

Quiescent current

0.4A@24V

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
静态电流:0.4A@24V

Repeatability

±0.20mm

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
重复定位精度:±0.20mm

Thumb fingertip force

24 N

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指最大指尖力:24N

Thumb flexion speed

2.3134rad/s(132.55°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指弯曲速度:2.3134rad/s(132.55°/s)

Thumb lateral speed

1.8718 rad/s (107.249°/s)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指侧摆速度:1.8718 rad/s (107.249°/s)

Thumb rotation range

0.63rad(36°)

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
拇指旋转范围:0.63rad(36°)

Transmission mechanism

Direct drive

Manufacturer specification

Source section: Official product technical parameters

灵心巧手
传动方式:直驱
