Product details

PG-95-6S-X

Motion control and actuation

Unisunbot

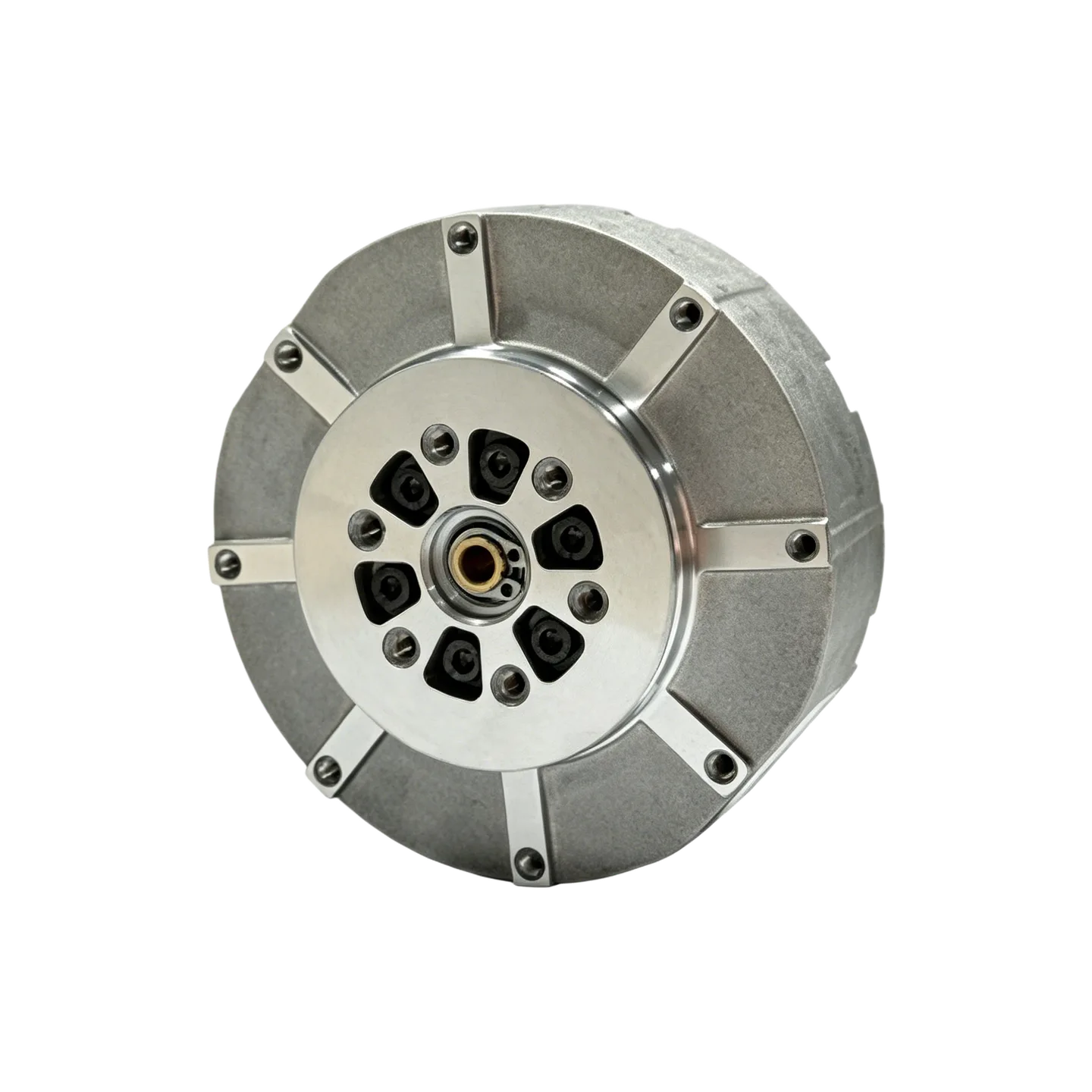

PG-95-6S-X

About this product

An integrated PG-series robot joint module with 4 N·m rated torque and 23.6 N·m peak torque. The published rated output power is 130 W and mass is 540 g.

Model
PG-95-6S-X
Category
Motion control and actuation, Components, Actuators & Joint Modules

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Ambient relative humidity

<90 %

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Ambient temperature

−20 to 50 °C

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Axial length

44.5 mm

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Line inductance

0.167 mH

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Line resistance

0.37 Ω

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Mass

540 g

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Outer diameter

95 mm

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Peak speed

300 rpm

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification. Peak duration is not stated.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Peak torque

23.6 N·m

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification. Peak duration is not stated.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Rated output power

130 W

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Rated speed

260 rpm

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Rated torque

4 N·m

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm

Rated voltage

24 / 36 V

Manufacturer specification

Configuration: PG-95-6S-X; Manufacturer specification for the exact model table; suffixes are not decoded into unsupported interface or encoder facts.

PG-95-6S- 浙江和晖机器人技术有限公司,浙江省嵌入式系统联合重点实验室
规格参数 PG-95-6S-X 额定输出功率 130 W 额定转速 260 rpm 峰值转速 300 rpm 线电阻 0.37Ω 线电感 0.167 mH 额定电压 24V、36V 额定扭矩 4Nm 峰值扭矩 23.6Nm 环境温度 -20~50℃ 湿度 <90% 重量 540g 大小 Φ:95 mm H:44.5 mm
