Gemini 335

Sensors and machine vision

Orbbec Inc.

Gemini 335

About this product

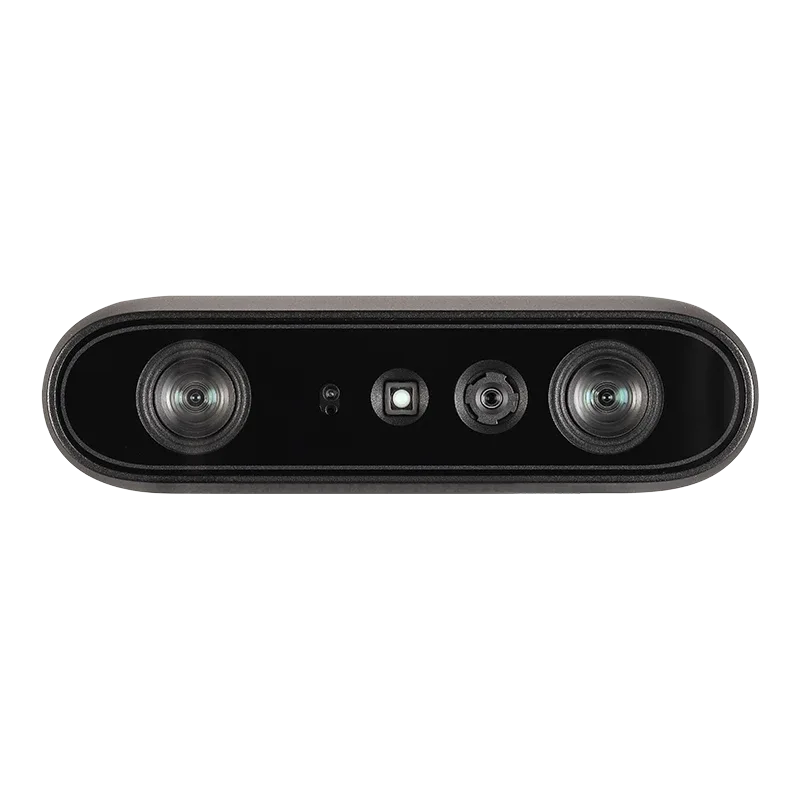

Gemini 335 is a compact stereo depth and RGB camera for indoor and outdoor robot perception. It combines active and passive stereo sensing with Orbbec MX6800 processing and provides point clouds, depth maps, infrared and color images over USB-C. Orbbec identifies autonomous mobile robots, delivery robots and collaborative robots among its applications. The camera supports an IMU, hardware triggering and synchronization across multiple devices.

Model
Gemini 335
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

USB 3.0 Type-C

Manufacturer specification

Orbbec — robotics component scope
Data Connection USB 3.0 Type-C

Data output

Point Cloud, Depth Map, IR & RGB

Manufacturer specification

Orbbec — robotics component scope
Data Output Point Cloud, Depth Map, IR & RGB

Depth filter

All-Pass

Manufacturer specification

Orbbec — robotics component scope
Depth Filter All-Pass

Depth fov

H90° V65°

Manufacturer specification

Orbbec — robotics component scope
Depth FOV H90° V65°

Depth range

*0.10 - 20m+ (Optimal Range: 0.26 - 3m)

Manufacturer specification

Orbbec — robotics component scope
Depth Range *0.10 - 20m+ (Optimal Range: 0.26 - 3m)

Depth resolution fps

Up to 1280X800@30fps

Manufacturer specification

Orbbec — robotics component scope
Depth Resolution/FPS Up to 1280X800@30fps

Depth technology

Stereo

Manufacturer specification

Orbbec — robotics component scope
Depth Technology Stereo

Dimensions w h d

90mm x 25mm x 30mm

Manufacturer specification

Orbbec — robotics component scope
Dimensions (W*H*D) 90mm x 25mm x 30mm

Imu

Supported

Manufacturer specification

Orbbec — robotics component scope
IMU Supported

Operating environment

-10℃ - 45℃; Indoor/Outdoor; 5%-90%RH(non-condensing)

Manufacturer specification

Orbbec — robotics component scope
Operating Environment -10℃ - 45℃; Indoor/Outdoor; 5%-90%RH(non-condensing)

Power consumption

Average < 3.0W

Manufacturer specification

Orbbec — robotics component scope
Power Consumption Average < 3.0W

Power input

USB 3.0 Type-C

Manufacturer specification

Orbbec — robotics component scope
Power Input USB 3.0 Type-C

Release date

2024-04-29

Manufacturer specification

Configuration: Manufacturer announcement body dateline; header is April 30, 2024. Body explicitly introduces Gemini 335 and 335L.

Gemini 330 Stereo Vision with Custom ASIC | Orbbec
Troy, MI – April 29, 2024 – Orbbec , an industry leader dedicated to 3D vision systems, introduced its Gemini 330 series, featuring the Gemini 335 and Gemini 335L Stereo Vision 3D cameras. Engineered as universal solutions for diverse 3D application scenarios, these cameras boast Orbbec’s latest depth engine chip MX6800, a purpose-built ASIC and patented hybrid stereo imaging technology that ensures stable, high-quality depth data output even in challenging lighting conditions.

Rgb fov

H86° V55°

Manufacturer specification

Orbbec — robotics component scope
RGB FOV H86° V55°

Rgb resolution fps

Up to 1920X1080@30fps

Manufacturer specification

Orbbec — robotics component scope
RGB Resolution/FPS Up to 1920X1080@30fps

Sdk support

Orbbec SDK

Manufacturer specification

Orbbec — robotics component scope
SDK Support Orbbec SDK

Wavelength

850 nm

Manufacturer specification

Orbbec — robotics component scope
Wavelength 850nm

Weight

97 g

Manufacturer specification

Orbbec — robotics component scope
Weight 97g
