FD1X5

Components

Kinco

FD1X5

About this product

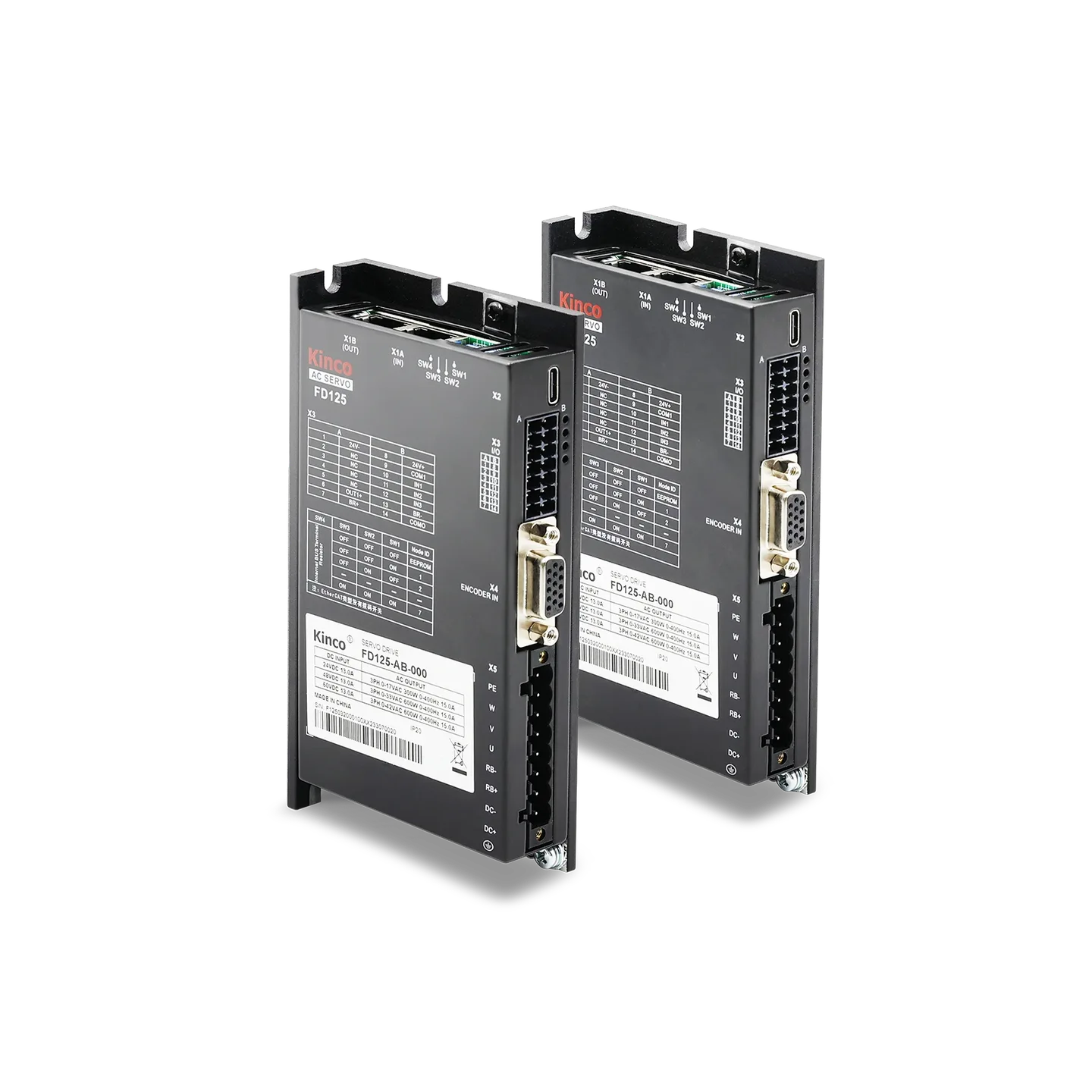

Fifth-generation low-voltage servo-drive family supporting CANopen, Modbus RTU and EtherCAT variants. Automatic tuning, notch filtering and S-curve functions support smooth motion in automation equipment.

Model
FD1X5
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Altitude and derating

rated operating altitude 1000m or below, operating altitude 1000 mand above: , per rise of 100 m, derate 1.5% use, maximum operating altitude 2000 m.

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
高度 额定工作海拔 1000m 以下,工作海拔在 1000 米以上时,每上升 100 米,需降额 1.5% 使用,最大工作高度海拔 2000 米。

Atmospheric pressure

86kpa ~ 106kpa

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
大气压力 86kpa ~ 106kpa

Braking absorption voltage

default 63V±2V VDC

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
能耗制动电压吸收点 默认 63V±2V

Commissioning interface

Commissioning with Kinco PC software

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

FD1X5伺服驱动器
Type-C 调试专用,可使用 Kinco 上位机软件连接

Cooling method

Natural cooling

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
冷却方式 自然冷却

Digital input specification

3 digital inputs, common COMI; high level : 12.5~30VDC ; low level : 0~5VDC ; maximum frequency : 1KHz ; input impedance : 5KΩ

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
通用 功能 输入规格 3 路数字量输入,共 COMI 端;高电平: 12.5~30VDC ;低电平: 0~5VDC ; 最大频率: 1KHz ;输入阻抗: 5KΩ

Ethercat interface

CoE (CiA402), CSP/CSV/PP/PV/PT/HM modes; communication speed 100M

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable. Only configurations equipped with the corresponding interface or safety option; optional protocol rows do not mean every SKU has every interface.

FD1X5伺服驱动器
EtherCAT 支持 COE ( CiA402 协议)以及 CSP/CSV/PP/PV/PT/HM 模式,通讯速度 100M

Humidity

90%RH or below

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
湿度 ( 不结露 ) 90%RH 以下

Installation location

Dust-free, dry, lockable enclosure(such as an electrical cabinet)

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
安装场所 无粉尘干燥可锁(如电气柜)

Logic power loss

FD125-□B-000 FD125-□U-000: 1000; FD135-□B-000 FD135-□U-000: 1200; FD145-□B-000 FD145-□U-000: 1300 mW

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
逻辑损耗功率( mW ) 1000 1200 1300

Logic power supply

24VDC 1A (optional connection)

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
逻辑电源 24VDC 1A (可不接)

Main power supply

24VDC ~ 60VDC

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
输入 动力电源 24VDC ~ 60VDC

Mass

FD125-□B-000 FD125-□U-000: 0.322; FD135-□B-000 FD135-□U-000: 0.657; FD145-□B-000 FD145-□U-000: 0.861 kg

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
重量( KG ) 0.322 0.657 0.861

Maximum continuous output current

FD125-□B-000 FD125-□U-000: 15 ( without auxiliary cooling: up to 12Arms ); FD135-□B-000 FD135-□U-000: 30 ( without auxiliary cooling: up to 22Arms ); FD145-□B-000 FD145-□U-000: 50 ( without auxiliary cooling: up to 35Arms )

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
输出 最大连续输出电流( Arms ) 15 ( 未加辅助散热可达 12Arms ) 30 ( 未加辅助散热可达 22Arms ) 50 ( 未加辅助散热可达 35Arms )

Mounting orientation

Vertical or horizontal mounting

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
安装方式 垂直安装或水平安装

Operating temperature

-20°C ~ 50°C (no freezing) , operating temperature over 40°C , drive must be derated

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
使用 环境 工作温度 -20℃ ~ 50℃ (不结冰) , 工作温度超过 40°C ,驱动器需降额使用

Overvoltage alarm threshold

default 70V±2V VDC

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
过压报警电压 默认 70V±2V

Peak current

FD125-□B-000 FD125-□U-000: 48; FD135-□B-000 FD135-□U-000: 100; FD145-□B-000 FD145-□U-000: 160 A peak

Manufacturer specification

Configuration: Values apply to the exact configurations named in the value.; Per exact family configuration. Model-code options are not interchangeable. Peak/maximum value; duration is not stated on this page.

FD1X5伺服驱动器
峰值电流 (AP) 48 100 160

Storage temperature

-40°C ~ 70°C (no freezing)

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
存储温度 -40℃ ~ 70℃ (不结冰)

Undervoltage alarm threshold

default 18V±2V VDC

Manufacturer specification

Configuration: FD125-□B-000 FD125-□U-000; FD135-□B-000 FD135-□U-000; FD145-□B-000 FD145-□U-000; Per exact family configuration. Model-code options are not interchangeable.

FD1X5伺服驱动器
欠压报警电压 默认 18V±2V
