Product details

PS800-E1

Sensors and machine vision

Percipio

PS800-E1

About this product

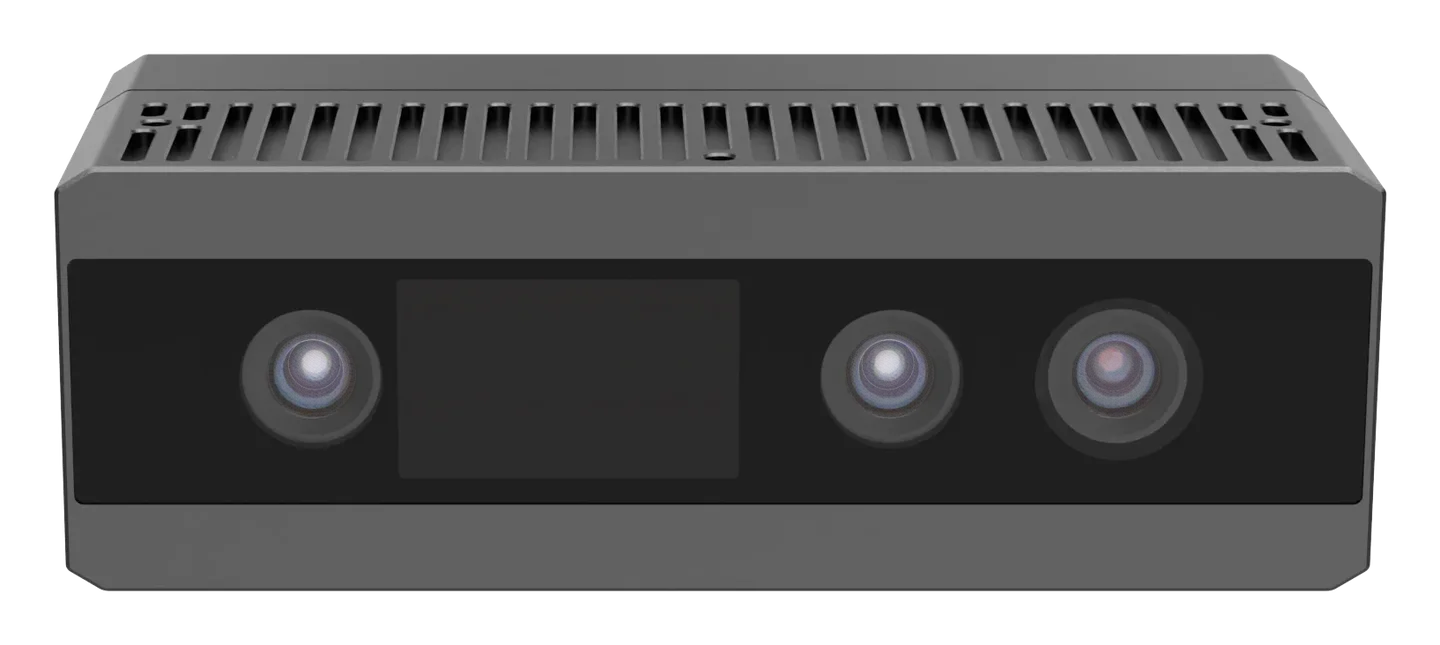

Structured-light 3D camera with an embedded vision processor for small, static objects. It produces depth and color information for object recognition, classification and localization.

Model
PS800-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Baseline

62 mm

Manufacturer specification

PS800-E1-Percipio.XYZ
Baseline 62mm

Cooling method

Passive cooling

Manufacturer specification

PS800-E1-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

0.8 fps @ 1280 x 960 0.8 fps @ 640 x 480 0.8 fps @ 320 x 240

Manufacturer specification

PS800-E1-Percipio.XYZ
Depth Resolution 0.8 fps @ 1280 x 960 0.8 fps @ 640 x 480 0.8 fps @ 320 x 240

Depth technology

Stereo Dot-Pattern Structured Light

Manufacturer specification

PS800-E1-Percipio.XYZ
Technical Principles Stereo Dot-Pattern Structured Light

Dimensions

140.6 mm x 47.0 mm x 60.0 mm

Manufacturer specification

PS800-E1-Percipio.XYZ
Size 140.6 mm x 47.0 mm x 60.0 mm

Field of view

61°/48°

Manufacturer specification

PS800-E1-Percipio.XYZ
FOV(H/V) 61°/48°

Housing material

aluminium alloy

Manufacturer specification

PS800-E1-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

940 nm

Manufacturer specification

PS800-E1-Percipio.XYZ
Laser wavelength 940nm

Ip rating

IP65

Manufacturer specification

PS800-E1-Percipio.XYZ
Ingress Protection IP65

Light source

1 x infrared laser 1 x infrared floodlight

Manufacturer specification

PS800-E1-Percipio.XYZ
Light source 1 x infrared laser 1 x infrared floodlight

Mounting

Mechanical fastening (M4 thread)

Manufacturer specification

PS800-E1-Percipio.XYZ
Installation Method Mechanical fastening (M4 thread)

Operating temperature

0 ℃ ~ 45 ℃

Manufacturer specification

PS800-E1-Percipio.XYZ
Temperature 0 ℃ ~ 45 ℃

Output formats

Depth map, colour image, infrared image, point cloud

Manufacturer specification

PS800-E1-Percipio.XYZ
Output image Depth map, colour image, infrared image, point cloud

Power consumption

≤ 10.5W

Manufacturer specification

PS800-E1-Percipio.XYZ
Power Consumption ≤ 10.5W

Sdk

Percipio Camport SDK; supports C, C++, C#, Python and others

Manufacturer specification

PS800-E1-Percipio.XYZ
Software Development Kit Percipio Camport SDK; supports C, C++, C#, Python and others

Shutter type

ROlling

Manufacturer specification

PS800-E1-Percipio.XYZ
Shutter Type ROlling

Storage temperature

-10 ℃~ 55 ℃

Manufacturer specification

PS800-E1-Percipio.XYZ
Storage temperature -10 ℃~ 55 ℃

Supply voltage

DC 24V ±10%; PoE (IEEE802.3 at)

Manufacturer specification

PS800-E1-Percipio.XYZ
Supply voltage DC 24V ±10%; PoE (IEEE802.3 at)

Supported platforms

Linux/Windows/ROS

Manufacturer specification

PS800-E1-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

544 g

Manufacturer specification

PS800-E1-Percipio.XYZ
Weight 544g
