Product details

Revo3

Revo3 灵巧手

Dexterous Hand

BrainCo

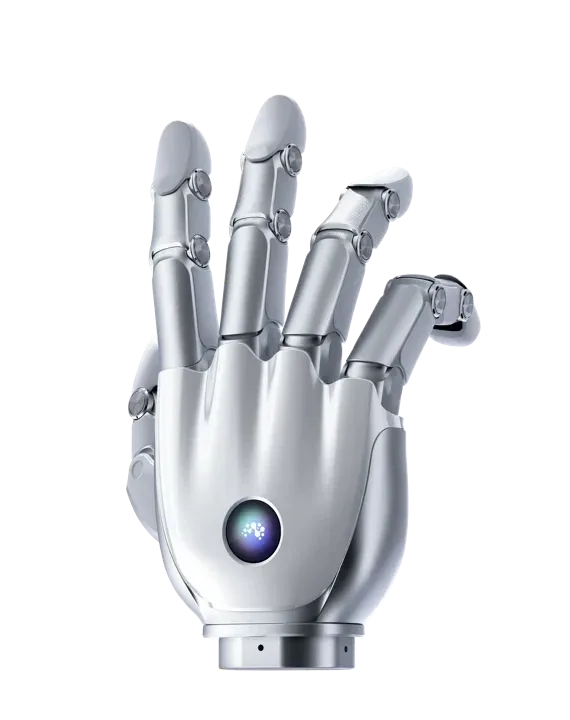

Revo3

About this product

Revo3 is BrainCo's fully actuated five-finger hand for robotic manipulation, research and industrial automation development. It uses 21 independent motors: five active degrees of freedom in the thumb and four in each remaining finger. The manufacturer describes a backdrivable mechanism and provides C/C++, Python and ROS development support. Communication options include RS485, CAN FD and EtherCAT. Four configurations share the same actuation layout but differ in sensing, ranging from the non-tactile U21 to fingertip-force, palm-array and combined visual-tactile versions.

Model
Revo3
Category
Dexterous Hand

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Closing time

0.33 s

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Closing time

Revo 3 产品手册 | BrainCo Hand
关节开合速度 0.33 s 0.33 s 0.33 s 0.33 s

Communication frequency

500 Hz

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Communication frequency

Revo 3 产品手册 | BrainCo Hand
通信频率 500 Hz 500 Hz 500 Hz 500 Hz

Communication interface

EtherCAT / CAN FD / RS-485

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Communication interface

Revo 3 产品手册 | BrainCo Hand
硬件配置 通信接口 EtherCAT / CAN FD / RS-485 EtherCAT / CAN FD / RS-485 EtherCAT / CAN FD / RS-485 EtherCAT / CAN FD / RS-485

Degrees of freedom

21 DOF (fully direct-driven and backdrivable)

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Degrees of freedom

Revo 3 产品手册 | BrainCo Hand
自由度 总自由度 21(全直驱、可反驱) 21(全直驱、可反驱) 21(全直驱、可反驱) 21(全直驱、可反驱)

Degrees of freedom distribution

Four fingers: 4 × 4 DOF; thumb: 5 DOF

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Degrees of freedom distribution

Revo 3 产品手册 | BrainCo Hand
自由度分布 四指 4 × 4 DoF,拇指 5 DoF 四指 4 × 4 DoF,拇指 5 DoF 四指 4 × 4 DoF,拇指 5 DoF 四指 4 × 4 DoF,拇指 5 DoF

Dimensions

216 × 108 × 50 mm

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Dimensions

Revo 3 产品手册 | BrainCo Hand
尺寸参数 整手尺寸 216 × 108 × 50 mm 216 × 108 × 50 mm 216 × 108 × 50 mm 216 × 108 × 50 mm

Fingertip pinch force

≥ 25 N

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Fingertip pinch force

Revo 3 产品手册 | BrainCo Hand
指尖最大捏力 ≥ 25 N ≥ 25 N ≥ 25 N ≥ 25 N

Four finger payload

5 kg

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Four-finger payload (group scope)

Revo 3 产品手册 | BrainCo Hand
四指负载 5 kg 5 kg 5 kg 5 kg

Grasp force

≥ 100 N

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Grasp force

Revo 3 产品手册 | BrainCo Hand
最大主动握力 ≥ 100 N ≥ 100 N ≥ 100 N ≥ 100 N

Maximum current

10 A(24 V)

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Maximum current

Revo 3 产品手册 | BrainCo Hand
最大电流 10 A(24 V) 10 A(24 V) 10 A(24 V) 10 A(24 V)

Maximum grip diameter

150 mm

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Maximum grip diameter

Revo 3 产品手册 | BrainCo Hand
最大抓握直径 150 mm 150 mm 150 mm 150 mm

Minimum grip diameter

10 mm

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Minimum grip diameter

Revo 3 产品手册 | BrainCo Hand
最小抓握直径 10 mm 10 mm 10 mm 10 mm

Motion capability

Full score on the Kapandji opposition test; supports 33 grasping postures (Feix / GRASP / Taxonomy)

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Motion capability

Revo 3 产品手册 | BrainCo Hand
运动范围 运动能力 Kapandji 对指测试满分 覆盖 33 种抓握手势(Feix、GRASP、Taxonomy) Kapandji 对指测试满分 覆盖 33 种抓握手势(Feix、GRASP、Taxonomy) Kapandji 对指测试满分 覆盖 33 种抓握手势(Feix、GRASP、Taxonomy) Kapandji 对指测试满分 覆盖 33 种抓握手势(Feix、GRASP、Taxonomy)

Operating voltage

16~85 V

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Operating voltage

Revo 3 产品手册 | BrainCo Hand
工作参数 供电电压 16~85 V 16~85 V 16~85 V 16~85 V

Payload

20 kg

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Payload

Revo 3 产品手册 | BrainCo Hand
整手负载 20 kg 20 kg 20 kg 20 kg

Repeatability

0.1°

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Repeatability

Revo 3 产品手册 | BrainCo Hand
重复运动精度 0.1° 0.1° 0.1° 0.1°

Sensors

IMU (mainboard), temperature sensor (mainboard)

Manufacturer specification

Configuration: Revo 3 U21 / Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Sensors

Revo 3 产品手册 | BrainCo Hand
传感器 IMU(主板)、温度(主板) IMU(主板)、温度(主板) IMU(主板)、温度(主板) IMU(主板)、温度(主板)

Tactile coverage

Fingertip tactile sensing

Manufacturer specification

Configuration: Revo 3 U21F; Parameter label: Tactile coverage

Revo 3 产品手册 | BrainCo Hand
触觉 触觉分布 / 指尖触觉 全掌触觉 全掌触觉

Tactile coverage

Full-palm tactile sensing

Manufacturer specification

Configuration: Revo 3 U21T / Revo 3 U21VT; Parameter label: Tactile coverage

Revo 3 产品手册 | BrainCo Hand
触觉 触觉分布 / 指尖触觉 全掌触觉 全掌触觉

Tactile force range

0~20 N

Manufacturer specification

Configuration: Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Tactile force range

Revo 3 产品手册 | BrainCo Hand
量程 / 0~20 N 0~20 N 0~20 N

Tactile point count

5 modules (3D force)

Manufacturer specification

Configuration: Revo 3 U21F; Parameter label: Tactile point count

Revo 3 产品手册 | BrainCo Hand
点阵数量 / 5 modules(三维力) 451 points(压阻) 336 points(压阻)+ 2000 markers(视触觉)

Tactile point count

451 piezoresistive points

Manufacturer specification

Configuration: Revo 3 U21T; Parameter label: Tactile point count

Revo 3 产品手册 | BrainCo Hand
点阵数量 / 5 modules(三维力) 451 points(压阻) 336 points(压阻)+ 2000 markers(视触觉)

Tactile point count

336 piezoresistive points + 2000 visuotactile markers

Manufacturer specification

Configuration: Revo 3 U21VT; Parameter label: Tactile point count

Revo 3 产品手册 | BrainCo Hand
点阵数量 / 5 modules(三维力) 451 points(压阻) 336 points(压阻)+ 2000 markers(视触觉)

Tactile resolution

0.01 N

Manufacturer specification

Configuration: Revo 3 U21F / Revo 3 U21T / Revo 3 U21VT; Parameter label: Tactile resolution

Revo 3 产品手册 | BrainCo Hand
分辨率 / 0.01 N 0.01 N 0.01 N

Tactile sensing

Fingertip 3D force sensing

Manufacturer specification

Configuration: Revo 3 U21F; Parameter label: Tactile sensing

Revo 3 产品手册 | BrainCo Hand
触觉类型 / 指尖三维力 全掌压阻阵列触觉 手掌压阻阵列触觉 + 指尖视触觉

Tactile sensing

Full-palm piezoresistive tactile array

Manufacturer specification

Configuration: Revo 3 U21T; Parameter label: Tactile sensing

Revo 3 产品手册 | BrainCo Hand
触觉类型 / 指尖三维力 全掌压阻阵列触觉 手掌压阻阵列触觉 + 指尖视触觉

Tactile sensing

Palm piezoresistive tactile array + fingertip visuotactile sensors

Manufacturer specification

Configuration: Revo 3 U21VT; Parameter label: Tactile sensing

Revo 3 产品手册 | BrainCo Hand
触觉类型 / 指尖三维力 全掌压阻阵列触觉 手掌压阻阵列触觉 + 指尖视触觉
