Product details

SMA

Components

MOONS'

SMA

About this product

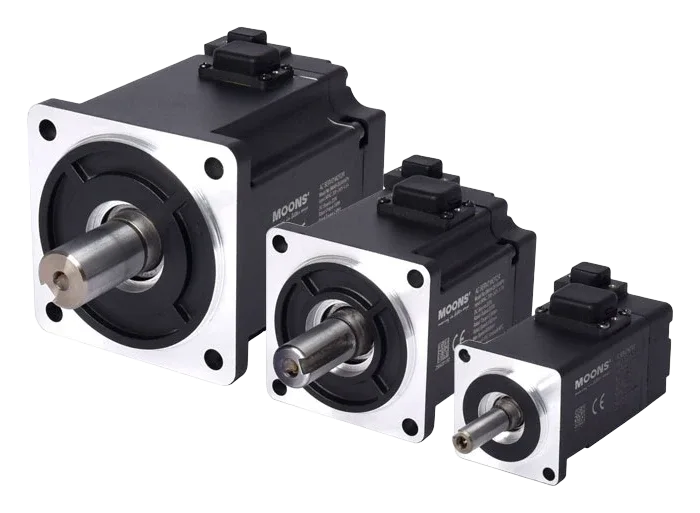

AC servo-motor family with selectable feedback devices and direct-plug connections. Multiple frame sizes support precise positioning in automated machinery.

Model
SMA AC
Category
Components, Motion control and actuation

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cogging torque ripple

≤1 % of rated torque

Manufacturer specification

SMA交流伺服电机全新一代,50-1000W高功率密度,多机座IP67认证- 鸣志官网
至≤1%额定转矩

Encoder multiturn resolution

16 bit

Manufacturer specification

With backup battery.

SMA交流伺服电机全新一代,50-1000W高功率密度,多机座IP67认证- 鸣志官网
使用备用电池记录16位多圈数据

Encoder resolution

21 bit

Manufacturer specification

Multi-turn absolute encoder option.

SMA交流伺服电机全新一代,50-1000W高功率密度,多机座IP67认证- 鸣志官网
21位多圈绝对值编码器

Frame sizes

40 / 60 / 80 mm

Manufacturer specification

Configuration: AC

SMA交流伺服电机全新一代,50-1000W高功率密度,多机座IP67认证- 鸣志官网
机座尺寸有40mm、60mm、80mm

Insulation class

Class F (155°C)

Manufacturer specification

Configuration: AC

SMA交流伺服电机全新一代,50-1000W高功率密度,多机座IP67认证- 鸣志官网
Class F(155℃)绝缘等级

Overload torque

350 % of rated

Manufacturer specification

Configuration: AC; Overload capability; not a continuous rating.

SMA交流伺服电机全新一代,50-1000W高功率密度,多机座IP67认证- 鸣志官网
支持350%过载转矩

Power range

50–1000 W

Manufacturer specification

Configuration: AC

SMA交流伺服电机全新一代,50-1000W高功率密度,多机座IP67认证- 鸣志官网
功率范围为50W-1000W

Protection rating

IP67

Manufacturer specification

Configuration: AC; Excludes shaft penetration.

SMA交流伺服电机全新一代,50-1000W高功率密度,多机座IP67认证- 鸣志官网
IP67防护等级(除轴贯通部分)
