Product details

Femto Mega I

Sensors and machine vision

Orbbec Inc.

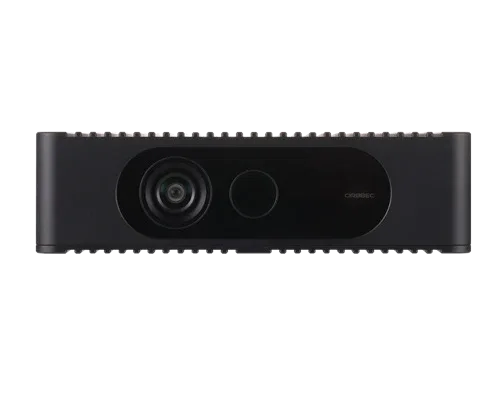

Femto Mega I

About this product

Femto Mega I is an industrial IP65 time-of-flight depth and RGB camera combining Microsoft depth technology and NVIDIA Jetson processing. It streams processed data over industrial Ethernet with PoE and supports synchronized multi-camera robotics integration through the Orbbec ROS 2 wrapper. End of marketing is scheduled for December 30, 2026.

Model
Femto Mega I
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

Ethernet (M12 X-coding Connector 8 pins)

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Data Connection Ethernet (M12 X-coding Connector 8 pins)

Data output

Point Cloud, Depth Map, IR & RGB

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Data Output Point Cloud, Depth Map, IR & RGB

Depth fov

H 120° V 120° (WFOV), H 75° V 65° (NFOV)

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Depth FOV H 120° V 120° (WFOV), H 75° V 65° (NFOV)

Depth range

*0.25-5.46m (depending on depth mode)

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Depth Range *0.25-5.46m (depending on depth mode)

Depth resolution fps

Snapshot Mode: Up to 1024X1024@10fps (WFOV), 640X576@10fps (NFOV)Stream Mode: Up to 1024X1024@15fps (WFOV), 640X576@30fps (NFOV)

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Depth Resolution/FPS Snapshot Mode: Up to 1024X1024@10fps (WFOV), 640X576@10fps (NFOV)Stream Mode: Up to 1024X1024@15fps (WFOV), 640X576@30fps (NFOV)

Depth technology

Time of Flight

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Depth Technology Time of Flight

Dimensions w h d

180mm x 50mm x 110mm

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Dimensions (W*H*D) 180mm x 50mm x 110mm

End of marketing

2026-12-30

Manufacturer specification

Configuration: Manufacturer lifecycle notice

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2026-06-17110316-ENFemto-Mega-I-EOL-Announcement.pdf
EOL Announcement for Femto Mega I Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Femto Mega I . We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. June 10,2026 Milestone Date Remark EOL announcement 2026-06-10 EOL publicity date EOM 2026-12-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2028-12-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product. Including software and hardware problem support and update. Replacement product End of Life product Replacement product Femto Mega I Gemini 435Le/Gemini 335Le

End of support

2028-12-30

Manufacturer specification

Configuration: Manufacturer lifecycle notice

new-orbbec3d-s3.s3.amazonaws.com-wp-content-uploads-2026-06-17110316-ENFemto-Mega-I-EOL-Announcement.pdf
EOL Announcement for Femto Mega I Dear customers: In order to better assist you in addressing market changes and the challenges of technological innovation, Orbbec Optical has provided the key lifecycle milestone points for the Femto Mega I . We hope this information will serve as a reference for your future product planning and development. Orbbec Inc. June 10,2026 Milestone Date Remark EOL announcement 2026-06-10 EOL publicity date EOM 2026-12-30 End of Marketing. The EOM date is the date when the product stops accepting orders, including orders for new sites and capacity expansion. After that date, the product will no longer be sold. EOS 2028-12-30 End of Service & Support. It refers to the last date of the service. After the EOS date, Orbbec does not provide any service for the product. Including software and hardware problem support and update. Replacement product End of Life product Replacement product Femto Mega I Gemini 435Le/Gemini 335Le

Imu

Supported

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
IMU Supported

Operating environment

0℃ - 45℃; Indoor/Semi-Outdoor; 8-90%RH (non-condensing)

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Operating Environment 0℃ - 45℃; Indoor/Semi-Outdoor; 8-90%RH (non-condensing)

Power consumption

Average <11W

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Power Consumption Average <11W

Power input

PoE+/DC 12~24V

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Power Input PoE+/DC 12~24V

Rgb fov

H 80° V 51°

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
RGB FOV H 80° V 51°

Rgb resolution fps

Snapshot Mode: Up to 3840X2160@3fps, 1920X1080@10FPSStream Mode: Up to 3840X2160@25fps, 1920X1080@30FPS

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
RGB Resolution/FPS Snapshot Mode: Up to 3840X2160@3fps, 1920X1080@10FPSStream Mode: Up to 3840X2160@25fps, 1920X1080@30FPS

Sdk support

Orbbec Industry SDK

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
SDK Support Orbbec Industry SDK

Wavelength

850 nm

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Wavelength 850nm

Weight

1,080 g

Manufacturer specification

Femto Mega I: ToF Camera with Jetson | Orbbec
Weight 1080g
