Product details

Gemini 335L

Sensors and machine vision

Orbbec Inc.

Gemini 335L

About this product

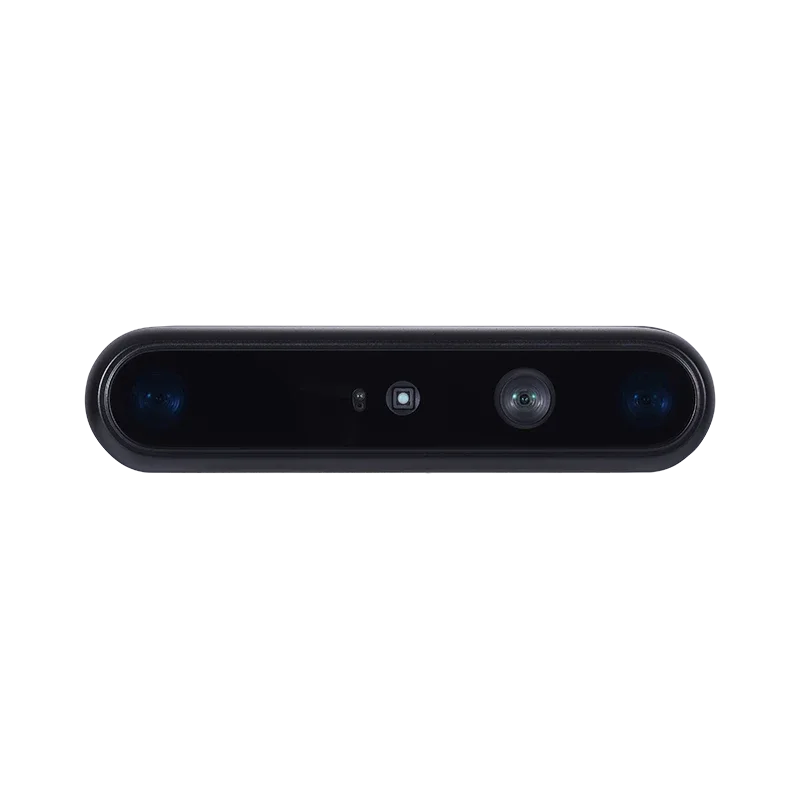

Gemini 335L is a USB stereo depth camera for mobile robots, robotic arms and outdoor perception. Its longer 95 mm stereo baseline supports longer-range sensing, while onboard depth processing, synchronized depth and RGB output, an IMU and IP65 protection support industrial integration.

Model
Gemini 335L
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Data connection

USB 3.0 Type-C

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Data Connection USB 3.0 Type-C

Data output

Point Cloud, Depth Map, IR & RGB

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Data Output Point Cloud, Depth Map, IR & RGB

Depth filter

Visible+NIR-Pass

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Depth Filter Visible+NIR-Pass

Depth fov

H90° V65°

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Depth FOV H90° V65°

Depth range

*0.17 - 20m+ (Optimal Range: 0.25 - 6m)

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Depth Range *0.17 - 20m+ (Optimal Range: 0.25 - 6m)

Depth resolution fps

Up to 1280X800@30fps

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Depth Resolution/FPS Up to 1280X800@30fps

Depth technology

Stereo

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Depth Technology Stereo

Dimensions w h d

124mm x 29mm x 27mm

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Dimensions (W*H*D) 124mm x 29mm x 27mm

Imu

Supported

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
IMU Supported

Operating environment

-10℃ - 50℃; Indoor/Outdoor; 5%-90%RH(non-condensing)

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Operating Environment -10℃ - 50℃; Indoor/Outdoor; 5%-90%RH(non-condensing)

Power consumption

Average < 3.0W

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Power Consumption Average < 3.0W

Power input

USB 3.0 Type-C

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Power Input USB 3.0 Type-C

Release date

2024-04-29

Manufacturer specification

Configuration: Manufacturer announcement body dateline; header is April 30, 2024. Body explicitly introduces Gemini 335 and 335L.

Gemini 330 Stereo Vision with Custom ASIC | Orbbec
Troy, MI – April 29, 2024 – Orbbec , an industry leader dedicated to 3D vision systems, introduced its Gemini 330 series, featuring the Gemini 335 and Gemini 335L Stereo Vision 3D cameras. Engineered as universal solutions for diverse 3D application scenarios, these cameras boast Orbbec’s latest depth engine chip MX6800, a purpose-built ASIC and patented hybrid stereo imaging technology that ensures stable, high-quality depth data output even in challenging lighting conditions.

Rgb fov

H94° V68°

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
RGB FOV H94° V68°

Rgb resolution fps

Up to 1280X800@60fps

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
RGB Resolution/FPS Up to 1280X800@60fps

Sdk support

Orbbec SDK

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
SDK Support Orbbec SDK

Wavelength

850nm

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Wavelength 850nm

Weight

133g

Manufacturer specification

Gemini 335L: IP65 Stereo Vision Camera | Orbbec
Weight 133g
