Product details

PX3Q-60

Sensors and machine vision

PaXini

PX3Q-60

About this product

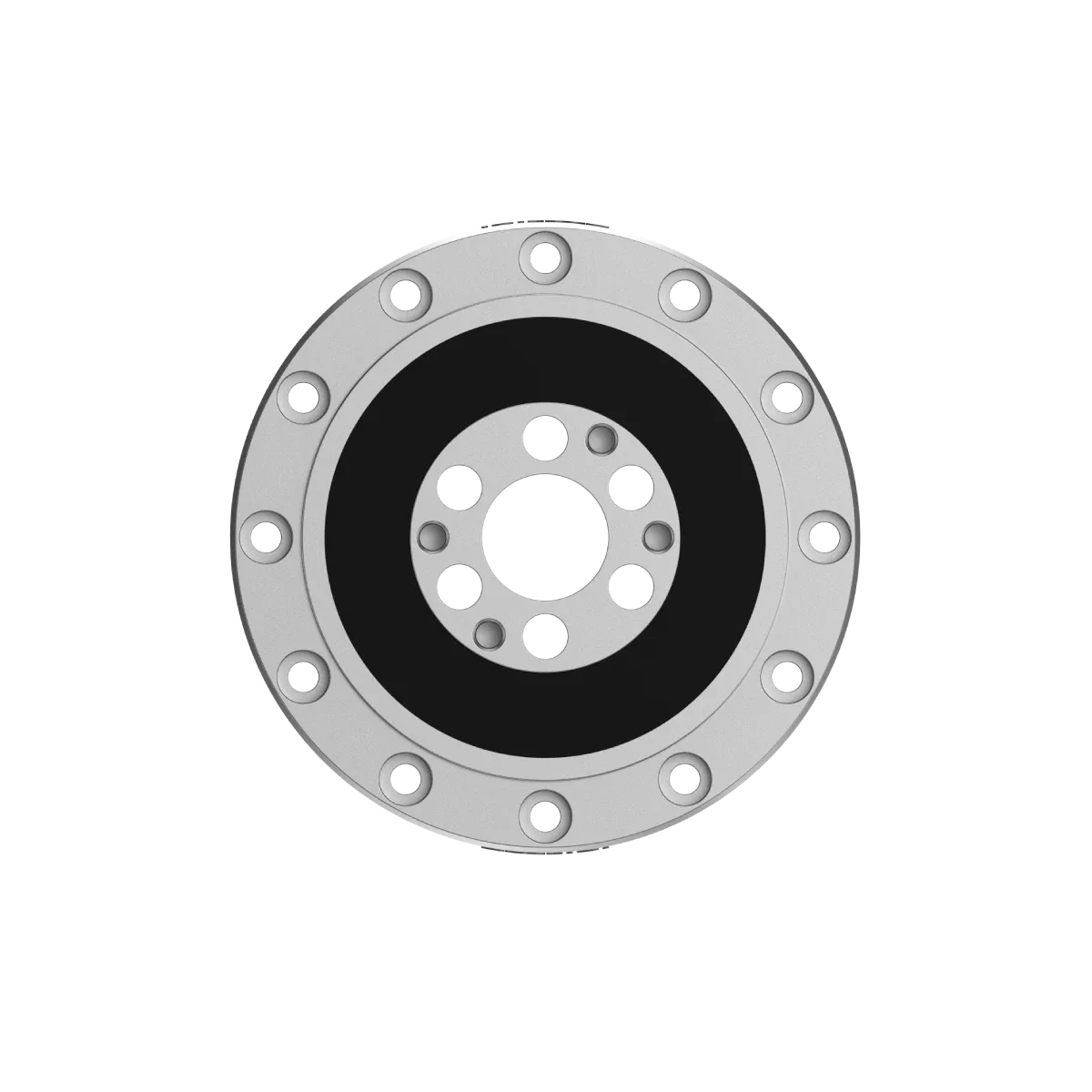

PX3Q-60 is a Hall-effect three-axis joint torque sensor for robot joint feedback. This version uses CAN communication.

Model
PX3Q-60 CAN
Category
Sensors and machine vision, Components, Sensors & Perception
Product stage
Commercial

Product family: PX3Q-60

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Combined accuracy

0.5 % FS

Manufacturer specification

Configuration: PX3Q family specification for this named SKU; Manufacturer family specification. Starred performance values are PaXini laboratory data; custom protection is not standard IP67/IP68.

PaXini AI 帕西尼 - 官方网站 | PaXini
综合准确度 0.5 %FS*

Communication interface

CAN

Manufacturer specification

Configuration: CAN; Manufacturer specification; no independent measurement.

购买PX3Q - PaXini帕西尼商城
"spec": "PX3Q-60(CAN通讯)",

Diameter

60 mm

Manufacturer specification

Configuration: PX3Q-60; Manufacturer specification; no independent measurement.

购买PX3Q - PaXini帕西尼商城
"spec": "PX3Q-60(CAN通讯)", "name": "关节扭矩传感器", "index": 3, "description": "直径:60mm",

Ingress protection

IP64; IP67/IP68 available by customization

Manufacturer specification

Configuration: PX3Q family specification for this named SKU; Manufacturer family specification. Starred performance values are PaXini laboratory data; custom protection is not standard IP67/IP68.

PaXini AI 帕西尼 - 官方网站 | PaXini
防水防尘能力 IP64 (IP67/IP68 可定制)

Material

Aluminum alloy

Manufacturer specification

Configuration: PX3Q family specification for this named SKU; Manufacturer family specification. Starred performance values are PaXini laboratory data; custom protection is not standard IP67/IP68.

PaXini AI 帕西尼 - 官方网站 | PaXini
材质 铝合金

Maximum overload

300 %

Manufacturer specification

Configuration: PX3Q family specification for this named SKU; Manufacturer family specification. Starred performance values are PaXini laboratory data; custom protection is not standard IP67/IP68.

PaXini AI 帕西尼 - 官方网站 | PaXini
极限过载 300%

Measured torque axes

Mx, My, Mz

Manufacturer specification

Configuration: PX3Q family; Three torque axes; not a claim of three measured force axes.

PaXini AI 帕西尼 - 官方网站 | PaXini
独有三轴扭矩感知 突破传统Mz单轴局限,实现三维力矩同步感知,有效预防关节抗弯过载

Operating temperature

-10 to 80 °C

Manufacturer specification

Configuration: PX3Q family specification for this named SKU; Manufacturer family specification. Starred performance values are PaXini laboratory data; custom protection is not standard IP67/IP68.

PaXini AI 帕西尼 - 官方网站 | PaXini
工作温度 -10 ~ 80 °C

Resolution

0.1 % FS

Manufacturer specification

Configuration: PX3Q family specification for this named SKU; Manufacturer family specification. Starred performance values are PaXini laboratory data; custom protection is not standard IP67/IP68.

PaXini AI 帕西尼 - 官方网站 | PaXini
分辨率 0.1 %FS*

Sampling frequency

1,000 Hz

Manufacturer specification

Configuration: PX3Q family specification for this named SKU; Manufacturer family specification. Starred performance values are PaXini laboratory data; custom protection is not standard IP67/IP68.

PaXini AI 帕西尼 - 官方网站 | PaXini
测量采样频率 1000 Hz*
