Product details

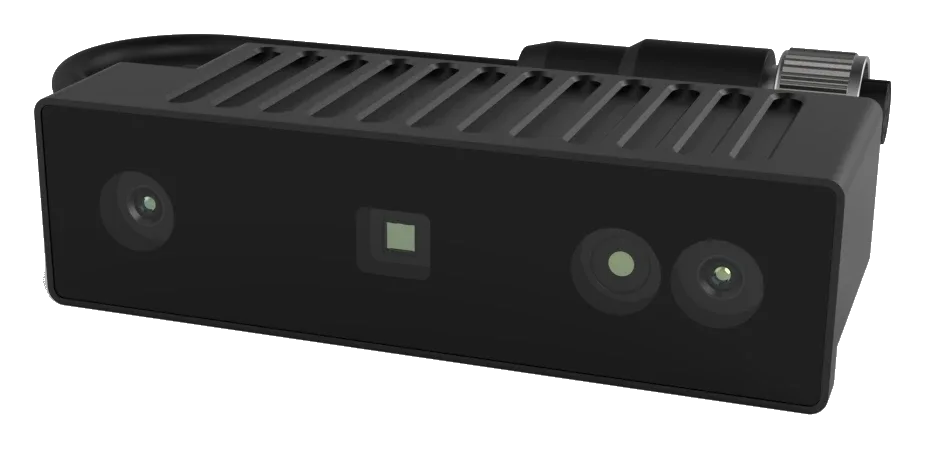

GM463-E1

Sensors and machine vision

Percipio

GM463-E1

About this product

Wide-field Ethernet 3D camera based on infrared active stereo. It provides depth, color and point-cloud outputs for industrial, logistics and robotics applications.

Model
GM463-E1
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cooling method

Passive cooling

Manufacturer specification

GM463-E1-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

30fps@640*400(MAX)

Manufacturer specification

GM463-E1-Percipio.XYZ
Depth Resolution 30fps@640*400(MAX)

Depth technology

Stereo Dot-Pattern Structured Light

Manufacturer specification

GM463-E1-Percipio.XYZ
Technical Principles Stereo Dot-Pattern Structured Light

Dimensions

90 mm x 25 mm x 32 mm

Manufacturer specification

GM463-E1-Percipio.XYZ
Size 90 mm x 25 mm x 32 mm

Field of view

85°/64°

Manufacturer specification

GM463-E1-Percipio.XYZ
FOV(H/V) 85°/64°

Housing material

aluminium alloy

Manufacturer specification

GM463-E1-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

850nm

Manufacturer specification

GM463-E1-Percipio.XYZ
Laser wavelength 850nm

Ip rating

IP65

Manufacturer specification

GM463-E1-Percipio.XYZ
Ingress Protection IP65

Light source

1 x infrared laser

Manufacturer specification

GM463-E1-Percipio.XYZ
Light source 1 x infrared laser

Mounting

Mechanical fastening (M3 thread)

Manufacturer specification

GM463-E1-Percipio.XYZ
Installation Method Mechanical fastening (M3 thread)

Operating temperature

-10 ℃ ~ 50℃

Manufacturer specification

GM463-E1-Percipio.XYZ
Temperature -10 ℃ ~ 50℃

Output formats

Depth map, colour image, infrared image, point cloud

Manufacturer specification

GM463-E1-Percipio.XYZ
Output image Depth map, colour image, infrared image, point cloud

Power consumption

< 3.5 W

Manufacturer specification

GM463-E1-Percipio.XYZ
Power Consumption < 3.5 W

Sdk

Percipio Camport SDK; supports programming languages such as C, C++, C# and Python

Manufacturer specification

GM463-E1-Percipio.XYZ
Software Development Kit Percipio Camport SDK; supports programming languages such as C, C++, C# and Python

Shutter type

Global

Manufacturer specification

GM463-E1-Percipio.XYZ
Shutter Type Global

Storage temperature

-20 ℃ ~ 55℃

Manufacturer specification

GM463-E1-Percipio.XYZ
Storage temperature -20 ℃ ~ 55℃

Supply voltage

DC 24V ± 20%

Manufacturer specification

GM463-E1-Percipio.XYZ
Supply voltage DC 24V ± 20%

Supported platforms

Linux/Windows/ROS

Manufacturer specification

GM463-E1-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

135g

Manufacturer specification

GM463-E1-Percipio.XYZ
Weight 135g
