Product details

VMD02-5011

Sensors and machine vision

Percipio

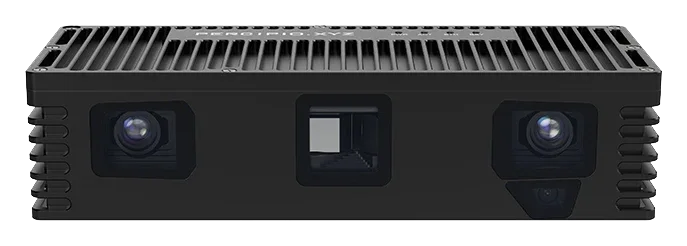

VMD02-5011

About this product

Fringe/phase structured-light 3D camera for industrial depth sensing at short working distances. Blue illumination and a Gigabit Ethernet interface support point-cloud integration.

Model
VMD02-5011
Category
Sensors and machine vision, Components
Product stage
Commercial

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Cooling method

Passive cooling

Manufacturer specification

VMD02-5011-Percipio.XYZ
Cooling method Passive cooling

Depth resolution

up to 1.14FPS @ 2048 x 1536 /1024 x 768 / 512 x 384

Manufacturer specification

VMD02-5011-Percipio.XYZ
Depth Resolution up to 1.14FPS @ 2048 x 1536 /1024 x 768 / 512 x 384

Depth technology

Dual-camera + structured light

Manufacturer specification

VMD02-5011-Percipio.XYZ
Technical Principles Dual-camera + structured light

Dimensions

268 mm x 105 mm x 65 mm

Manufacturer specification

VMD02-5011-Percipio.XYZ
Size 268 mm x 105 mm x 65 mm

Field of view

max 51°/41°±3°

Manufacturer specification

VMD02-5011-Percipio.XYZ
FOV(H/V) max 51°/41°±3°

Housing material

aluminium alloy

Manufacturer specification

VMD02-5011-Percipio.XYZ
Housing Material aluminium alloy

Illumination wavelength

635 nm (red light)

Manufacturer specification

VMD02-5011-Percipio.XYZ
Laser wavelength 635 nm (red light)

Ip rating

IP65

Manufacturer specification

VMD02-5011-Percipio.XYZ
Ingress Protection IP65

Light source

laser

Manufacturer specification

VMD02-5011-Percipio.XYZ
Light source laser

Mounting

Mechanical fastening

Manufacturer specification

VMD02-5011-Percipio.XYZ
Installation Method Mechanical fastening

Operating temperature

0 ~ 40℃

Manufacturer specification

VMD02-5011-Percipio.XYZ
Temperature 0 ~ 40℃

Output formats

Depth map, greyscale image, point cloud

Manufacturer specification

VMD02-5011-Percipio.XYZ
Output image Depth map, greyscale image, point cloud

Power consumption

≤ 24 W

Manufacturer specification

VMD02-5011-Percipio.XYZ
Power Consumption ≤ 24 W

Sdk

Vcamera + Camport4

Manufacturer specification

VMD02-5011-Percipio.XYZ
Software Development Kit Vcamera + Camport4

Shutter type

Global

Manufacturer specification

VMD02-5011-Percipio.XYZ
Shutter Type Global

Storage temperature

-10 ℃ ~ 55℃

Manufacturer specification

VMD02-5011-Percipio.XYZ
Storage temperature -10 ℃ ~ 55℃

Supply voltage

DC 24 V ~ 48 V

Manufacturer specification

VMD02-5011-Percipio.XYZ
Supply voltage DC 24 V ~ 48 V

Supported platforms

Linux/Windows/ROS

Manufacturer specification

VMD02-5011-Percipio.XYZ
Host operating system Linux/Windows/ROS

Weight

2080g

Manufacturer specification

VMD02-5011-Percipio.XYZ
Weight 2080g
