Product details

LTC-0020D

Motion control and actuation

LH-TC

LTC-0020D

About this product

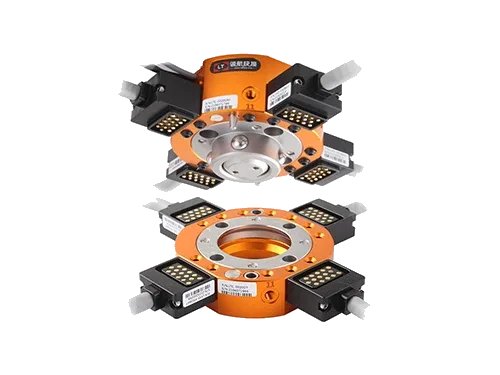

LTC-0020D is an automatic robot tool changer from LH-TC. The master plate mounts to the robot and the tool plate to the end effector. The published load, locking force and static moment limits apply to this model; optional transfer modules are acquired separately.

Model
LTC-0020D
Category
Motion control and actuation, Components, Grippers & End Effectors

Specifications & evidence

Source-backed claims. Configuration, workload and evidence type matter when comparing products.

Allowable bending moment

58.6 N·m

Manufacturer specification

Exact model parameter table. Static limit.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
静态容许弯矩 Allowable static moment 58.6N·m

Allowable torque

80 N·m

Manufacturer specification

Exact model parameter table. Static limit.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
静态容许扭矩 Allowable static torque 80N·m

Ambient humidity

0-95 % RH

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
环境湿度 Humidity 0-95%

Body material

Aluminum alloy

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
本体 Main body 铝合金 Aluminum alloy

Combined thickness

57 mm

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
连接时厚度 Combined thickness 57mm

Envelope dimension

Diameter 85 mm

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
外形尺寸 Dimension Φ85mm

Locking force

2,514 N

Manufacturer specification

Exact model parameter table. At 0.49 MPa air pressure.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
锁紧力(当气压0.49Mpa时)Locking force 2514N

Locking material

Alloy steel

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
锁紧机构 Locking mechanism 合金钢 Alloy steel

Locking mechanism

Steel-ball locking

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
锁紧机构 Locking mechanism 钢珠锁紧 Locking steel ball

Master mass

0.7 kg

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
主盘侧 Master side 0.70kg

Master order code

F01030002

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
主盘 Master plate F01030002

Maximum pneumatic pressure

0.8 MPa

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
最大耐压 Max pressure 0.8Mpa

Operating air pressure

0.4 to 0.8 MPa

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
工作驱动压力 Air pressure for working 0.4~0.8Mpa

Operating temperature

0-60 °C

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
环境温度 Temperature 0-60℃

Payload

20 kg

Manufacturer specification

Exact model parameter table. Recommended payload; does not by itself establish a dynamic acceleration profile.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
负载 Payload capacity 20kg

Pneumatic ports

12 x M5

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
气路通道 Pneumatic port 12 x M5

Position repeatability

0.02 mm

Manufacturer specification

Exact model parameter table. Stated as ± value; measurement protocol not specified.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
位置重置精度 Position repeatability ±0.02mm

Tool mass

0.3 kg

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
工具侧 Tool side 0.30kg

Tool order code

F01030006

Manufacturer specification

Exact model parameter table.

LTC-0020D 机器人工具快换装置-郑州领航机器人有限公司
工具盘 Tool plate F01030006
